Provide a robust, PLC-based lighting control system for a power plant environment (boiler halls, turbine halls, control yard, service roads) that remains reliable despite strong magnetic fields and high EMI near generators and transformers. Use isolator controllers and hardened PLC equipment to ensure normal operation without affecting plant processes.
Core Components
- PLC Concentrator / Gateway (in Control Room) — injects/receives PLC signals onto plant feeders; connects to local SCADA, operator HMI, and optional Cloud/App. Keep this in a low-EMI control room.
- Isolator Controller(s) — segment long feeders and create PLC line traps to block/attenuate noise propagation; provide local maintenance bypass.
- PLC Loop Controller(s) — manage groups of fixtures on a loop (8–32 fixtures), aggregate telemetry, and perform local scheduling.
- PLC Light Dimmer Switch (industrial-rated) — addressable dimming per luminaire with high-EMI tolerance.
- LED Luminaires (shielded / industrial-rated) — fixtures designed for high ambient interference, with robust drivers and proper shielding.
- Optional: Local Autonomous Controllers & Safety Relays — ensure critical safety/emergency circuits operate independently of PLC communications.
- Surge Protection, Ferrite Filters, Line Traps, and Shielded Enclosures — critical for EMI resilience.
- Control Room HMI / SCADA / Mobile App — for scheduling, remote control, alarms, and firmware management.

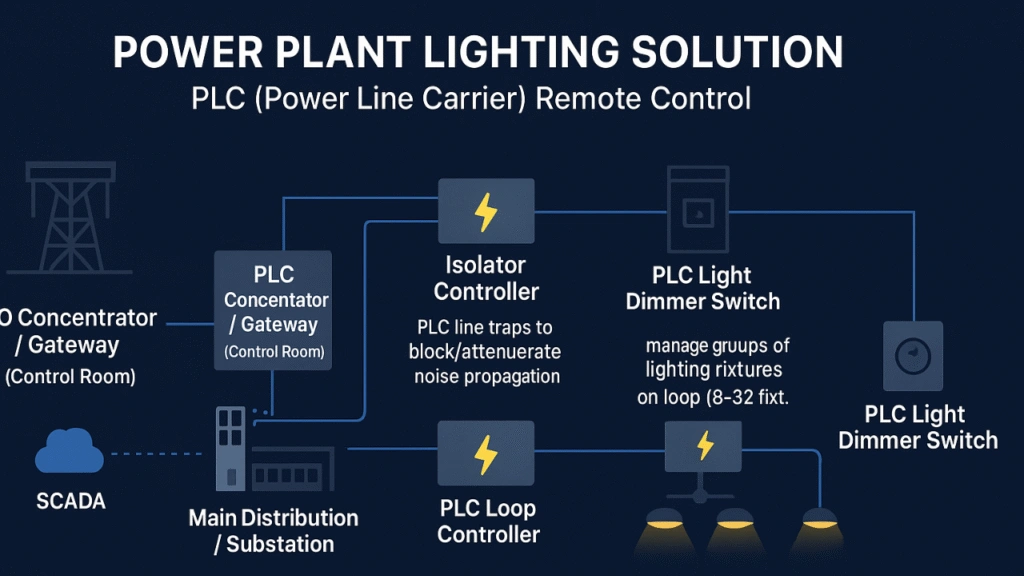

Architecture & Wiring (see diagram)
Main Distribution/Substation feeds both power plant equipment and the lighting circuits. The PLC concentrator sits in the control room where EMI is low.
From concentrator, PLC signals are injected onto main feeders. Isolator controllers are installed at strategic points (near generators, transformers) to segment and protect PLC signals.
Each isolator feeds one or more PLC loop controllers, which serve local fixtures via existing power conductors (L/N). Use line traps/coupling filters at isolator boundaries.
Shielded enclosures (mu-metal or equivalent) house PLC electronics placed near high-field zones when relocation to control room is impossible.
Critical/emergency lighting circuits should have independent hard-wired control (non-dimmable) or local autonomous control to guarantee operation under extreme EMI.
EMI / Strong Magnetic Field Mitigation (main focus)
Place sensitive electronics away from high-field sources: Locate the PLC concentrator, servers, and HMI in the control room or remote building with low magnetic fields.
Use optical fiber for backbone links: Wherever possible use fiber between control room, concentrator, and plant network to remove conductive paths for EMI.
Magnetic shielding for near-field devices: Enclose field-side devices (isolators, loop controllers) in magnetically shielded housings (mu-metal or appropriate alloys) when they must be near generators.
PLC coupling filters & line traps: Install coupling capacitors, line traps, and high-frequency filters at isolator boundaries to minimize PLC carrier attenuation and block EMI ingress.
Ferrite chokes & common-mode filters: Fit these on luminaire leads and controller wiring to reduce conducted emissions and susceptibility.
Hardened industrial PLC modules: Use PLC devices rated for high EMI/industrial environments (conformal coatings, reinforced isolation, extended temperature ranges).
Grounding & surge protection: Implement low-impedance earthing and localized surge protection (SPDs) at feeders and mast/fixture points.
Local autonomous fallback: For safety-critical lighting, use sensor-to-dimmer hardwired control or redundant power relays that operate even if PLC signals are degraded.
Segmentation & redundancy: Use multiple isolator controllers and loop controllers so EMI at one location does not cascade. Dual concentrators or redundant communication paths improve resilience.
Commissioning & tuning: Perform a radio/EMI survey, tune PLC carrier frequency bands, and commission coupling/filter settings following manufacturer guidance.
Program & Control Logic (high-level)
Zones: Boiler Hall, Turbine Hall, Control Yard, Service Roads—each managed by PLC loop controllers.
Scenes: Maintenance, Full Output, Standby, Emergency (Emergency circuits bypass dimming).
Priority Logic: Safety and emergency overrides have top priority; maintenance and energy-saving scenes follow.
Fault Management: Per-node alarms, loop-level metering, and isolation procedures for noisy segments.
Maintenance Operations: Local manual bypass at isolators, scheduled OTA firmware updates in maintenance windows.
