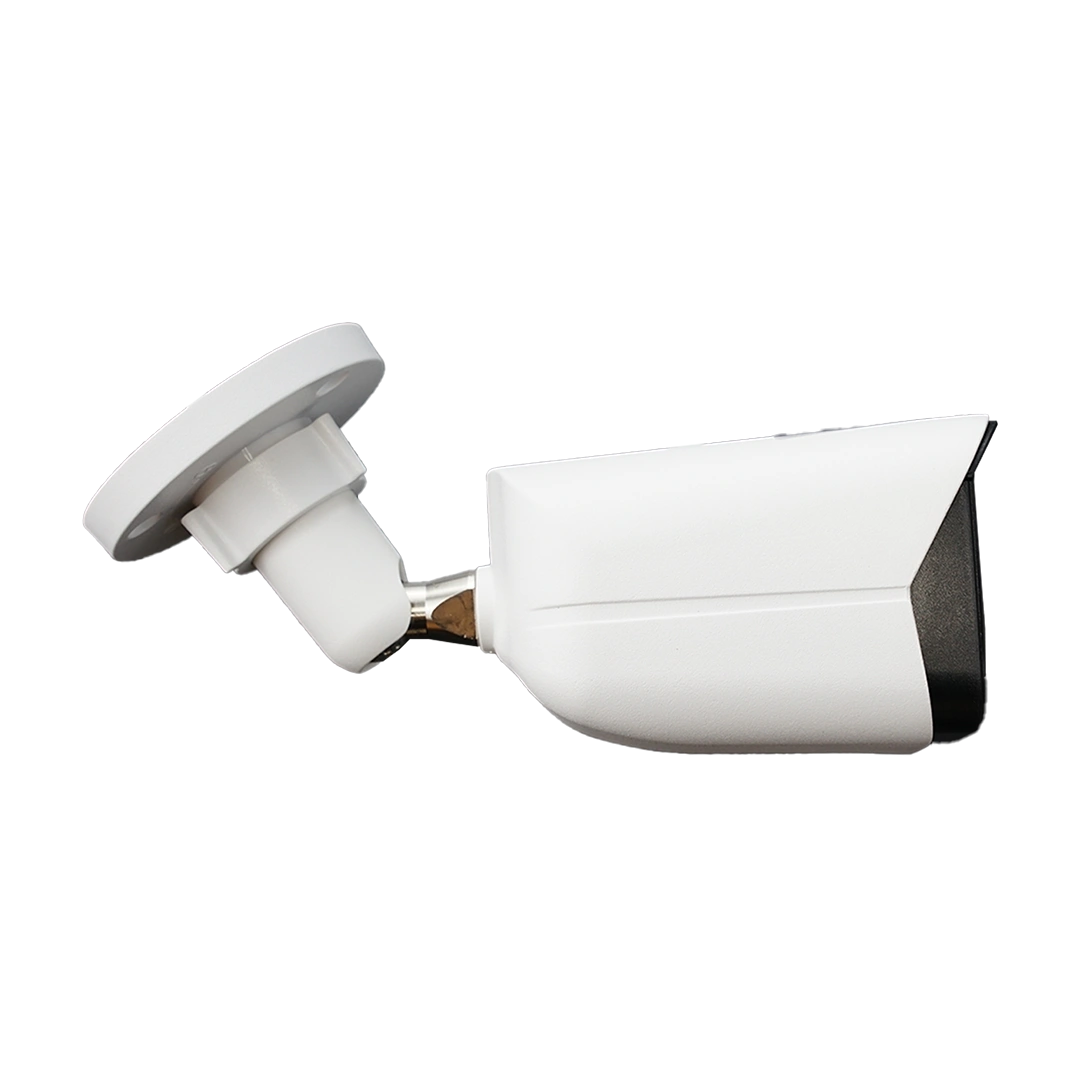

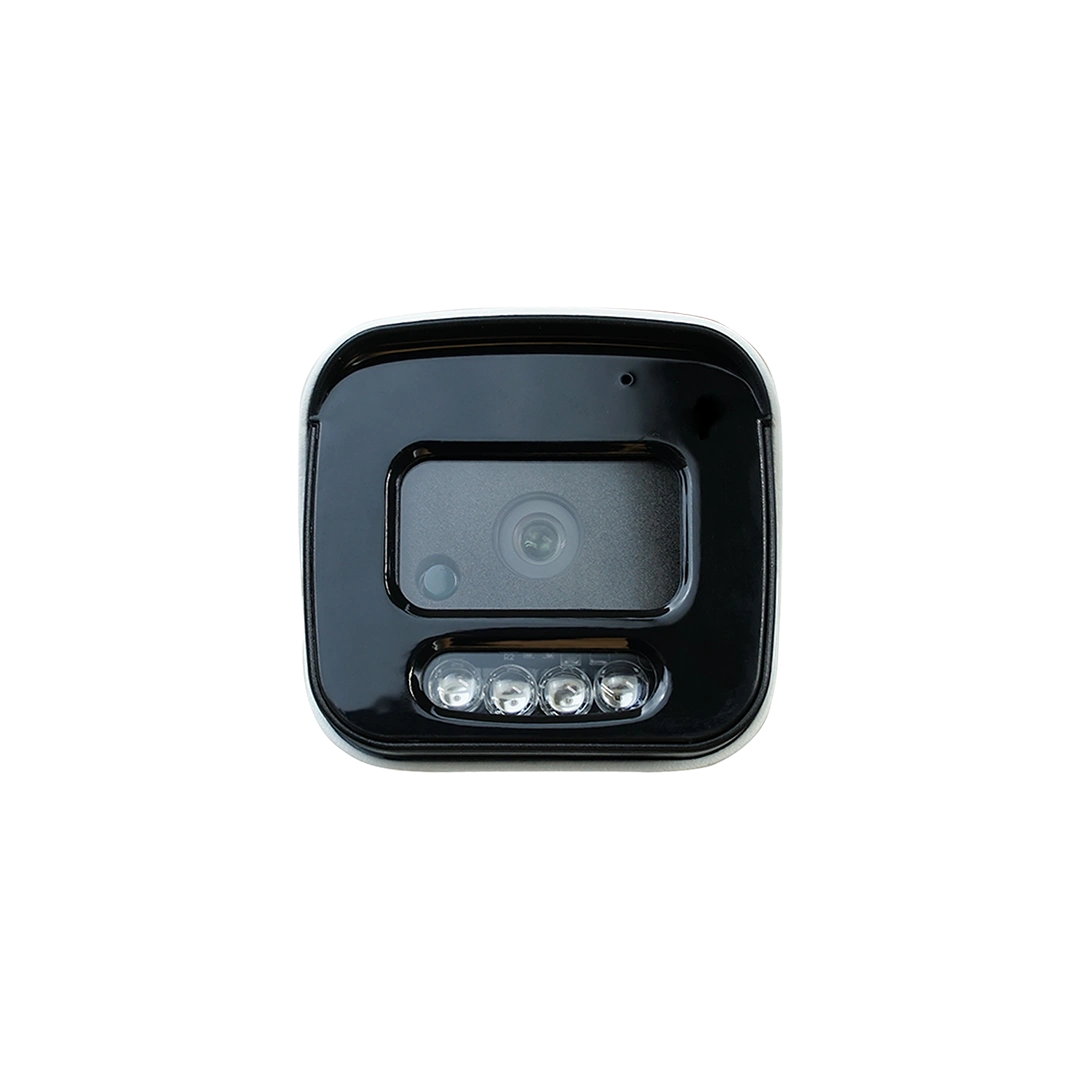

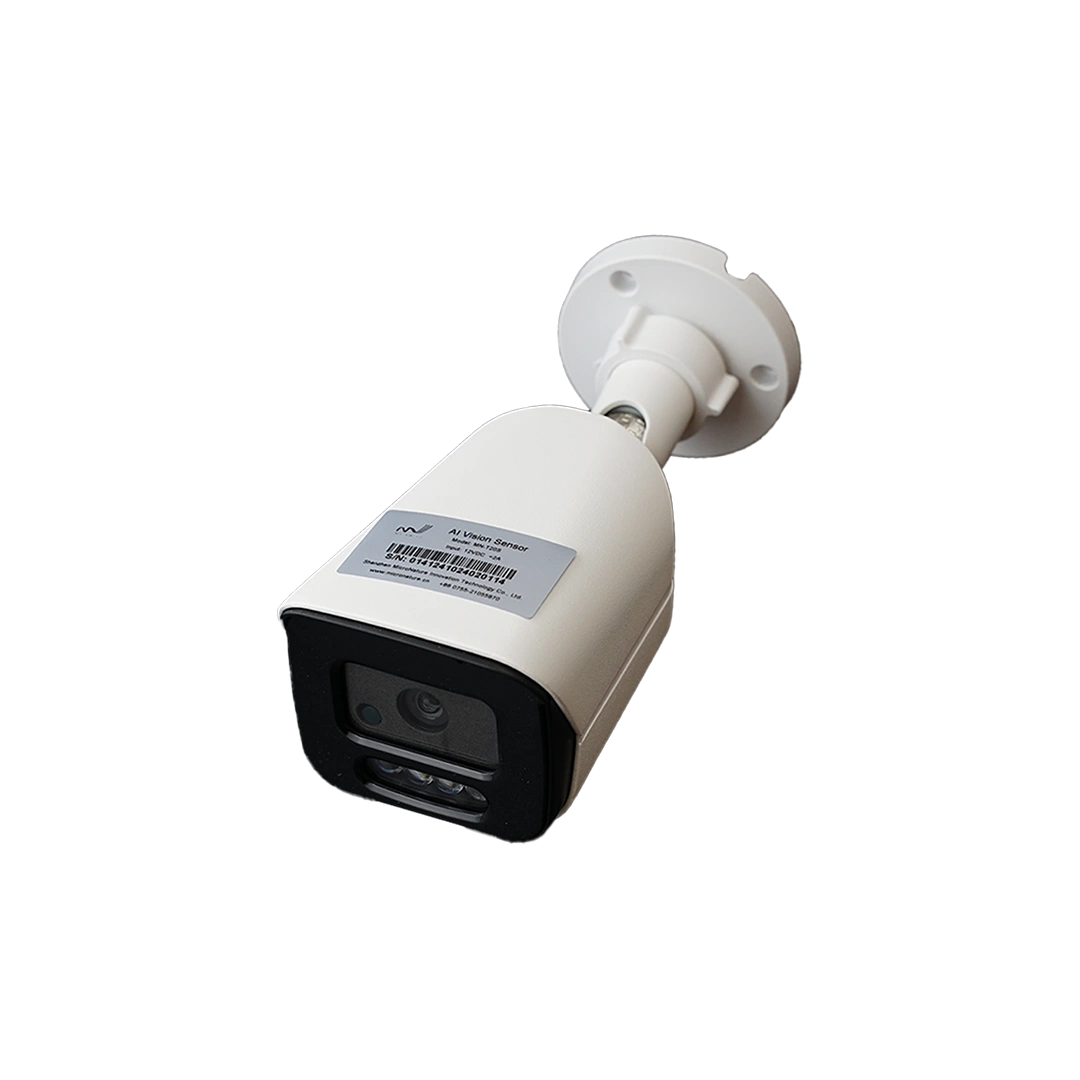

AI Vision Sensor
Adopting low-power AI vision processor, 200W pixel HD image quality, high dynamic HDR H.265 multiplex codec, low latency and small footprint.
IP65 grade waterproof and dustproof, IK10 grade explosion-proof design, AI arithmetic power 0.5T~ 1T, support for multiple frames, support for human-vehicle recognition function. Widely adapted to road, industrial, car park light scenes, support algorithm customisation.
With the advantages of not being affected by temperature, humidity, noise, airflow, dust, light, etc., it is suitable for harsh environments.
Product Advantage
- Human-vehicle intelligent recognition
- Built-in AI algorithm module, supports algorithm customization
- Night vision function
Product Parameters
| Ethernet Port | Adaptive 10/100Mbps with MDIX support. |
| Photosensitive | Sensor dark function. |
| Fill Light | Expandable LED fill light board with white/IR fill light support. |
| System Support | Linux （Support fast start, first valid frame out time < 150ms） |
| Operating Temperature | -20℃~70℃ |
| Operating Voltage | DC12V |
| Operating Current | ≤2A |
| Detection Angle | 60° |
| Mounting Height | 2.5m-20m |
| All-black Detection Distance | 20m |
| Dim Light Detection Distance | 30m |
| Daylight Detection Distance | 100m |

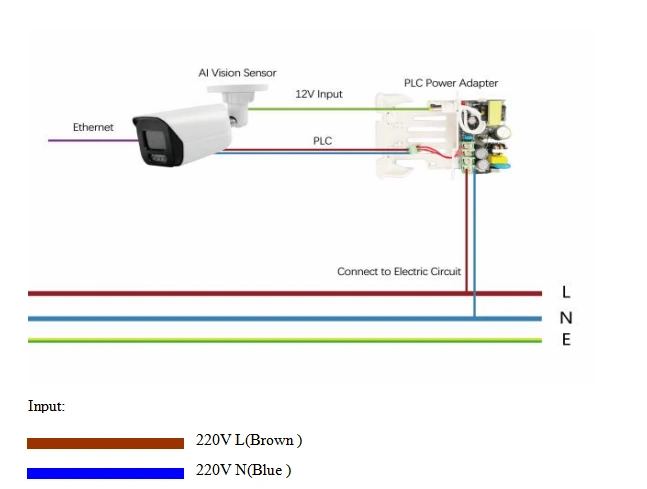

Wiring Method
Algorithm Customization

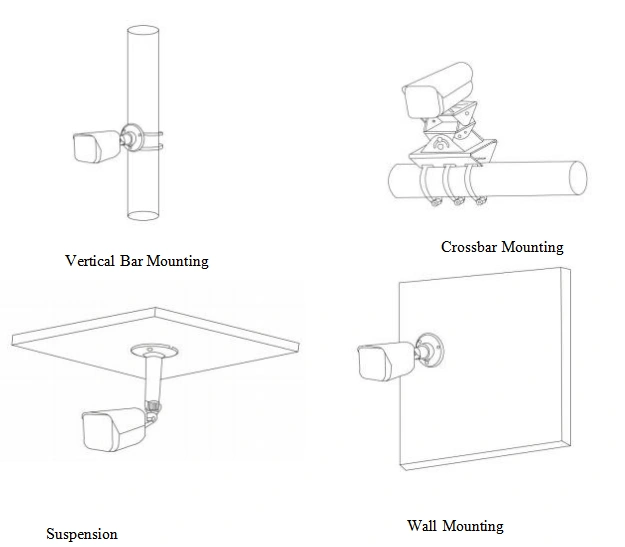

Fix the base plate of the AI vision sensor where it needs to be mounted (the following are examples of 4 mounting scenarios)
Dimension
LWH= 180.5mm x 73.4mmx 67.2mm

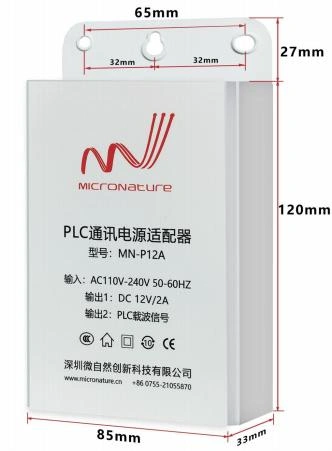

PLC Power Adapter Dimension:LWH=85mm×33mm×147mm
AI Vision Sensor should be used with PLC Power Adapter.
