High-Performance PLC Control Panels

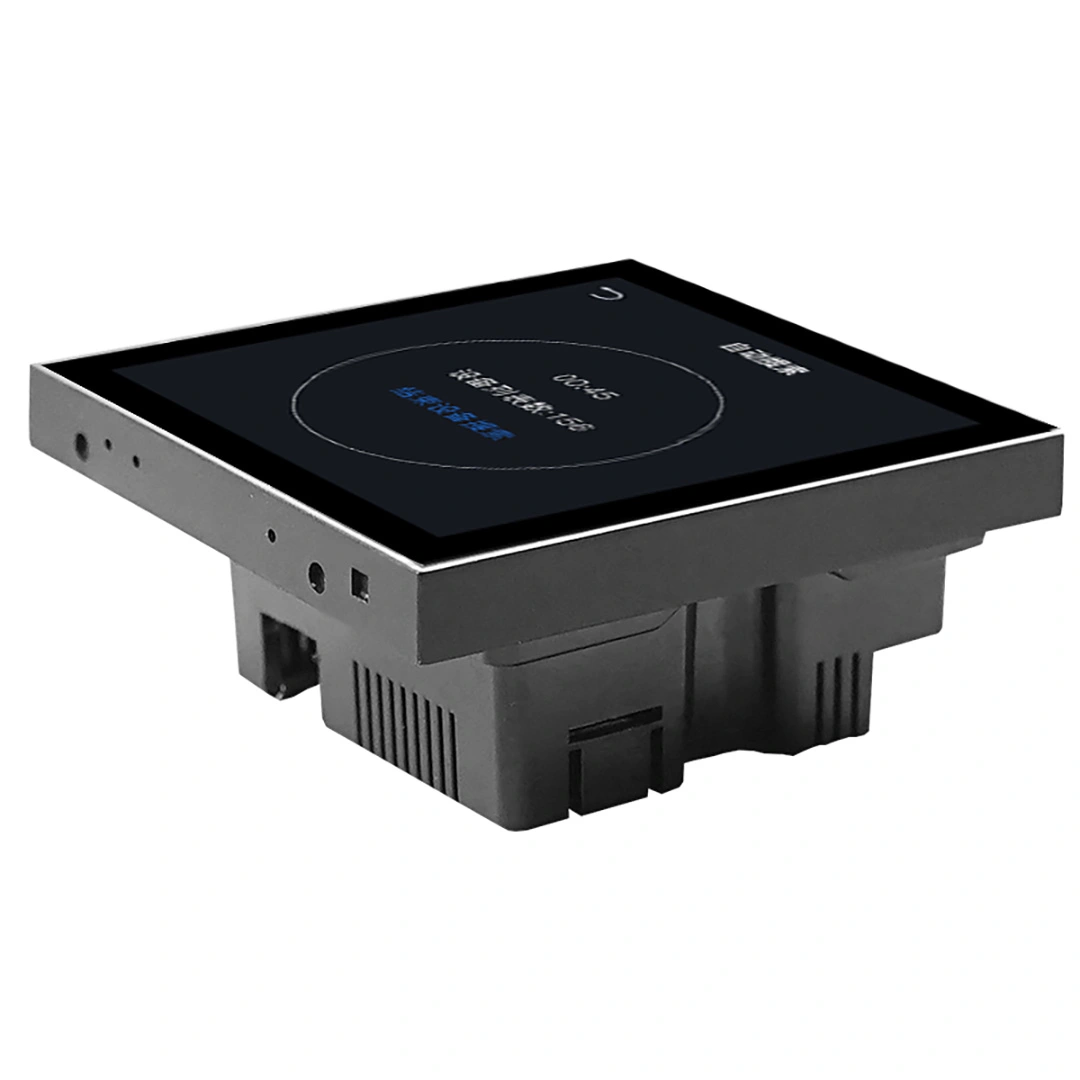

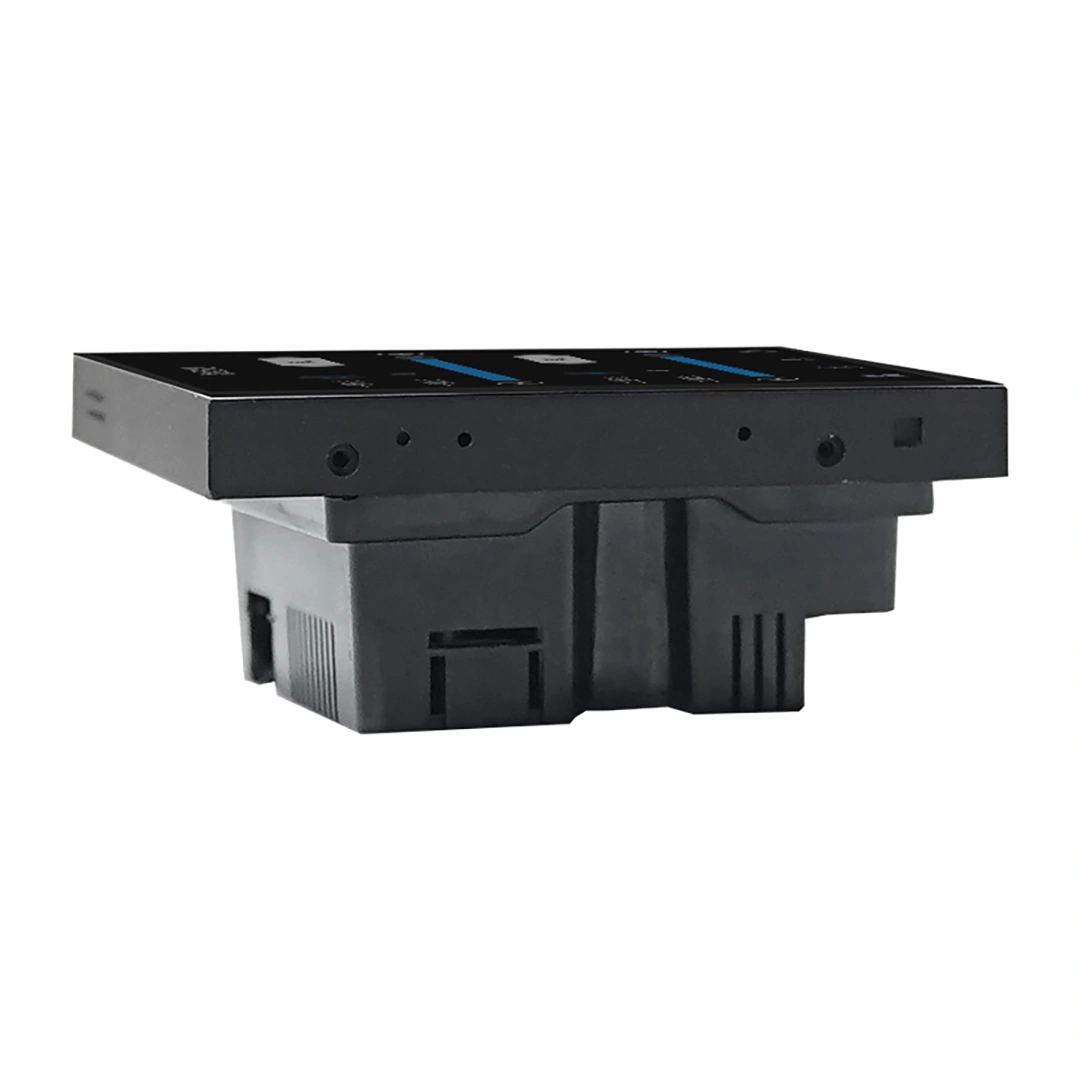

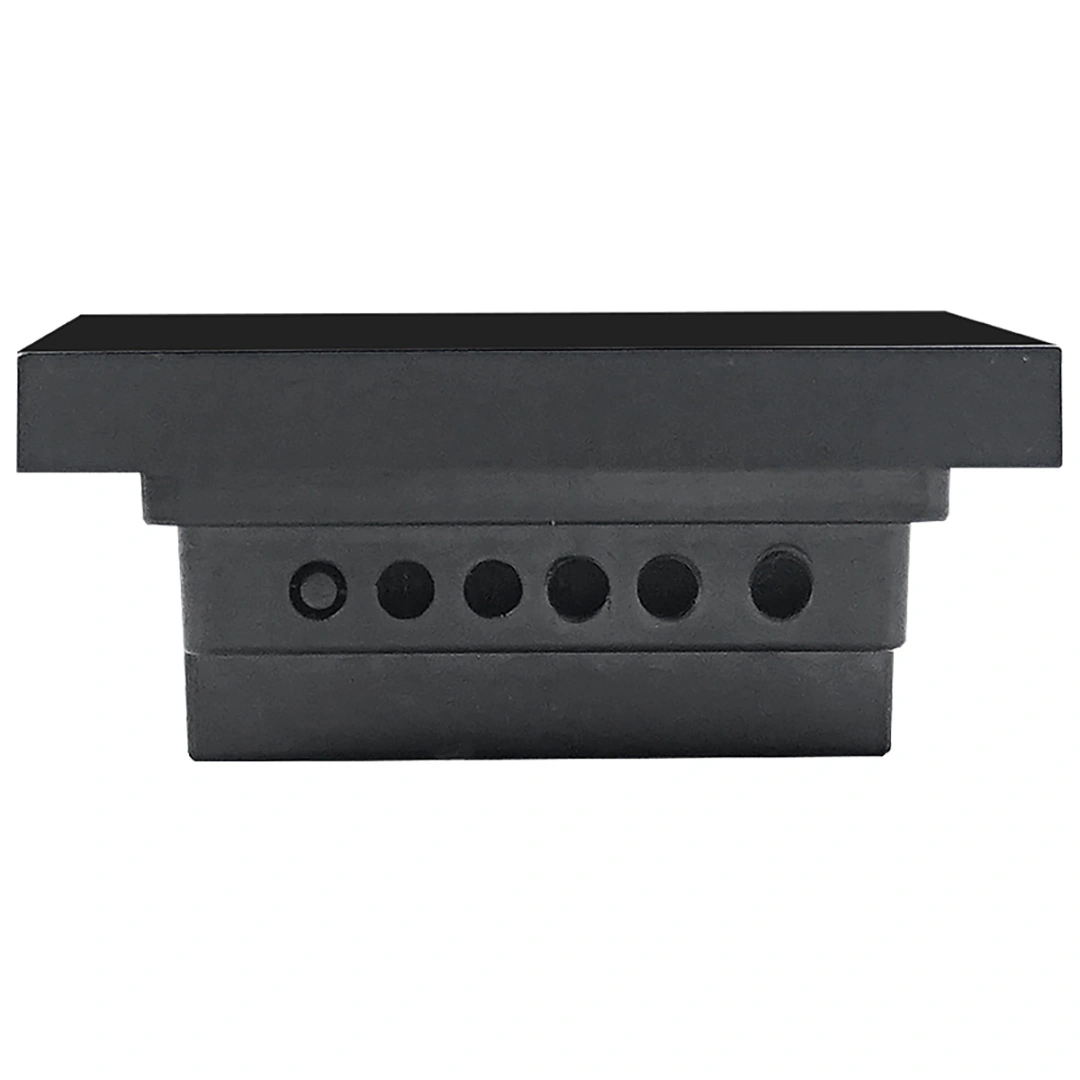

The PLC Central Control Unit serves as the primary intelligent gateway and core processing hub for smart municipal lighting, tunnel automation, and large-scale industrial facility networks. Developed by expert engineers with over 10 years of focus on advanced Power Line Communication (PLC) technology, this device transforms existing electrical infrastructure into a bidirectional, high-speed data network.

Unlike traditional logic controller cabinets or standard wiring enclosures, our high-integration plc control panels embed the central control unit to eliminate the need for dedicated communication cabling (like DALI signal wires) or vulnerable wireless links. It transmits command packets and receives telemetry data directly through existing copper power lines, ensuring 99.99% communication stability even in high-EMI (electromagnetic interference) environments.

PLC Control Panels Key Features & Capabilities

• Zero-Cabling Data Transmission (PLC-IoT): Transmits control signals and monitors electrical loops directly via existing city or facility power cables, slashing infrastructure wiring costs and installation time.
• Massive Node Capacity & Long Range: A single control unit acts as a localized hub, supporting a point-to-point communication distance of up to 2 km and seamlessly managing up to 499 downstream network nodes (such as street light controllers or drivers).
• Dual-Layer Interference Suppression: Features robust built-in noise immunity and integrates perfectly with single/three-phase Signal Isolators to maintain pristine data transmission within harsh grid conditions, such as power plant turbine rooms or active shipyards.

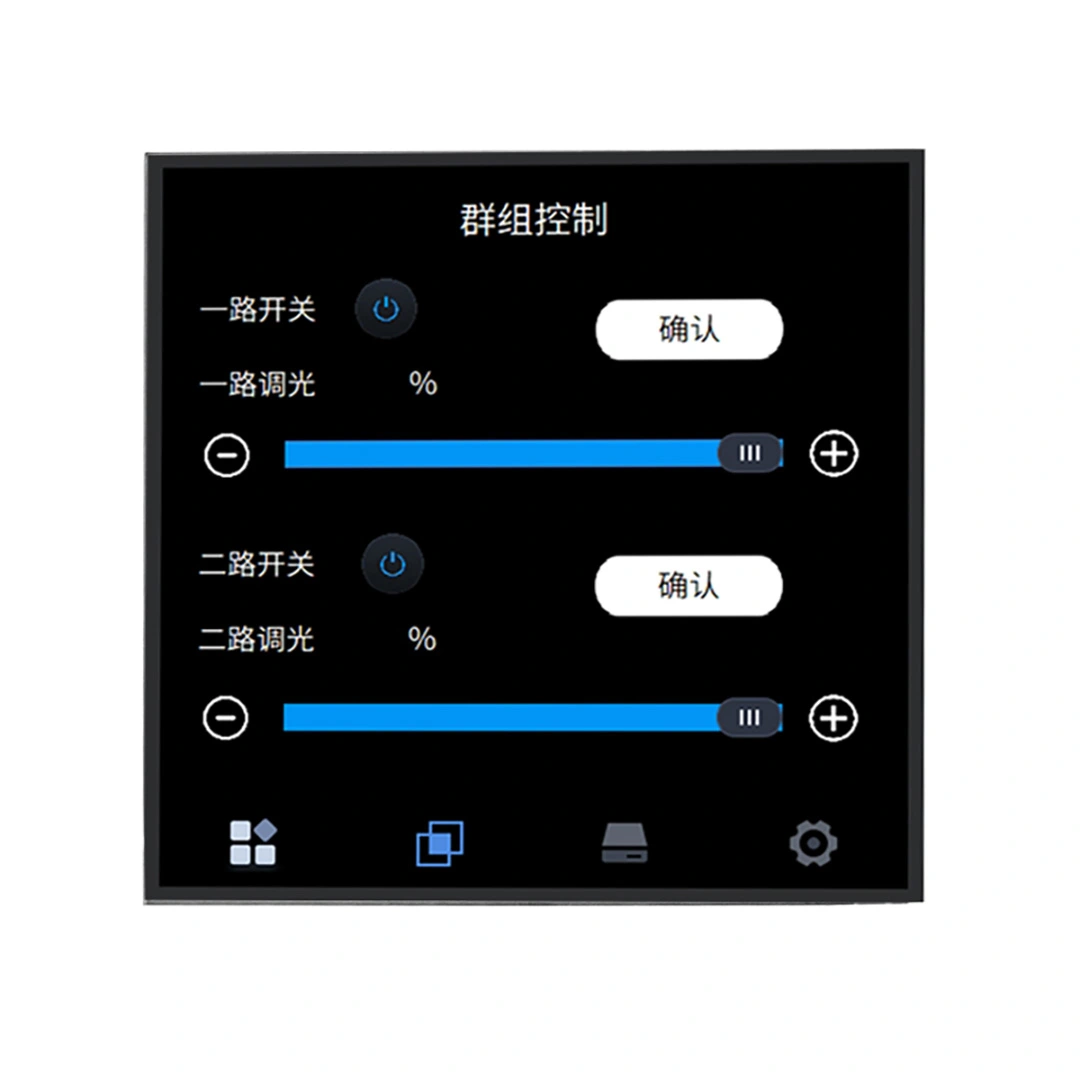

• Centralized Edge Management: Equipped with an intuitive local Human-Machine Interface (HMI) for edge processing, automated scheduling, threshold configurations, and independent loop control.
• Cloud & App Remote Connectivity: Seamlessly links localized plc control panels to central Cloud and mobile App platforms. Operators can monitor real-time lamp statuses, customize dimming programs, and receive immediate fault alarms remotely.

Technical Specifications & System Architecture

Our central control units are engineered for seamless integration by international EPC contractors, system integrators, and project engineers.

Target Applications

• Smart City & Municipal Highway Grids: Upgrades massive street lighting networks without expensive excavation or communication rewiring, facilitating over 50% energy savings through cloud scheduling.
• Long-Distance Tunnel Automation: Bypasses concrete structural wireless decay (where LoRa or Cat.1 signals fail) by keeping data locked safely inside the tunnel's physical power lines.
• High-Interference Heavy Industry: Provides continuous 24/7 node tracking inside power plants, logistics warehouses, and factories where strong magnetic fields disrupt standard wireless or signal-wired protocols.

Installation, Operation & Compliance

To ensure rapid site commissioning, each PLC Central Control Unit deployment includes comprehensive hardware mounting schematics, software configuration guides for network mapping, and detailed user manual PDFs.

Our hardware manufacturing adheres to the highest international quality and safety benchmarks, carrying official UL Certification, CE Marking, and CSA Certification for global market deployment. All internal architectures are strictly compliant with RoHS, REACH, and FCC standards, guaranteeing non-hazardous and electronically secure operations across any smart infrastructure network worldwide.
