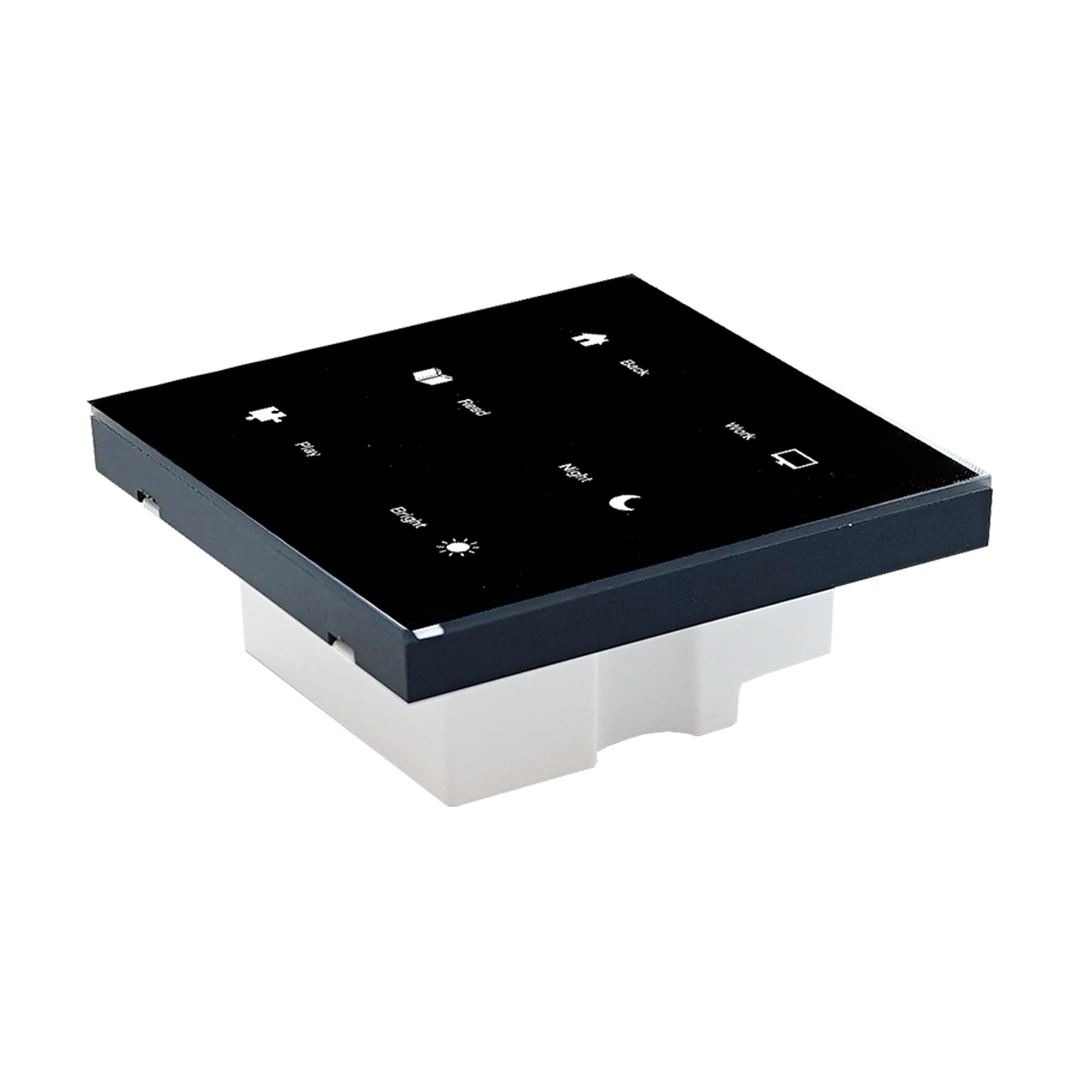

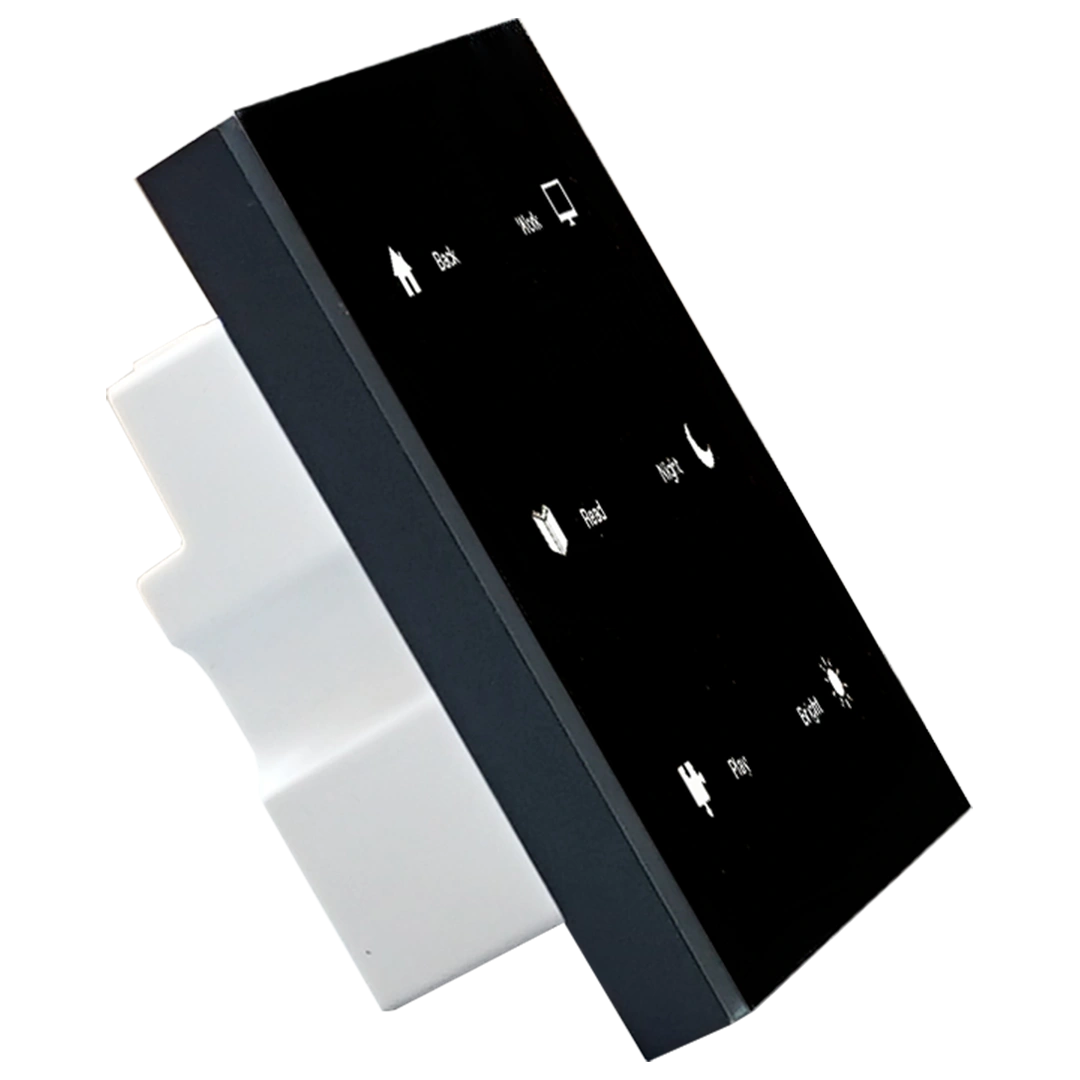

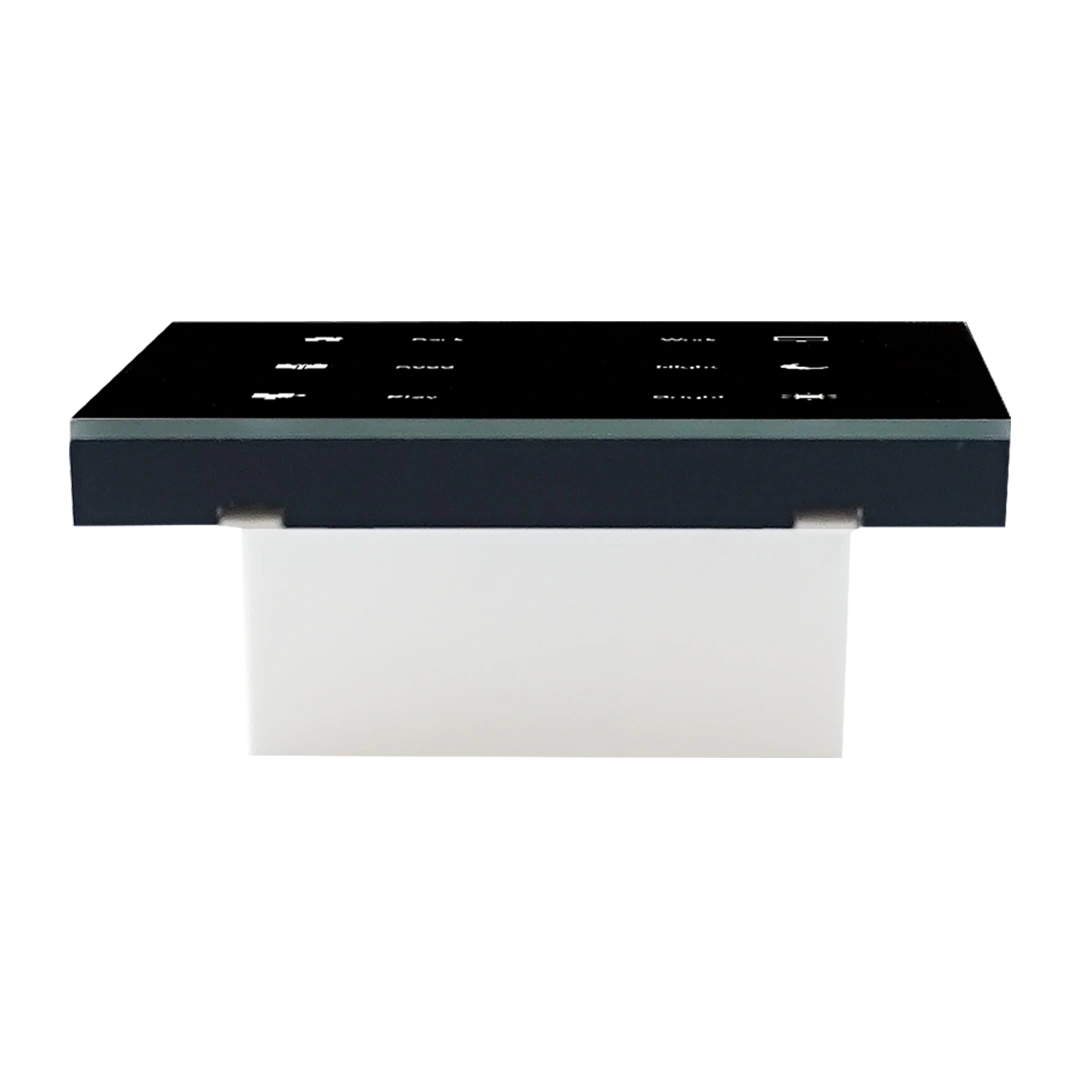

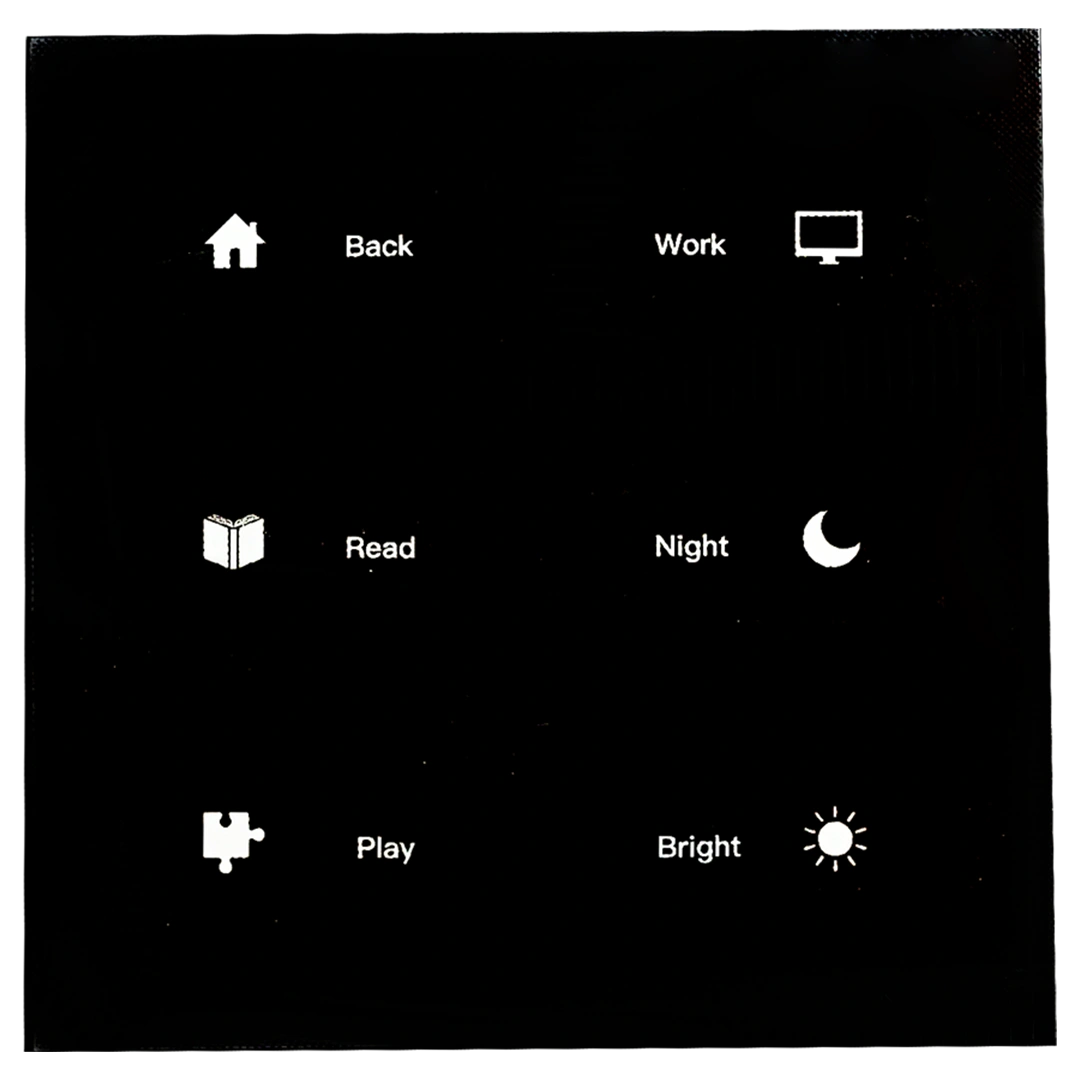

Lighting Control Panel
Touch-Sensitive Glass Panel Switch for Smart Lighting
Developed by Shenzhen MicroNature Innovation Technology Co., Ltd., this touch-sensitive glass panel switch is designed for commercial lighting, venue illumination, and home applications. It features advanced AG (anti-glare) glass technology and a frameless, ultra-slim design that blends seamlessly into any modern interior.
When illuminated, the panel creates deep, mysterious light effects reminiscent of black sunglasses, offering both aesthetic elegance and intuitive touch control. The result is a refined lighting experience that transforms ordinary illumination into an artistic and interactive journey.
Ideal for smart homes, luxury hotels, offices, and showrooms, this product combines style, functionality, and innovation to elevate any lighting environment.
Product Advantage
Mirror key, touch control execution
- Fast installation: where there is electricity, there is network, standard base box embedded, simple and fast installation
- Plug and play: no scene configuration is required, just install, power on and network
- Scenario customization: Supports scenario customization, or you can use the default scenario
- Composite switch: Switch and scene control can be switched at will
- Remote control: The on/off status of the switch can be controlled remotely through the platform configuration scenario.
- Linking control: It can be linked with other intelligent devices to realize control in various scenarios.
- Panel color: classic black and white, support color customization
- Product size: 86*86*35mm (length * width * height)
Product Parameters
| project | parameter |
| Organization mode | PLC |
| weight | 0.6kg |
| way to install | Standard 86 base box installation |
| material quality | PC/AG glass |
| input voltage | 220-240VAC 50-60Hz |
| working temperature | -20° ~ +50° |
| Humidity at work | 5% ~95%RH (no condensation) |
| Load ranges | Incandescent lamp ≤300W per channel; total power of resistance load ≤900W; LED ≤200W per channel |
| power rating | 300W/ road |
| Standby power | 0.5W |

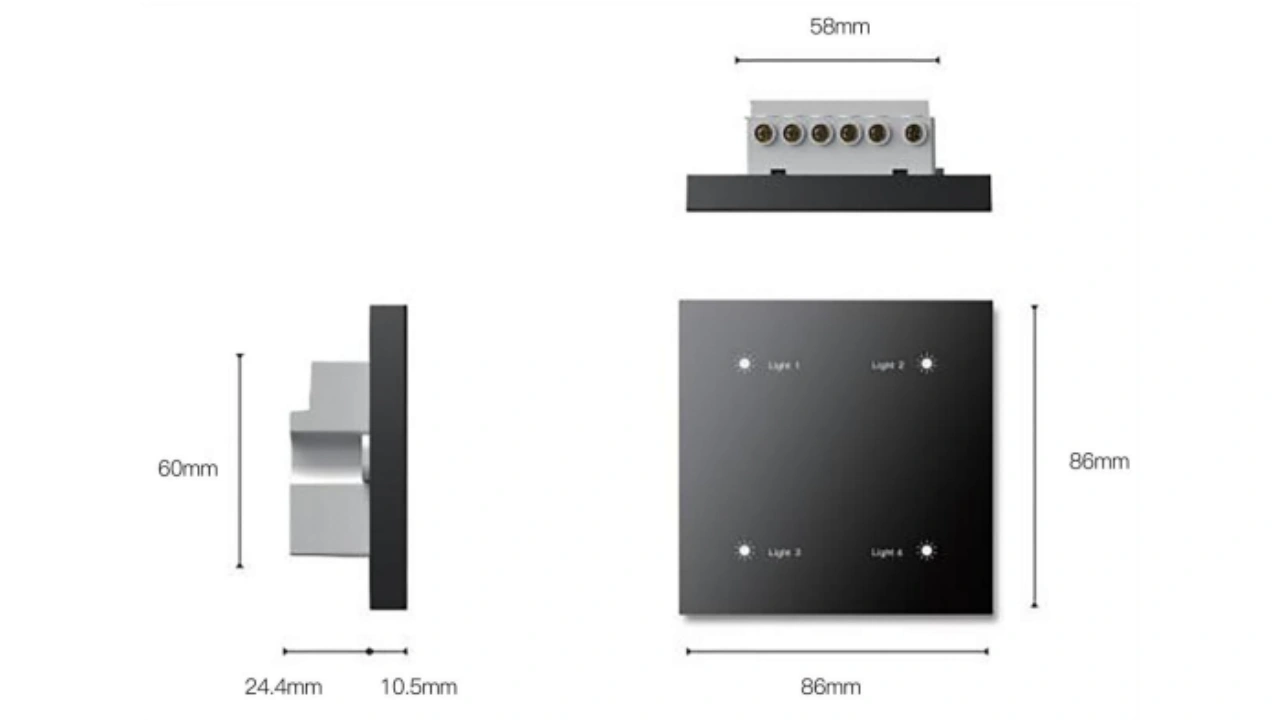

Dimensions

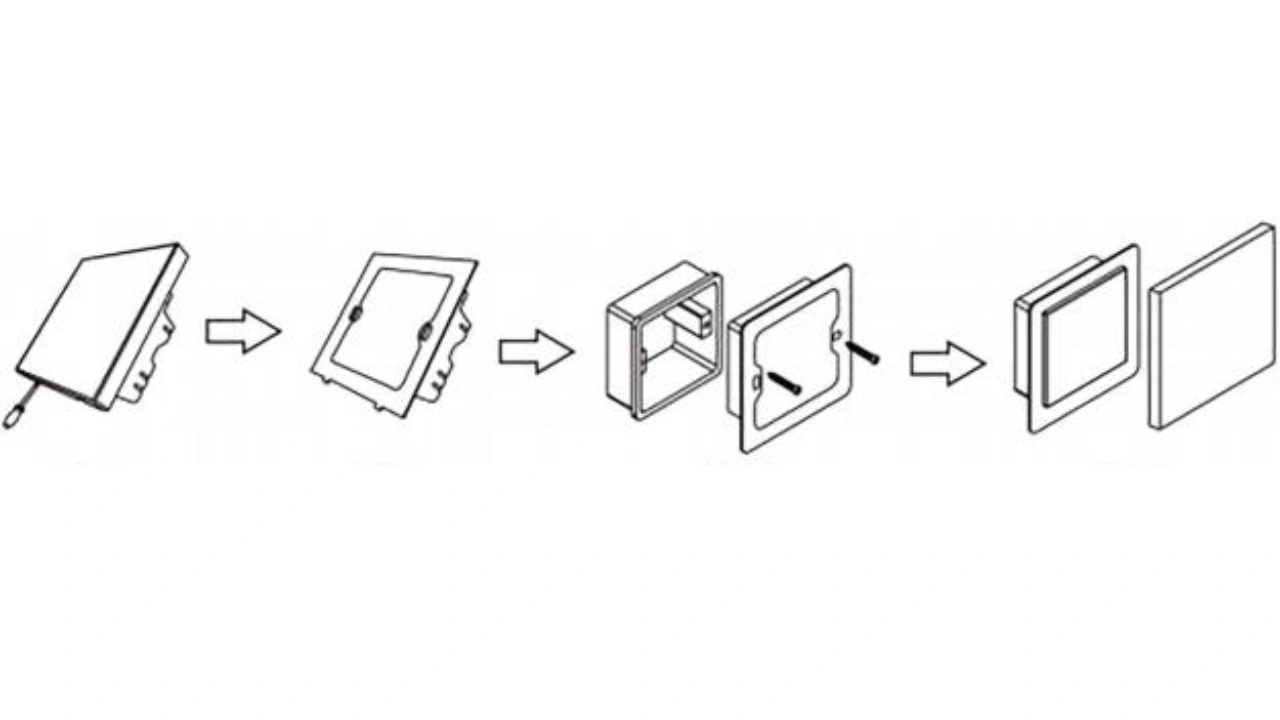

Installation
Ensure that the bottom box is clean and free of debris. Mount the power module on the bottom box and fix it firmly with screws.

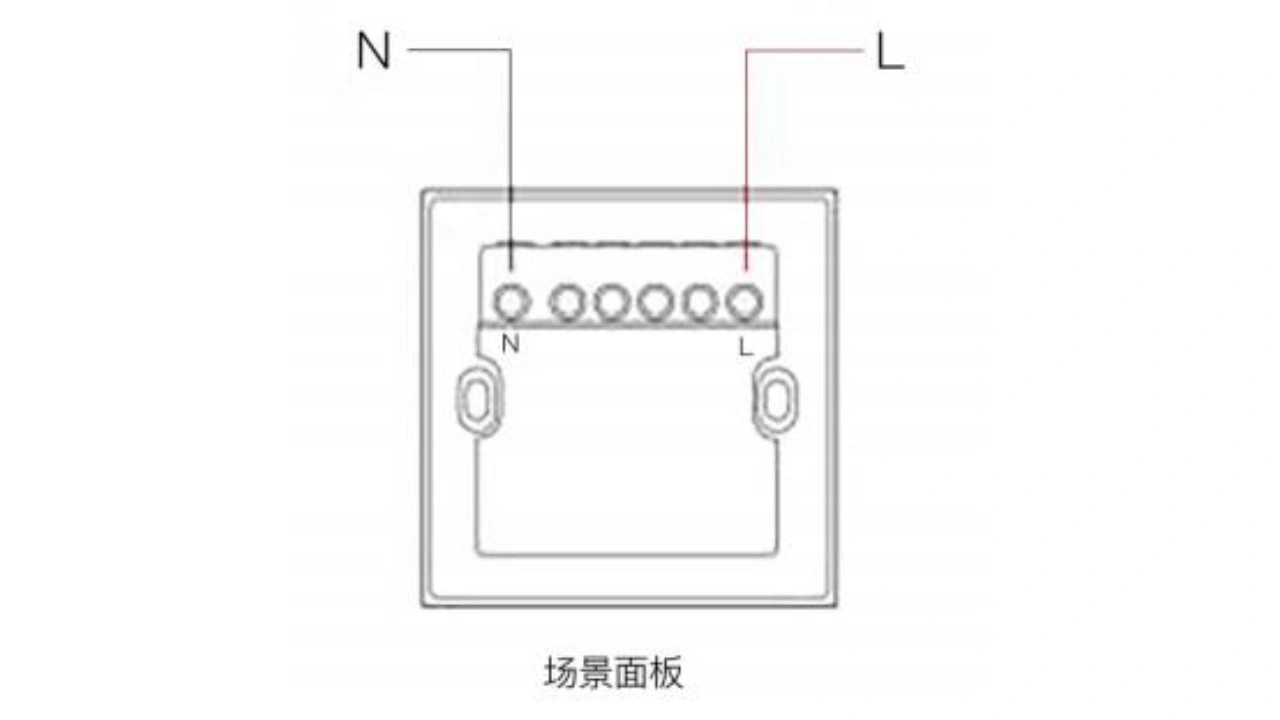

Under the condition that the line is not powered, press the wiring mode shown in the figure and install it into the bottom box.
Note: Do not connect "L" (live wire) and "N" (zero line) wrong to avoid affecting the normal operation of the product.
You Might Also Like
FAQ
1. What is the Touch Glass Panel Switch?
The Touch Glass Panel Switch is a modern lighting control panel featuring AG (anti-glare) glass and touch-sensitive technology. It allows users to easily control lighting with a single touch, combining functionality and aesthetics for smart home and commercial environments.
