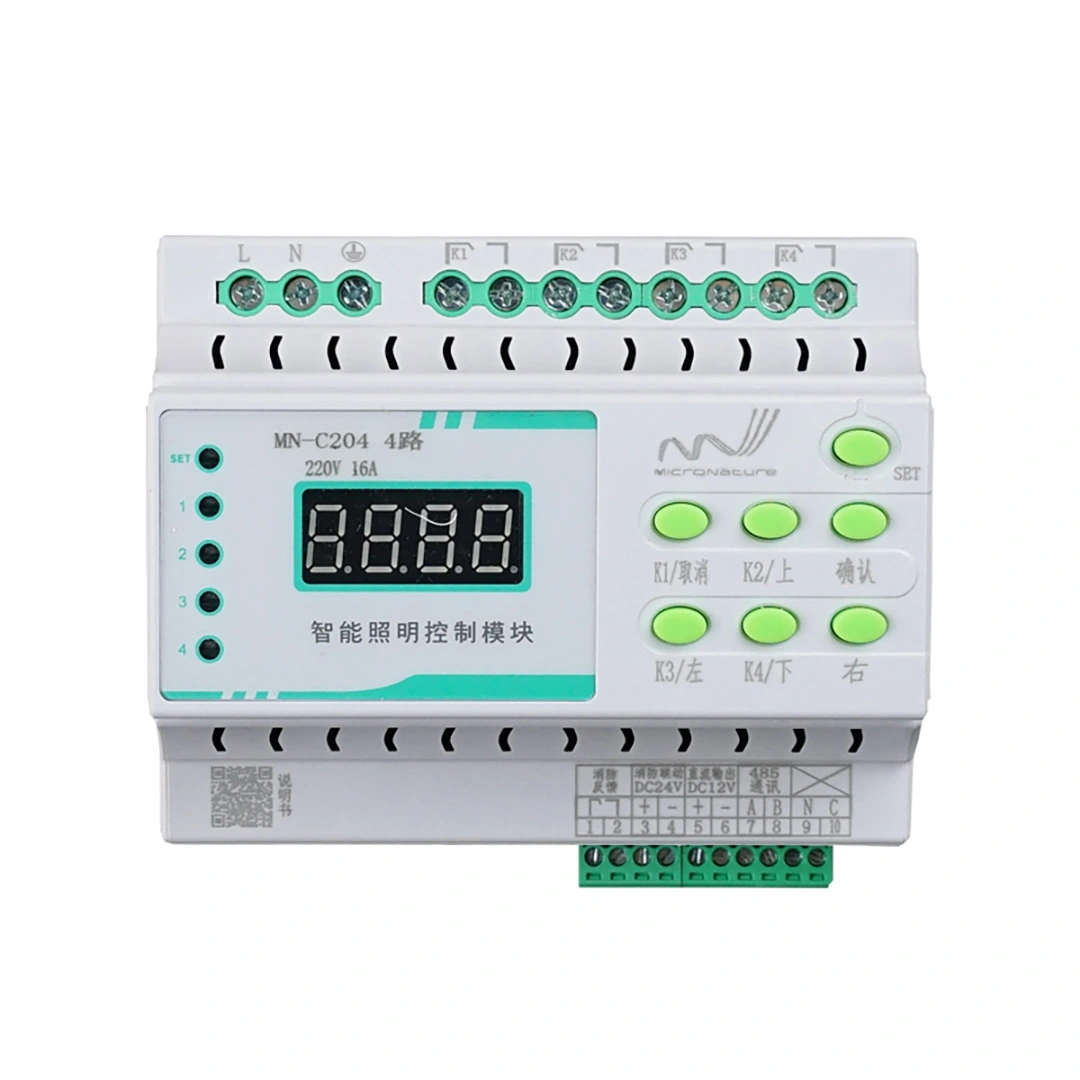

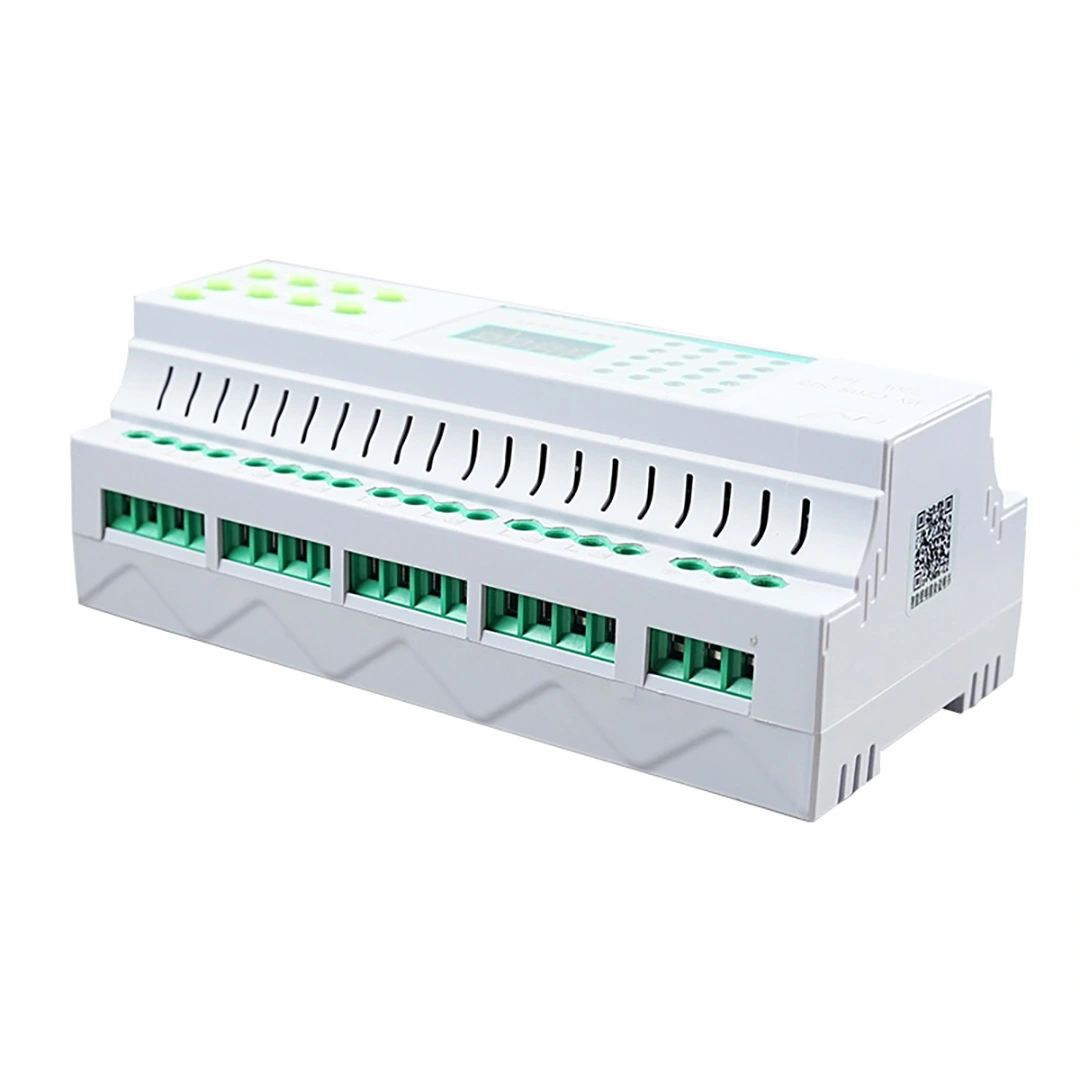

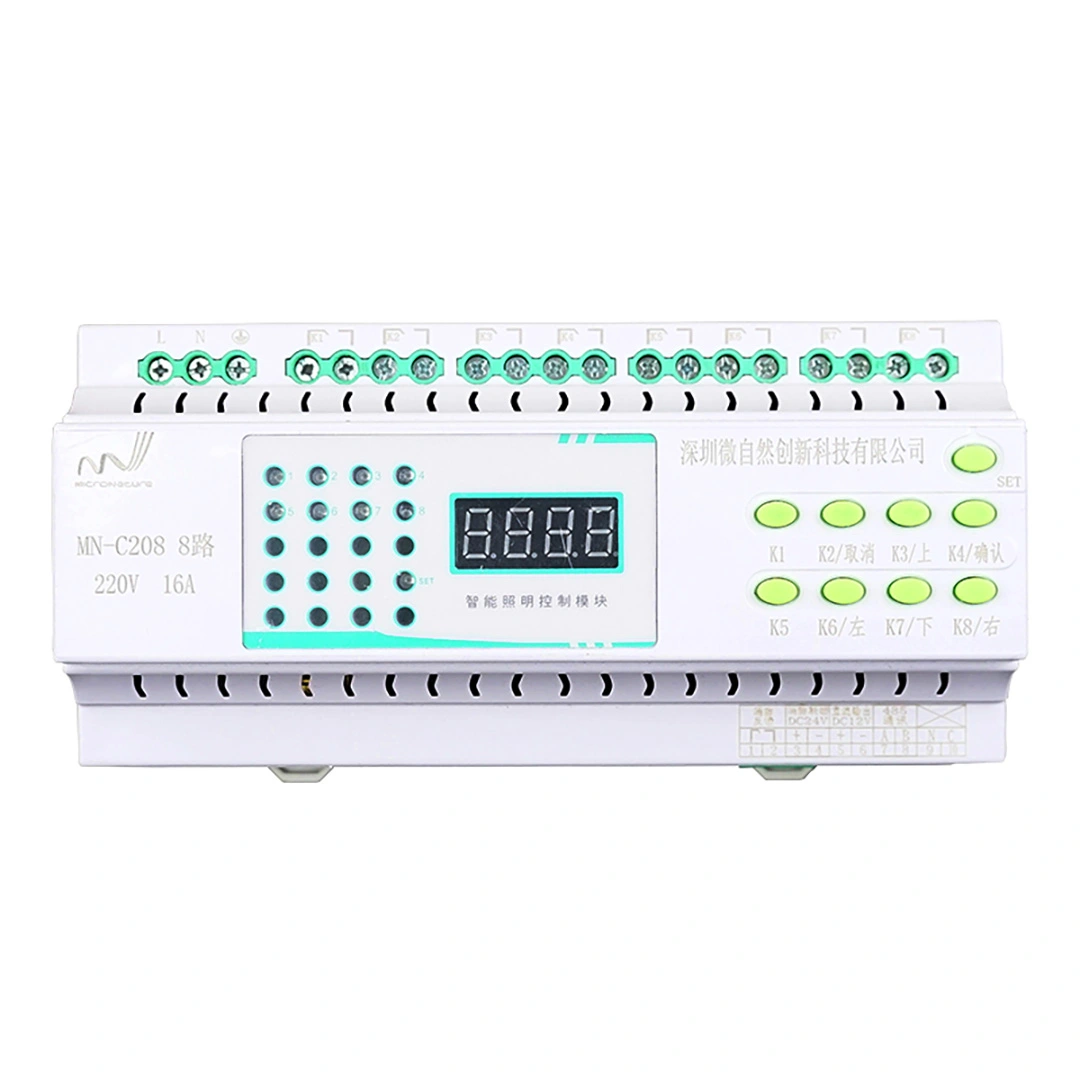

Loop Controller
The loop controller supports gateway communication for local button control and remote control, enabling one-click scene configuration. It also supports scene control and AI visual control, while boasting a high load capacity. The loop controller is ideal for lighting applications in hotels, stadiums, railway stations, parking lots, airports commercial buildings, and restaurants. When integrated with the smart lighting system, it is widely utilized in the smart lighting sector.
Product Advantage
The loop controller supports gateway communication for local button control and remote control, enabling one-click scene configuration. It also supports scene control and AI visual control, while boasting a high load capacity. The loop controller is ideal for lighting applications in hotels, stadiums, railway stations, parking lots, airports commercial buildings, and restaurants. When integrated with the smart lighting system, it is widely utilized in the smart lighting sector.
Product Parameters
| Parameter | Description |
| Power Supply | 220VAC |
| Circuit Output | 4, 6, 8, 12 channels |

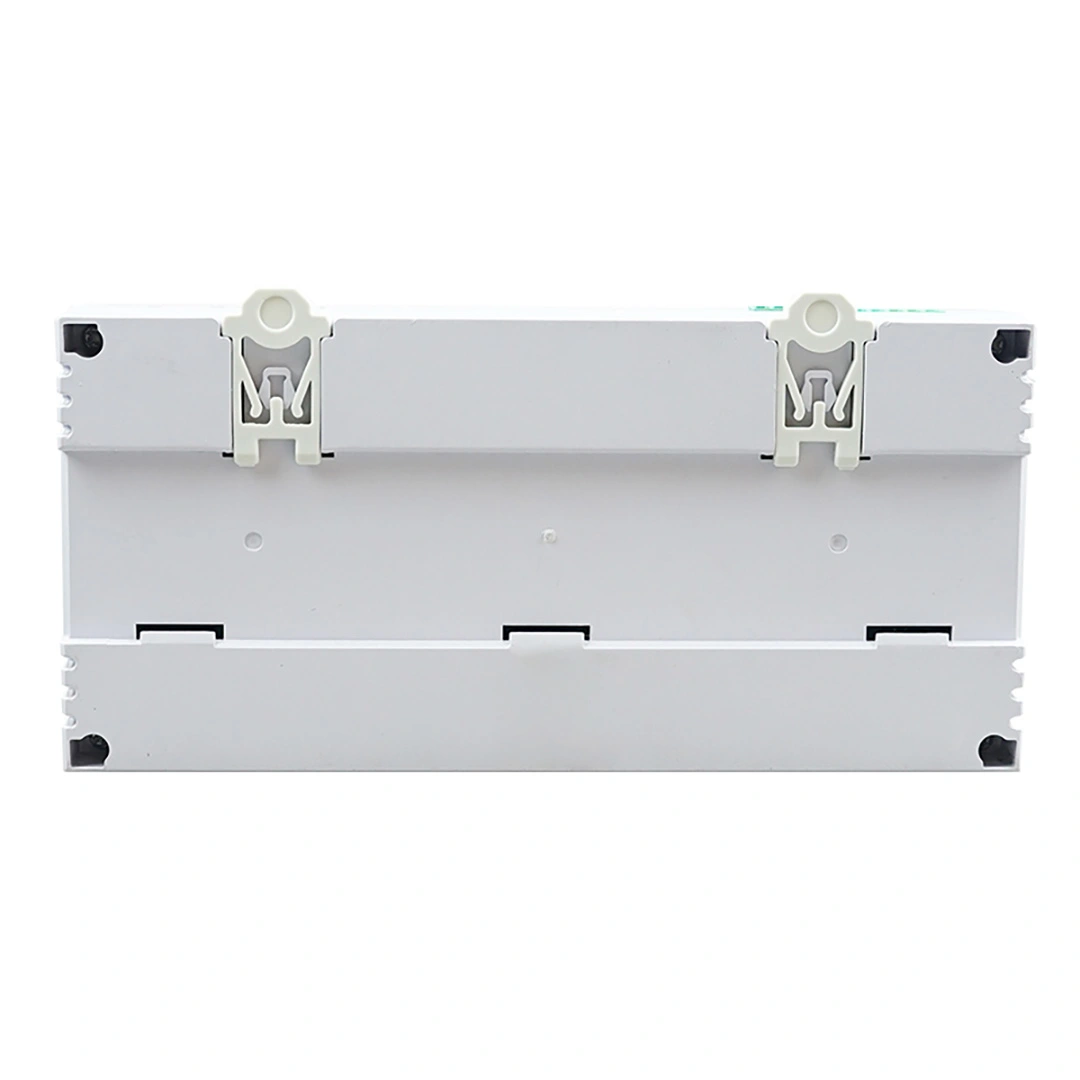

| Installation Method | Rail installation |
| Max Input Current | 40A |
| Indicator Light | Description |
| Light 1 - Light 16 | On indicates corresponding relay is closed; Off indicates relay is open |
| SET Light | On indicates module is in setup mode; Off indicates module is in switch mode |
| Terminal | Description |
| L | Live wire terminal |
| N | Neutral wire terminal |
| Switch Linkage | Connect either full on or full off to one end of the switch;the other end connects to the common terminal |
| DC Output | DC 12V output for power supply |
| 485 Communication | 485 communication interfacefor connecting 485 communication line |

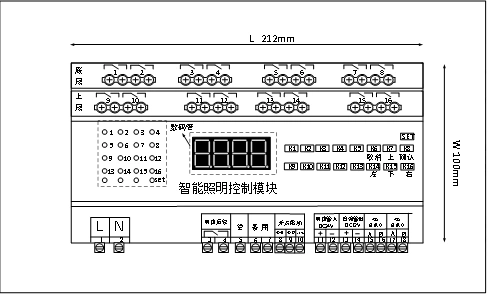

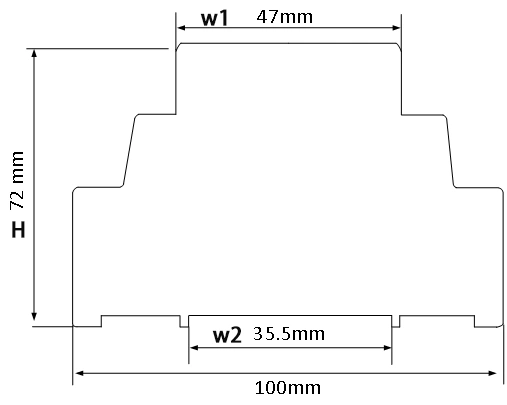

| Model | Specification | L | W | H | W1 | W2 |
| MN-C204 | 4-channel | 108 | 100 | 72 | 47 | 35.5 |
| MN-C206 | 6-channel | 108 | 100 | 72 | 47 | 35.5 |
| MN-C208 | 8-channel | 108 | 100 | 72 | 47 | 35.5 |
| MN-C2012 | 12-channel | 212 | 100 | 72 | 47 | 35.5 |

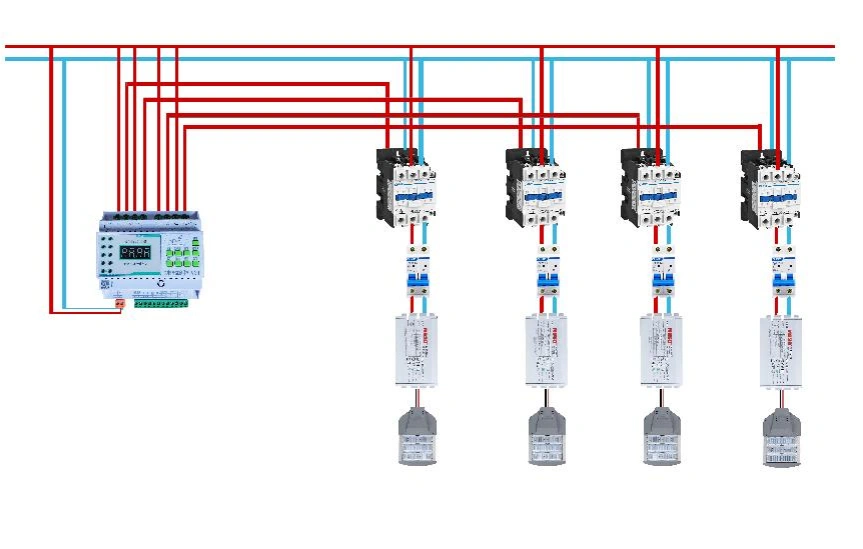

Loop Controller Connected to AC Contactor
Loop Controller Connected to Industrial Lighting Circuits (up to 2000W)
- The loop controller connects to the smart concentrator gateway by default via 485Ⅰ port. For specific connection to 485Ⅰ or 485Ⅱ, consult the business team.
- Wiring methods for loop controller to lamps (taking DC lamps as an example):
- AC-powered lamps can be directly connected to the loop controller.
- DC-powered lamps require the loop controller to connect to an LED power supply (converting AC to DC) before wiring to the lamp.

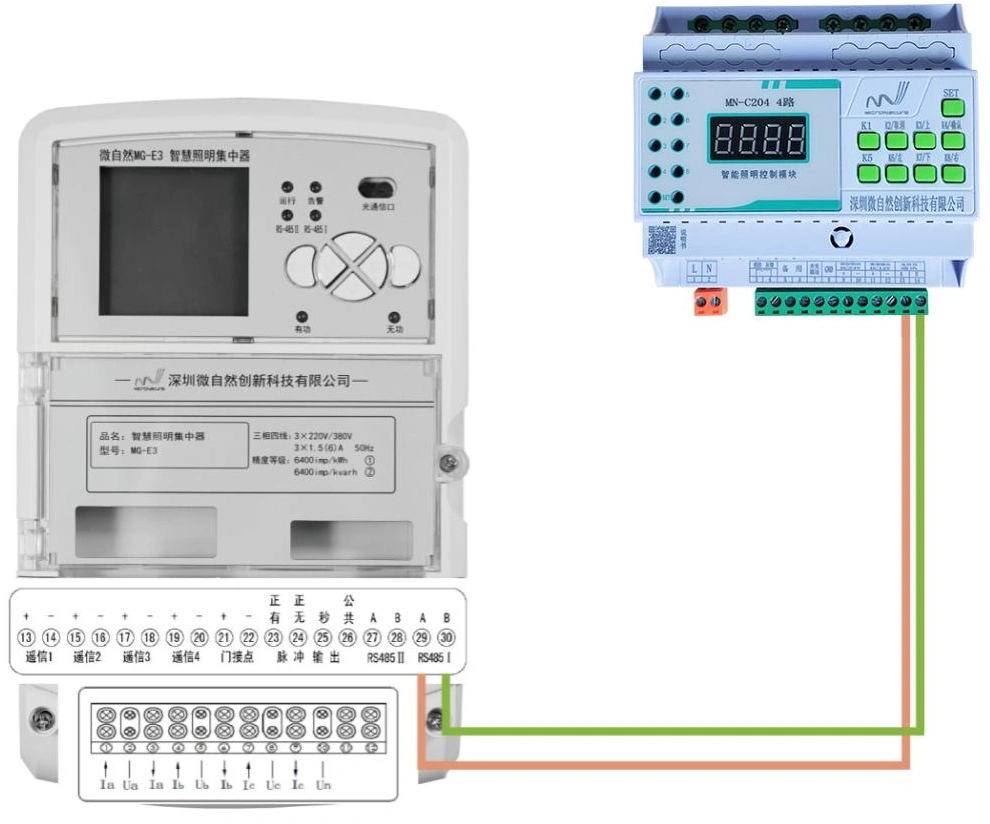

Step 1: 485 communication between Loop Controller and Smart Concentrator Gateway
- Loop Controller 485 A port to Smart Concentrator Gateway RS485ⅠA port
- Loop Controller 485 B port to Smart Concentrator Gateway RS485ⅠB port

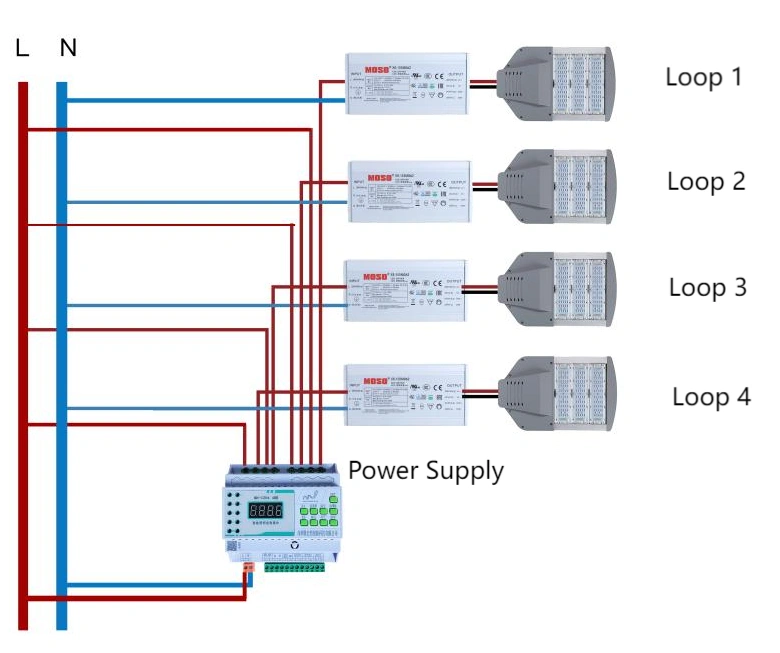

Step 2: Loop Controller to lamps connection

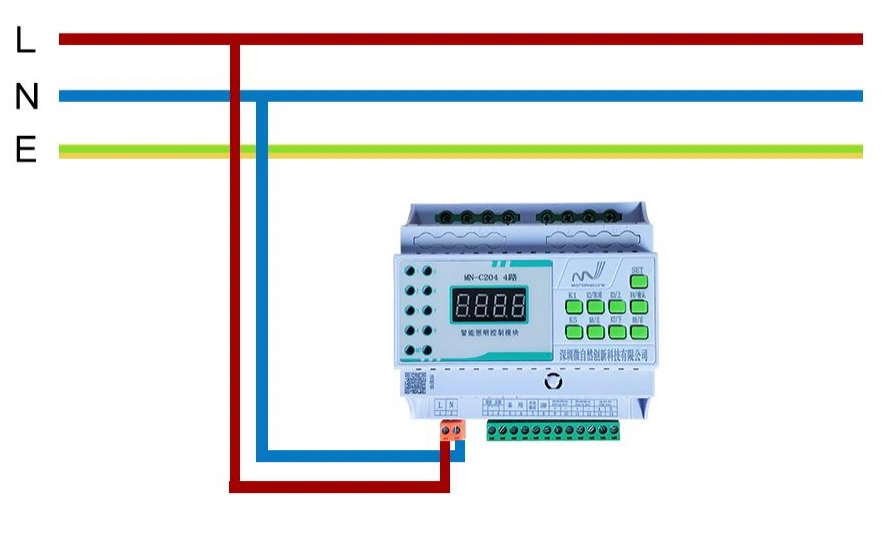

Step 3: Loop Controller power connection
- L (Live) → L (Live)
- N (Neutral) → N (Neutral)

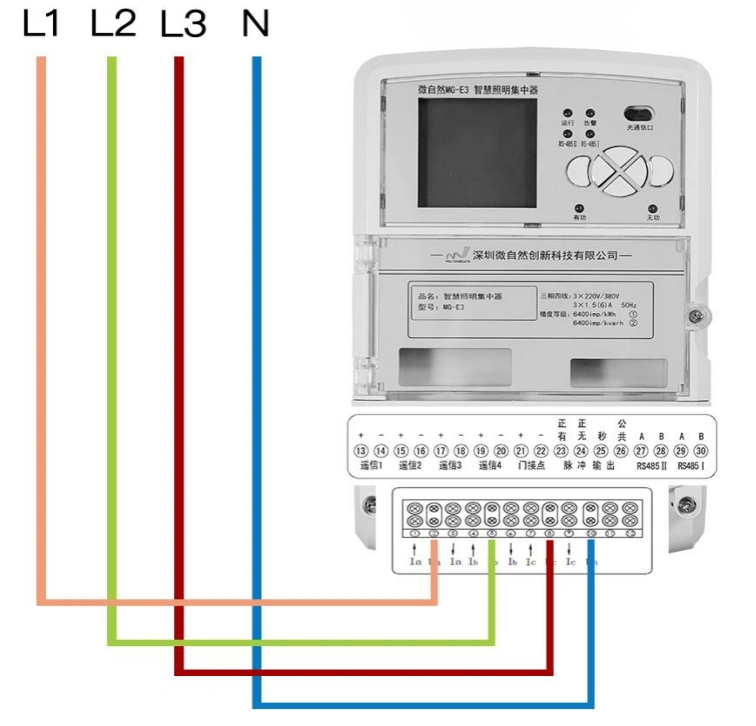

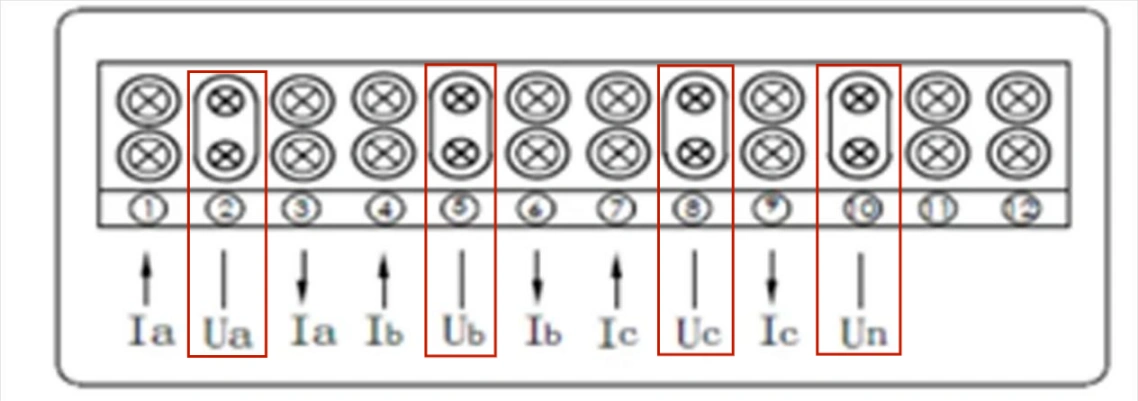

Step 4: Smart Concentrator Gateway power connection
- Ua (2) → L1 (Live)
- Ub (5) → L2 (Live)
- Uc (8) → L3 (Live)
- Un (10) → N (Neutral)

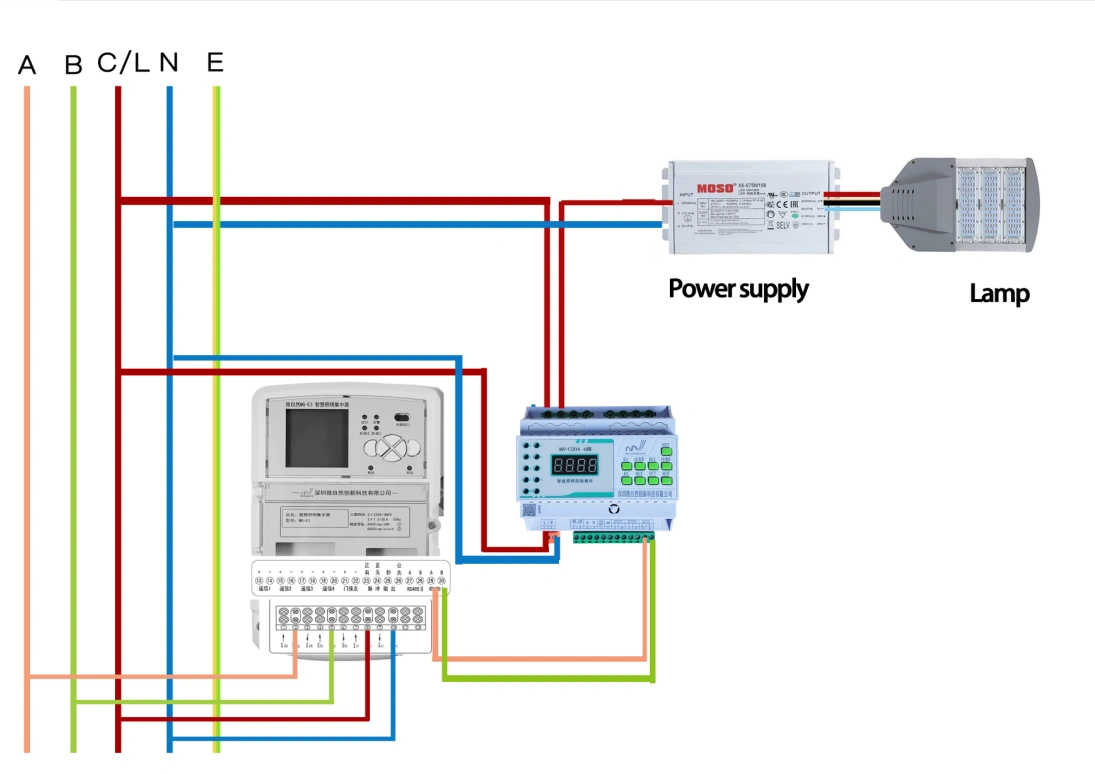

Overall wiring overview
Note: Do not connect 'L' and 'N' incorrectly to avoid affecting the normal operation.
