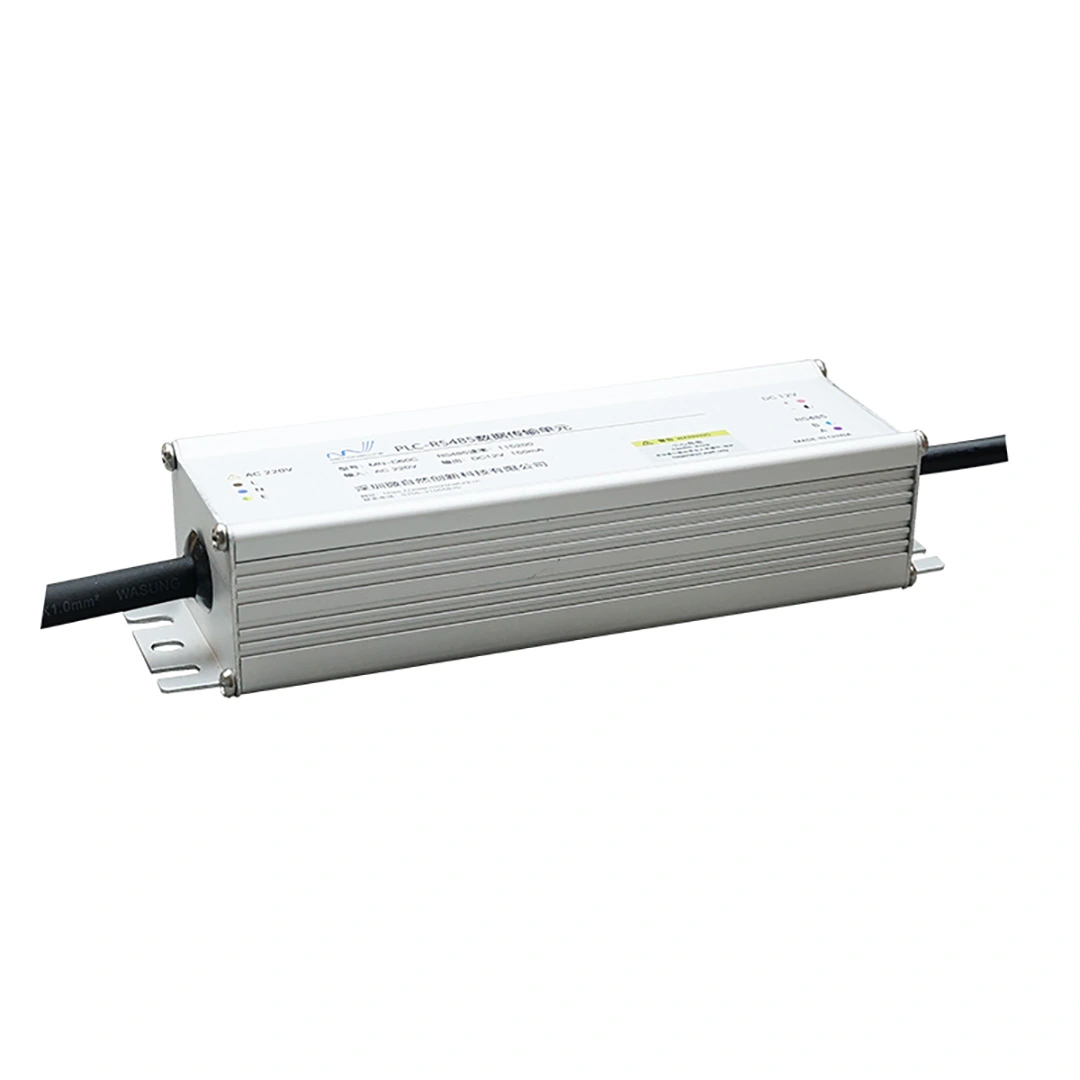

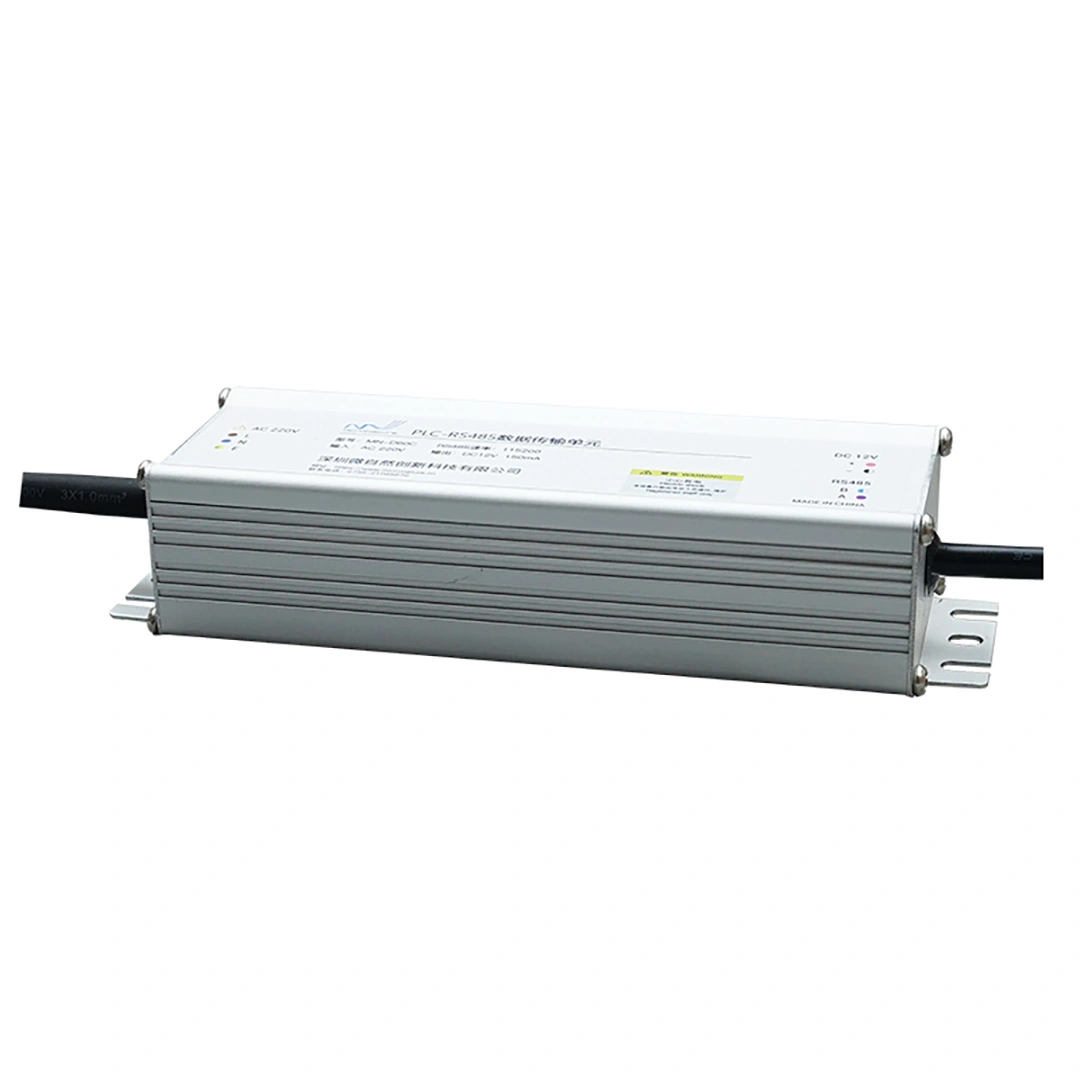

MN-D60C
l Transparent Transmission: Supports transparent RS485 serial data transmission with a baud rate of up to 921600bps.
l Address Configuration: Allows setting RS485 communication addresses.
l Communication Parameter Settings: Configurable baud rate, parity bit, and other parameters.
l Master/Slave Mode Switching: Supports switching between master/slave roles, with the master device fixed at address 0.
l Protocol Support: Compatible with multiple RS485 protocols, such as ModBus and DL645.
Product Advantage

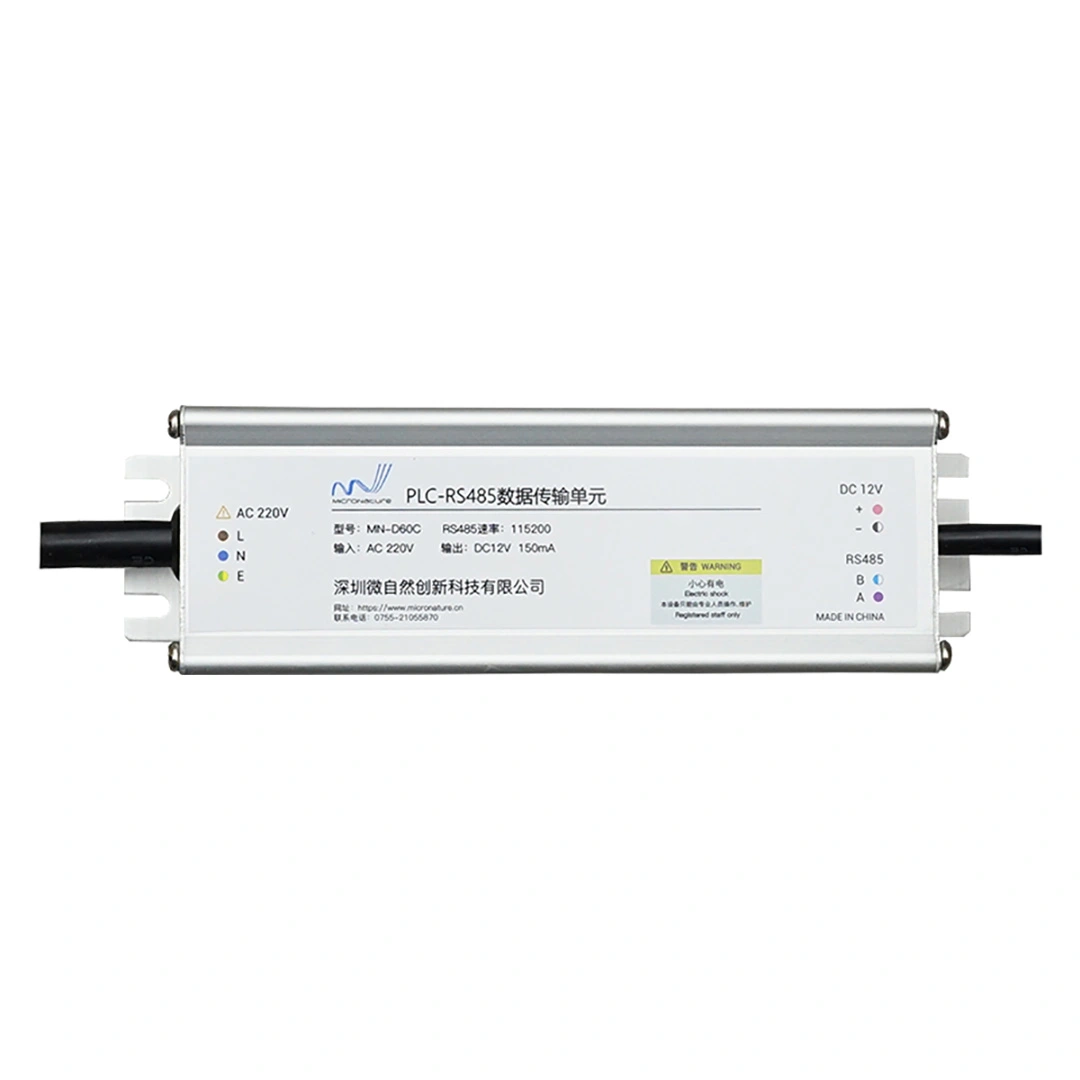

The MN-D60C is a PLC-RS485 Data Transmit Unit (DTU) equipped with a high-performance CORTEX chip. This device enables bidirectional communication between Power Line Communication (PLC) and conventional RS485 signals while directly transmitting valid communication data. With a built-in isolated power converter, it becomes operational simply by connecting to a power line. Additionally, it provides an isolated DC 12V@150mA power output to support small-power sensors or actuators.
Product Parameters
|
Power Line Input |
AC 100V~240V |
|
|
RS485 Settings |
Baud Rate |
115200bps |
|
Data Bits |
8 |
|
|
Stop Bit |
1 |
|
|
Parity |
EVEN |
|
|
Mode |
Half-Duplex |
|
|
Output Power |
DC 12V @ 150mA (Isolated) |
|
|
Power Dissipation |
≤ 0.500W |
|
|
Surge Protection |
4kV / 20kA (8/20μS waveform) |
|
|
Isolation Voltage |
>2kV (Input/Output Isolation) |
|
Typical Application

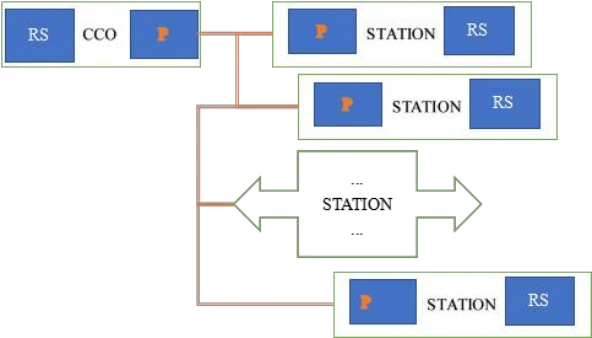

The host computer or RS485 master device connects to the Central Control Unit (CCO) via an RS485 interface, while multiple site devices' RS485 terminals are connected in parallel to the CCO through power line connections as illustrated in the diagram below.
Legend: RS = RS485 P= PLC (Power Line Communication)
Product Dimension
