MN-L60C PLC Module
MN-L60C Power Line Carrier (PLC) Communication Module
The MN-L60C is a fully integrated Power Line Carrier (PLC) communication module designed for seamless data transmission over existing power lines. With its ultra-compact size, robust performance, and easy installation, this module is ideal for various smart IoT applications including smart street lighting, smart homes, smart parking systems, central air conditioning, and ubiquitous power Internet of Things (IoT) devices.
Built with an advanced ARM Cortex-M4 processor and 32-bit DSP, the MN-L60C supports high-speed and low-speed multi-mode PLC communication. It offers reliable data transfer with OFDM, PSK, and 16-QAM modulation and demodulation technologies, ensuring strong anti-interference capability and stable communication across complex power networks.
The MN-L60C also provides rich peripheral interfaces such as UART, PWM, and GPIO, and comes with a built-in line driver for simplified circuit design and enhanced integration flexibility.
Product Advantage
1) CPU and storage performance
High performance Cortex-M4 processor and 32-bit DSP, core operating frequency 150MHz
Built-in 2 MB SDRAM and 2 MB Flash
2) Physical layer characteristics
Implement SGCCQ/GDW11612 or IEEE 1901.1 standard subset
Support 0 ~ 12M multi-band, 1.95 ~ 12MHz, 2.4 ~5.6 MHz, 0.78 ~2.93MHz and 1.76 ~2.93MHz four frequency band optional
OFDM technology is adopted to support BPSK, QPSK and 16QAM signal modulation techniques
Support FEC and CRC functions, strong error correction and noise removal capability
AES-128/192/256, SM2/SM3/SM4 Acceleration Engine
3) MAC characteristics
Support TDMA and CSMA/CA with collision avoidance mechanism
Support data segmentation and reorganization to improve transmission efficiency
Support data retransmission mechanism
Support 4 levels of QoS to meet different service quality requirements
4) Network characteristics
Support automatic rapid networking, typical 200 terminal scale, 2 levels of network scenario 10s to complete rapid networking, support rapid communication
Support dynamic routing, multi-path addressing
5) Peripheral interface
UART interface, GPIO interface, PWM output, ADC input
6) Communication indicators
The peak rate of the physical layer is 0.507Mbit/s, and the application layer rate is 80Kbps
The receiving sensitivity is better than 0.2mVpp
7) Power consumption and others
Static power consumption is less than 0.10W (no packet transmission in networking)
Dynamic operating power is less than 0.7W
Product Parameters
| Module name | MN-L60C |
| Main interface | UART, PWM, GPIO， ADC |
| Communication mode | power line carrier communications |
| PCB size | L*W: 24.3mm*13.0mm |
| Working voltage | 3.3V |
| Working temperature | -40℃ ~ +105℃ |
| Storage temperature | -40℃ ~ + 125℃ |

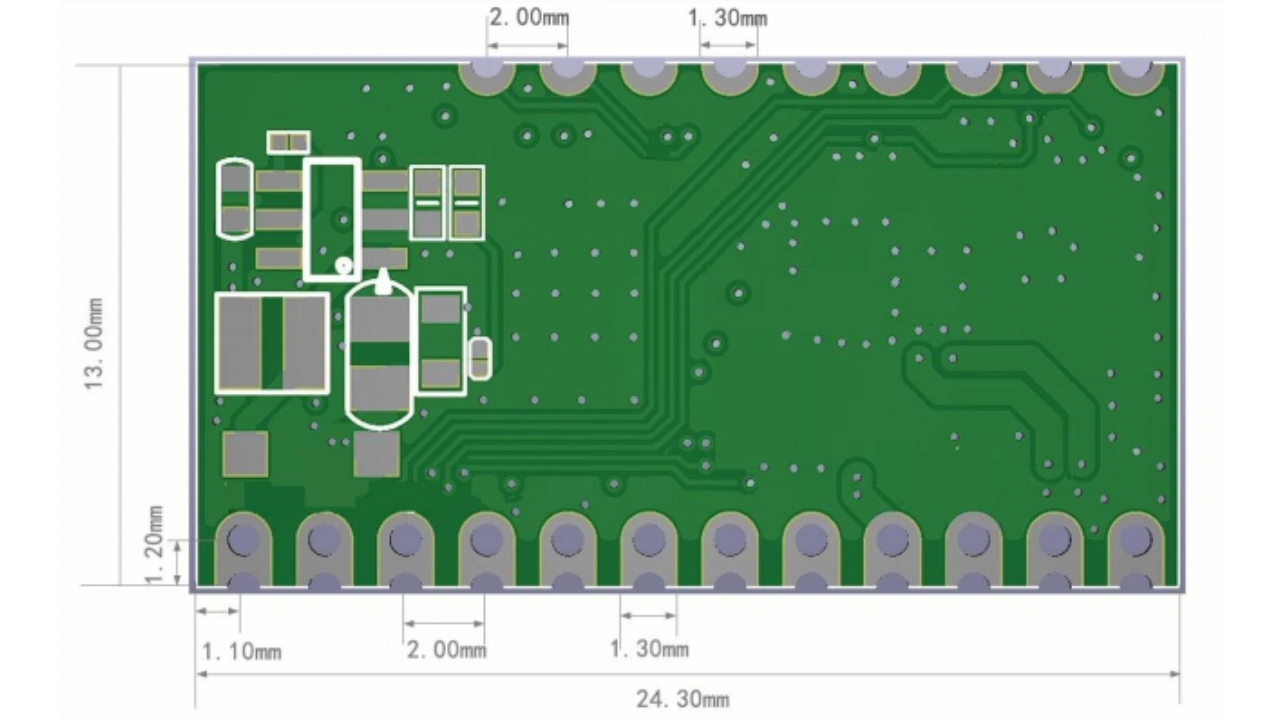

Dimensions
Module PIN definition

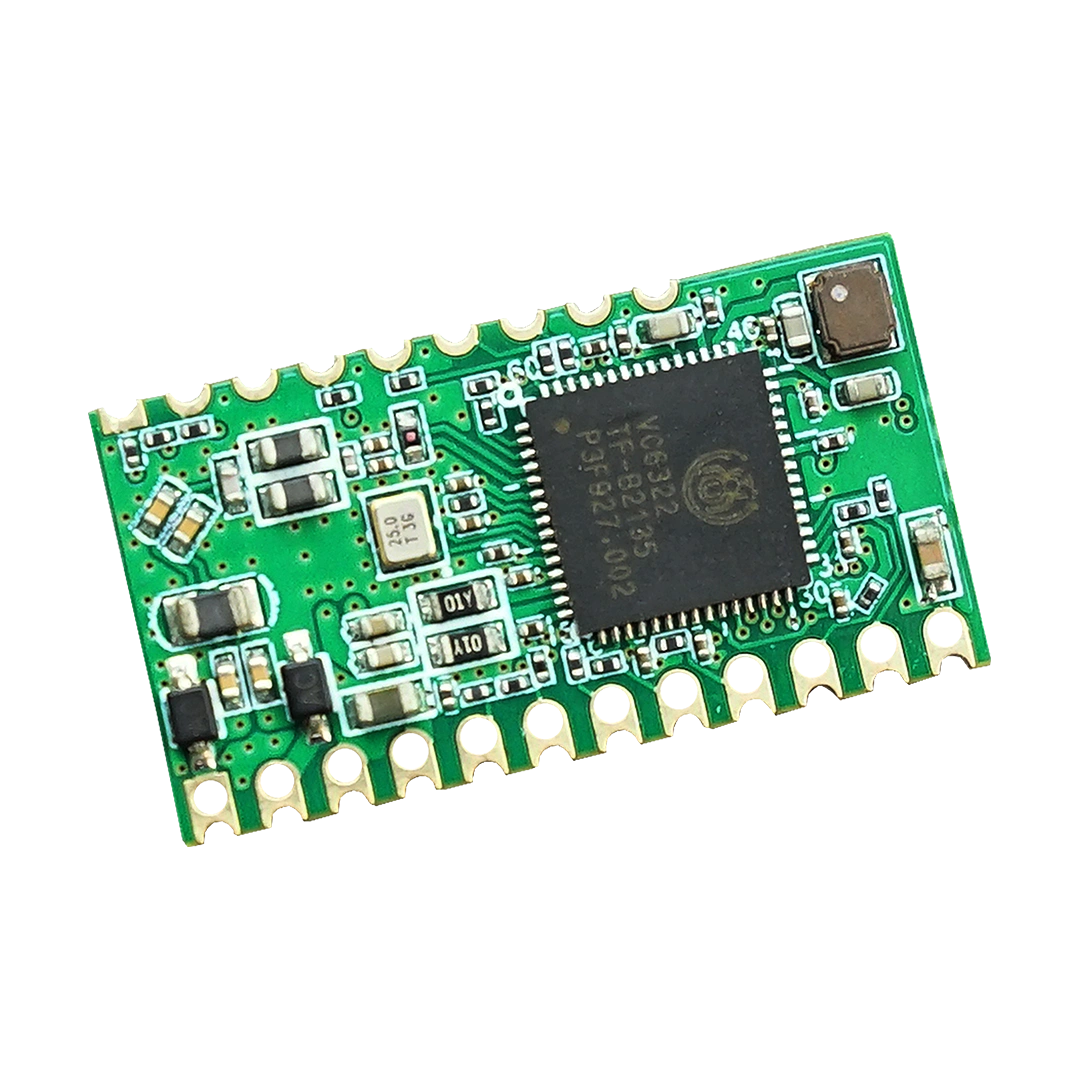

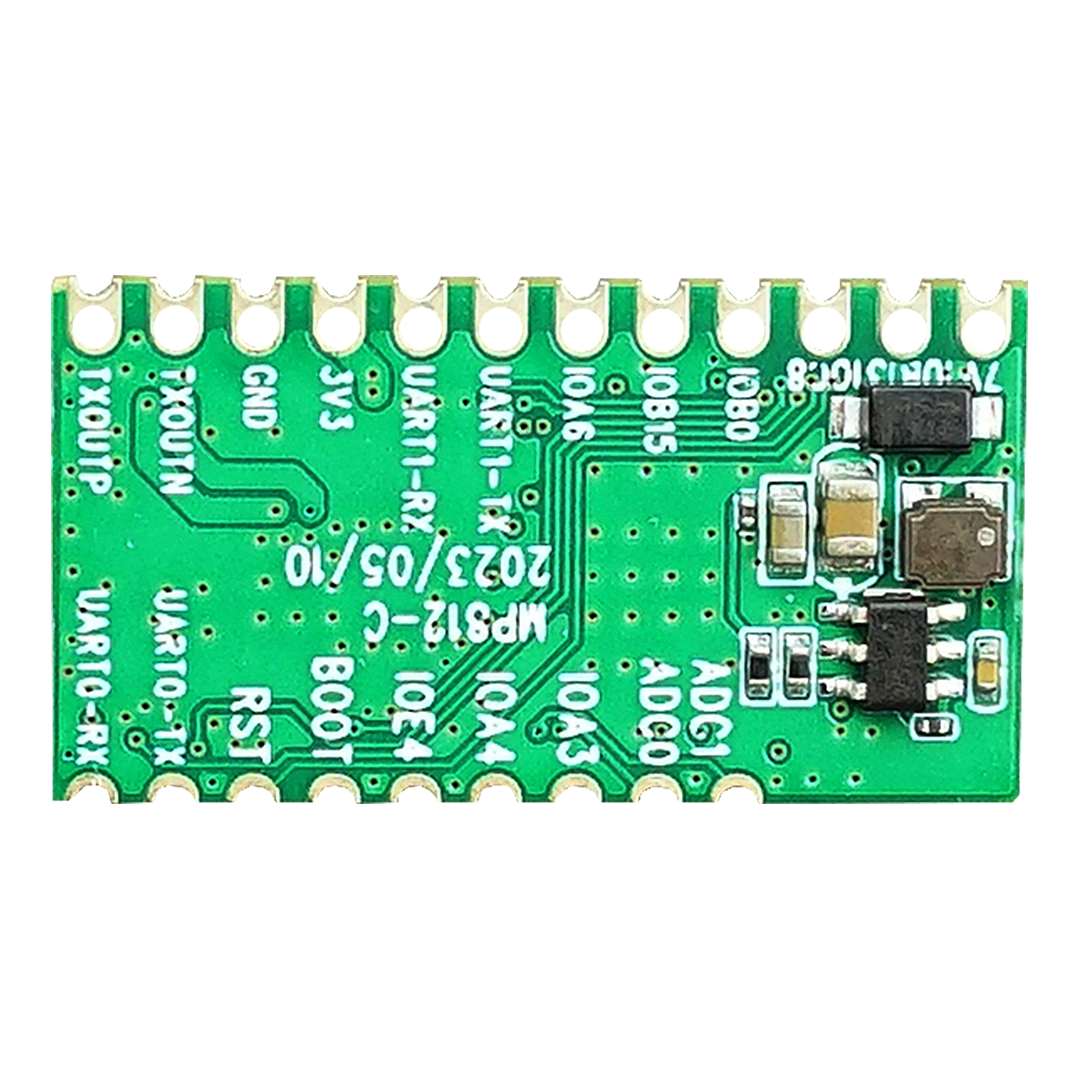

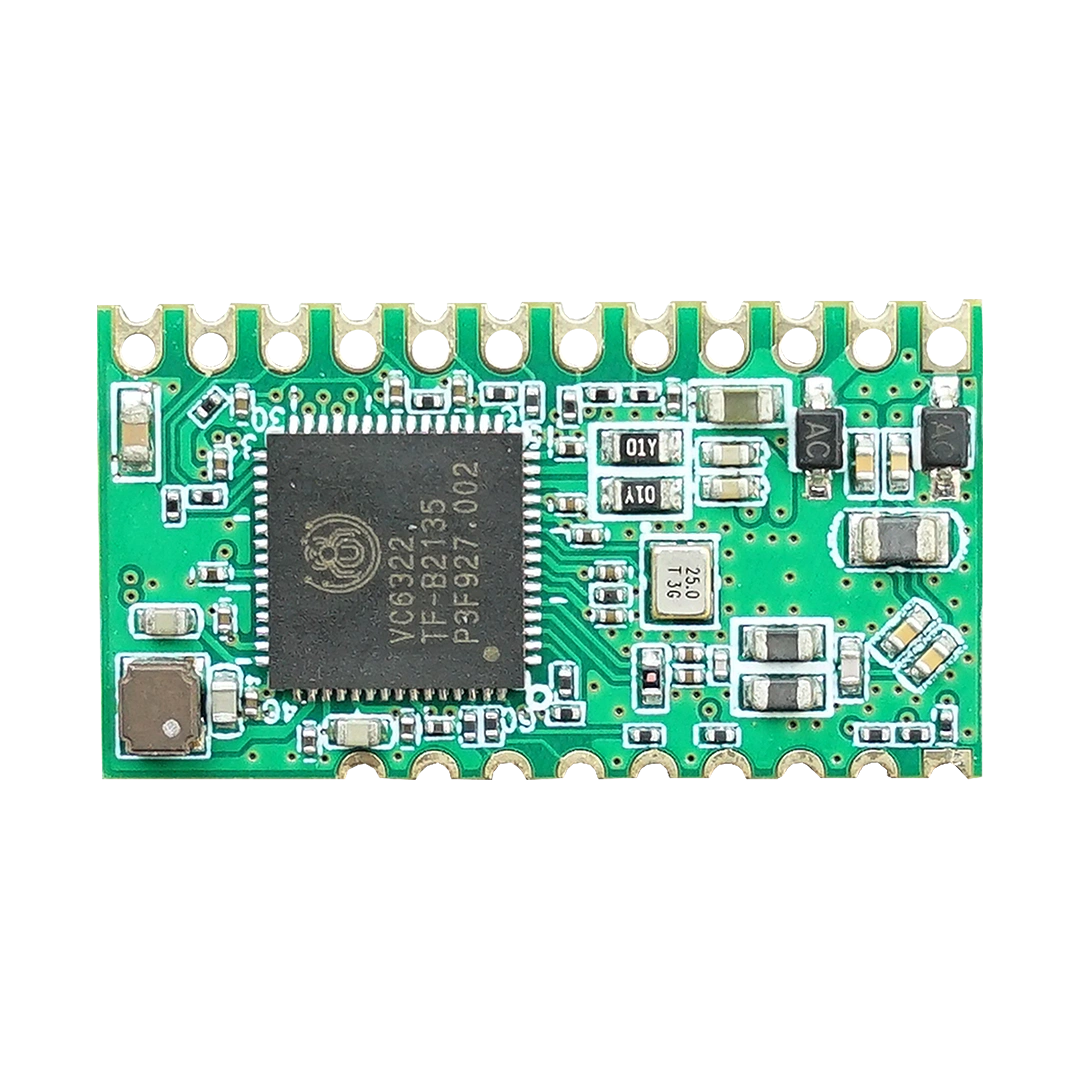

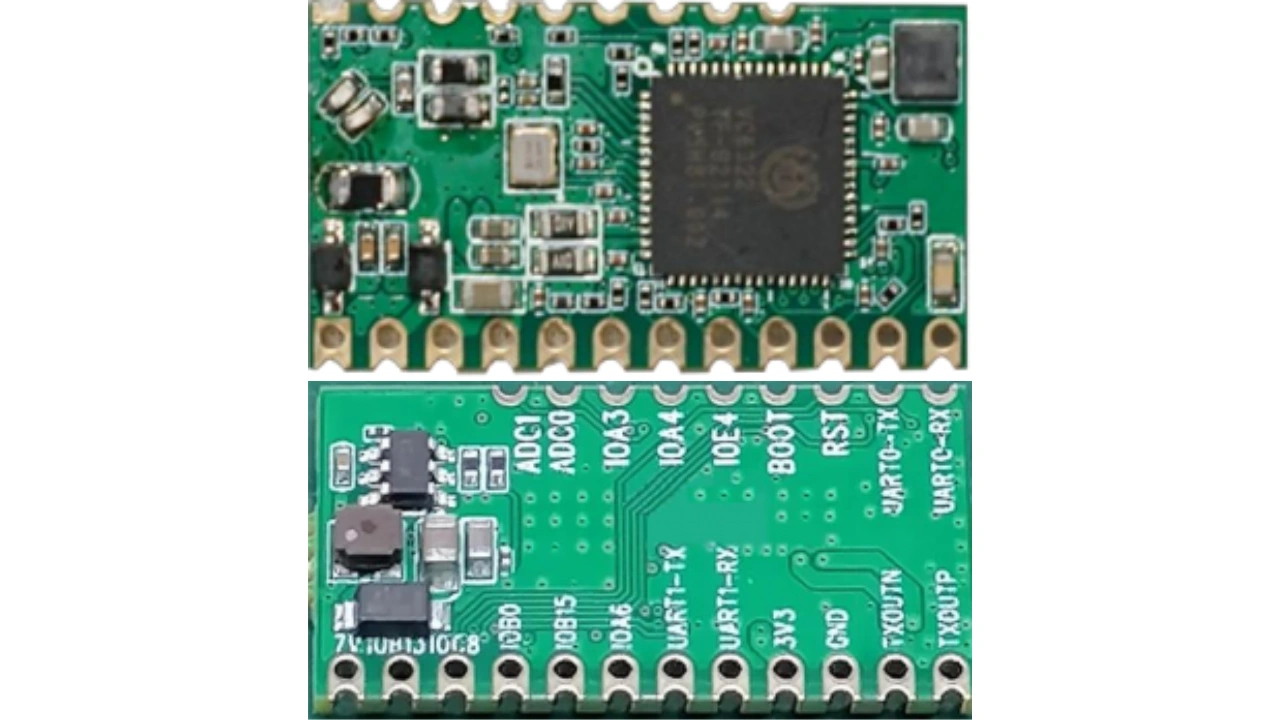

1) Module appearance

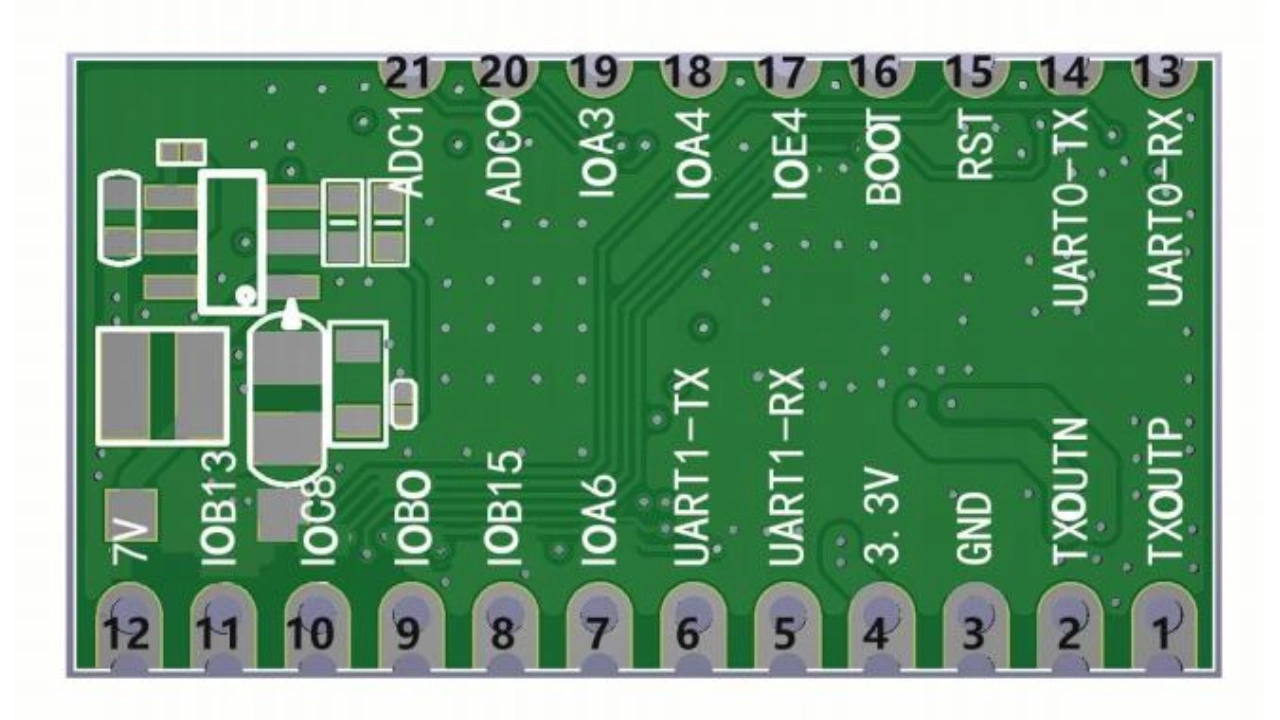

2) Pin diagram
Hardware design description
1) Input power supply requirements
| minimum （RMS） | typical case （RMS） | maximum （RMS） | unit | |
| input voltage | 3.0 | 3.3 | 3.6 | V |
| input currenton | 29 | 129 | 290 | mA |
The motherboard is close to the 3.3V input end of the module. At least one 10uF and 0.1uF energy storage capacitor is placed to the ground to reduce the power supply ripple and the peak value of ripple is less than 100mVpp.
- Module 3.3V is connected to other 3.3V on the motherboard at 600R/100MHz@1A.
- Module 3.3V circuit ensures an average current of 300mA and above current demand, and the
maximum transient peak current can reach about 1A when the full power PLC signal output.
2) PLC module docking design

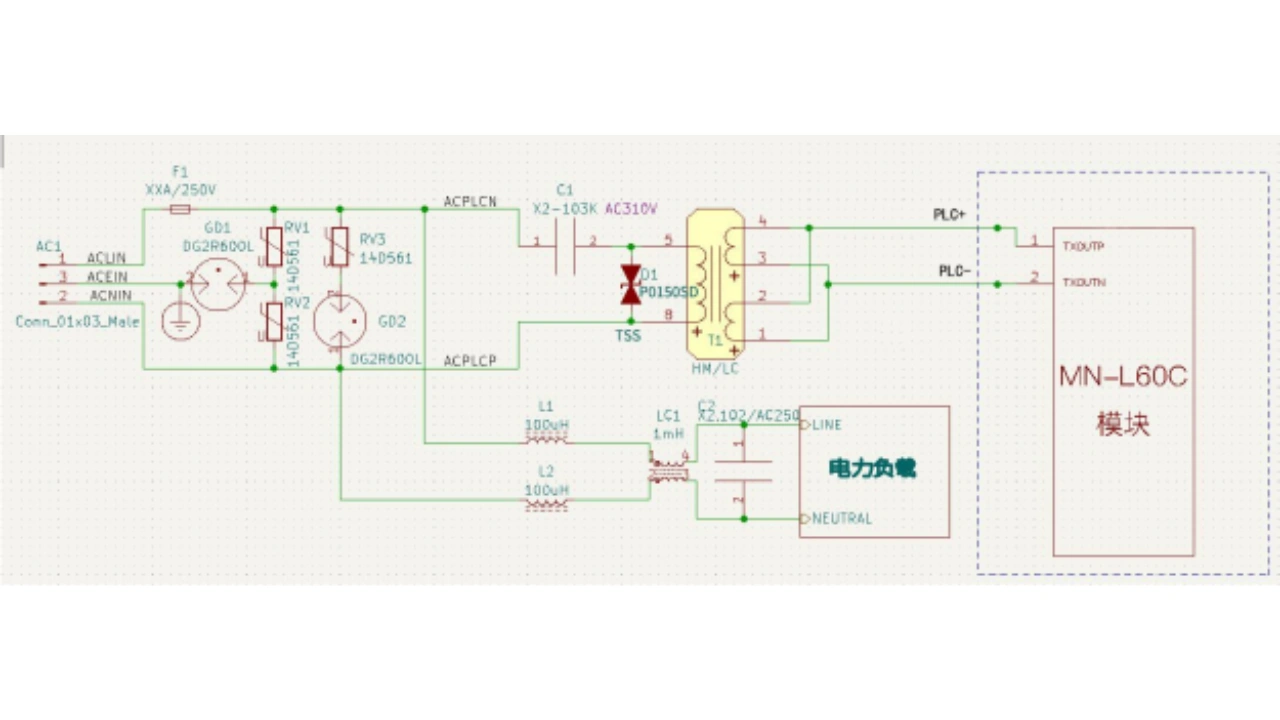

In the product design end, the safety protection design of L/N line and PLC + signal coupling design are suggested to refer to the following circuit diagram.
Note: The T1 transformer in the diagram is a 1:1 transformer. The recommended safety capacitor (C1) should be 10nF. The semiconductor discharge tube (D1) is mandatory. After the PLC signal input point on the L/N line is connected to the surge protection circuit, the varistor's charging capacitance should be less than 600pF. Two differential-mode inductors (L1/L2) should be connected in series after the PLC signal to isolate it from the main power load, with recommended inductance values of 50-100μH.

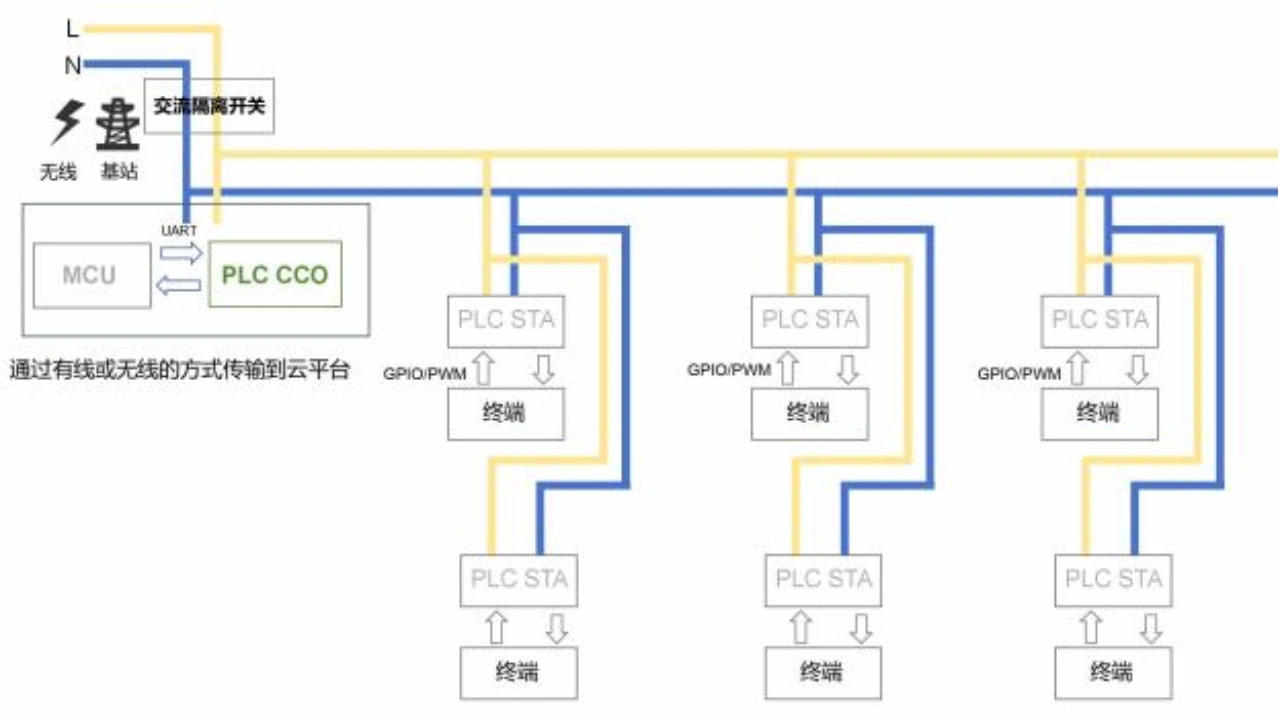

3) Typical network diagram of CCO and STA
