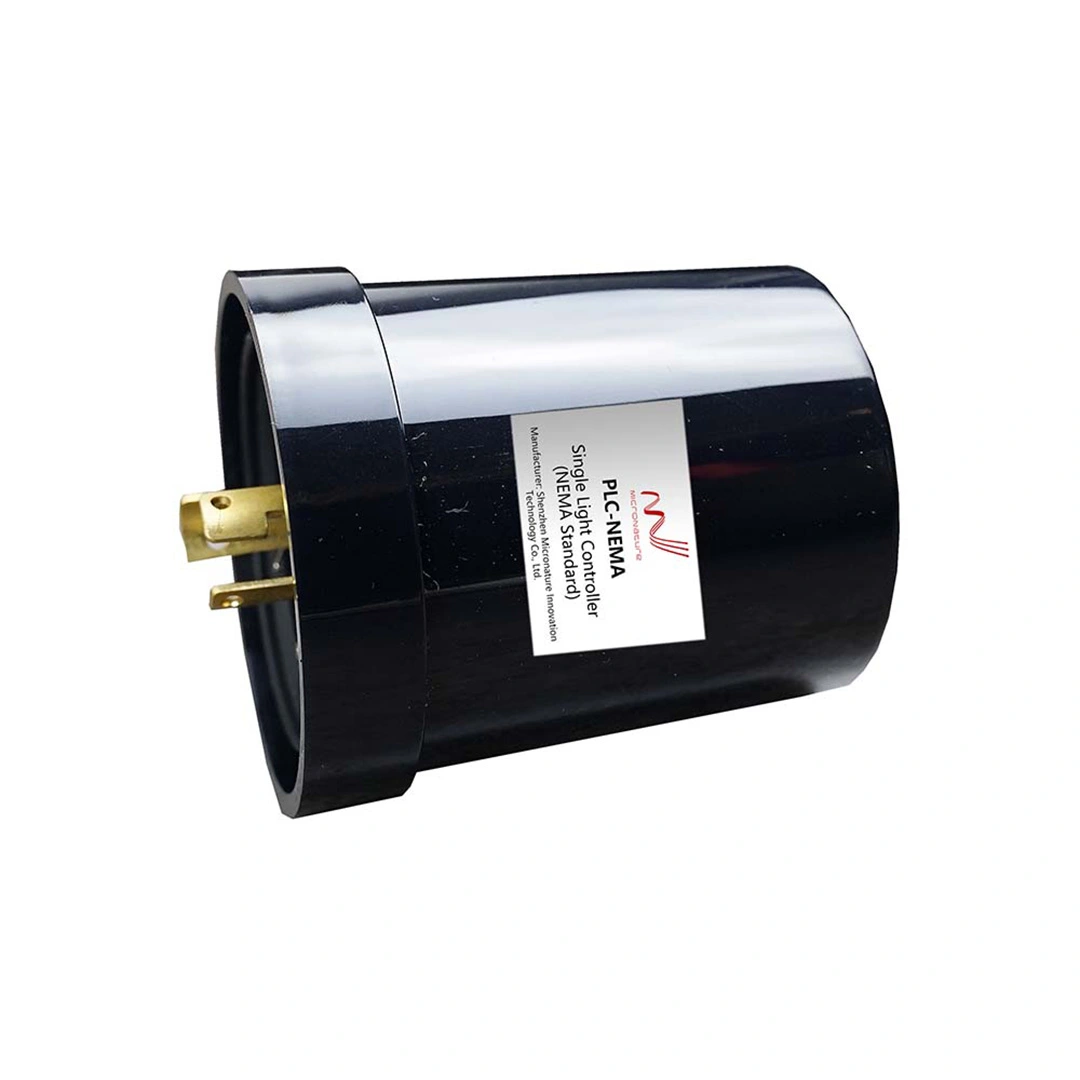

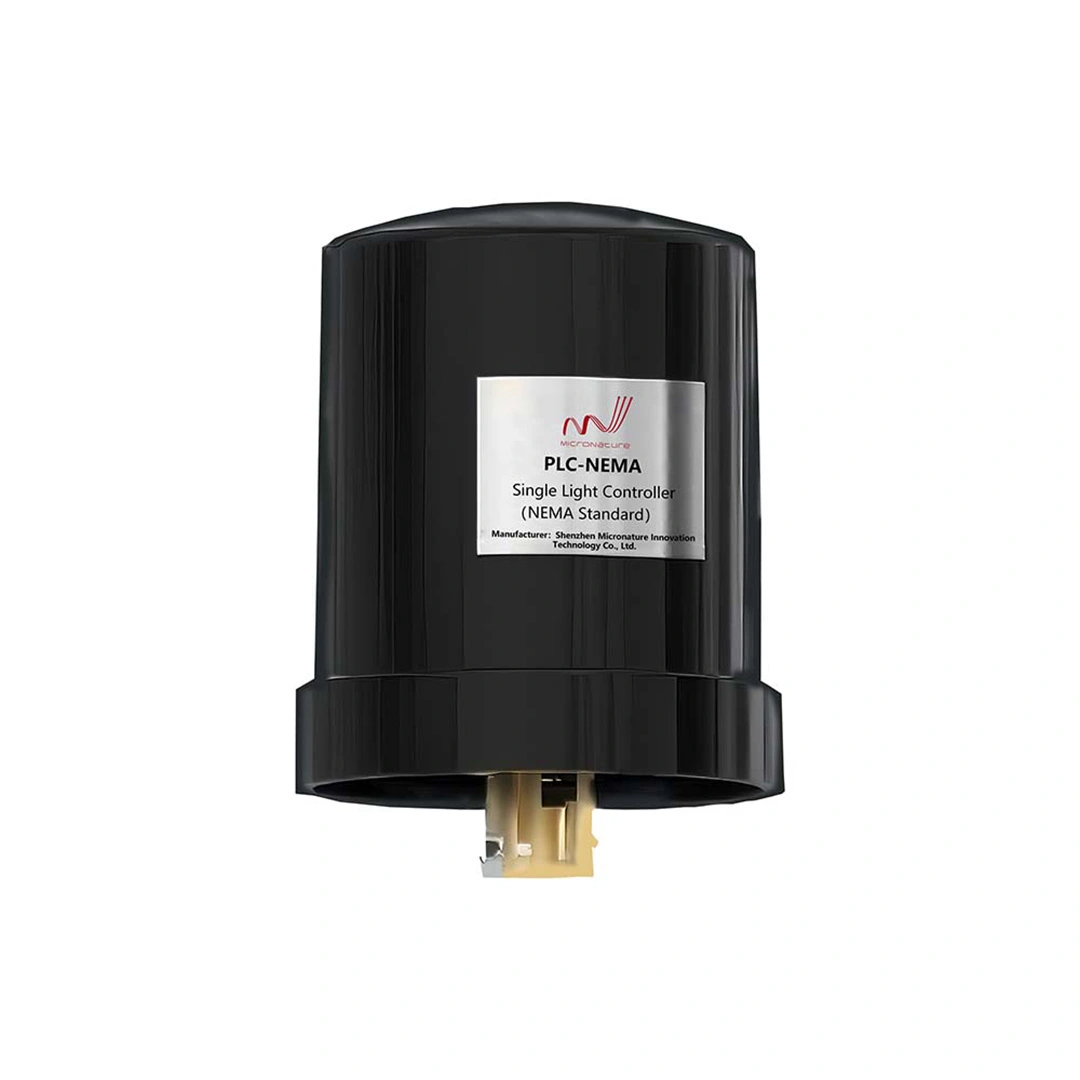

Nema Controller
The PLC-NEMA light controller complies with UL773/ANSI C136.10 standards and features an international NEMA standard interface. It utilizes broadband power line communication technology, allowing communication over existing power lines without additional wiring, thereby reducing installation costs. The controller offers fast communication with a peak physical layer rate of 0.507 Mbit/s, employs OFDM modulation for strong anti-interference capabilities, and supports automatic networking, completing setup in just 10 seconds. It can accommodate up to 15 relay levels, providing long communication distances.
Additionally, the PLC-NEMA light controller uses power line communication to collect and report data on input current, voltage, active power, energy consumption, power factor, switch status, and other relevant metrics.
Product Advantage
- Power Line Communication (PLC) technology.
- Equipped with 0-10V, PWM international universal dimming interface.
- Realizes multi-function detection of current, voltage, active power, electricity, power factor, etc.
- High-precision data collection solution that meets the national meter measurement standards.
- 1 channel 10%-100% stepless dimming output.
- With overcurrent, overvoltage, undervoltage, overload protection, lamp status detection, and default lighting functions.
- Active reporting of overcurrent, overvoltage, undervoltage and overload.
- Suitable for switching and dimming of various power LED lamps; supports multiple light-off modes for power drivers and line input relays.
- Supports local policies and automatically executes cloud configuration policies locally in network abnormality/no network conditions.
- Supports timed on/off, time control mode.
- Relay working life: 100,000 times
- Industrial grade operating temperature: -40℃～+85℃
- Waterproof grade: IP66
- Lightning protection grade: ±4KV
- Flame retardant grade: UL 94-V0
- Housing size: 84mm*98mm
- Installation method: Installation on the top of the lamp
Product Parameters
Electrical Parameters
| Parameter | Value | |
| AC Parameters | Voltage Supply | 85VAC~305VAC |
| Frequency | 50~60Hz | |
| Load Parameters | Max Load Power Consumption | 500W |
| Power Consumption | <2W | |
Function Parameters
| Dimming Type | 0-10V |
| PWM | |
| Data Collection | Current, voltage, active power, power factor, electricity |
| Early Warning | Overvoltage, undervoltage, overcurrent, overload |
| Edge Computing | Local strategy, can work offline |
Measuring Range & Accuracy
| Current | 0~5A ±5% |
| Voltage | 0~220V ±2% |
| Active Power | 1W~500W ±5% |
| Power Factor | 0.1PF~1PF ≤±2% |
| Electricity | ±5% |
| Temperature | -40~85℃ ±1℃ |
Communication Parameters
| Communication Method | PLC |
| Peak Rate | 0.507Mbit/s |
| Frequency Band | 0.5-3.7M , 2.5-5.7M |
| Sensitivity | ≤-80dbm |

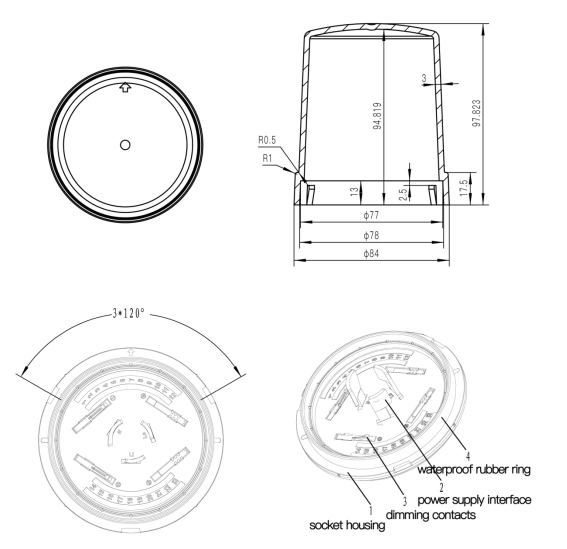

Dimensions (Unit: mm)
Wiring

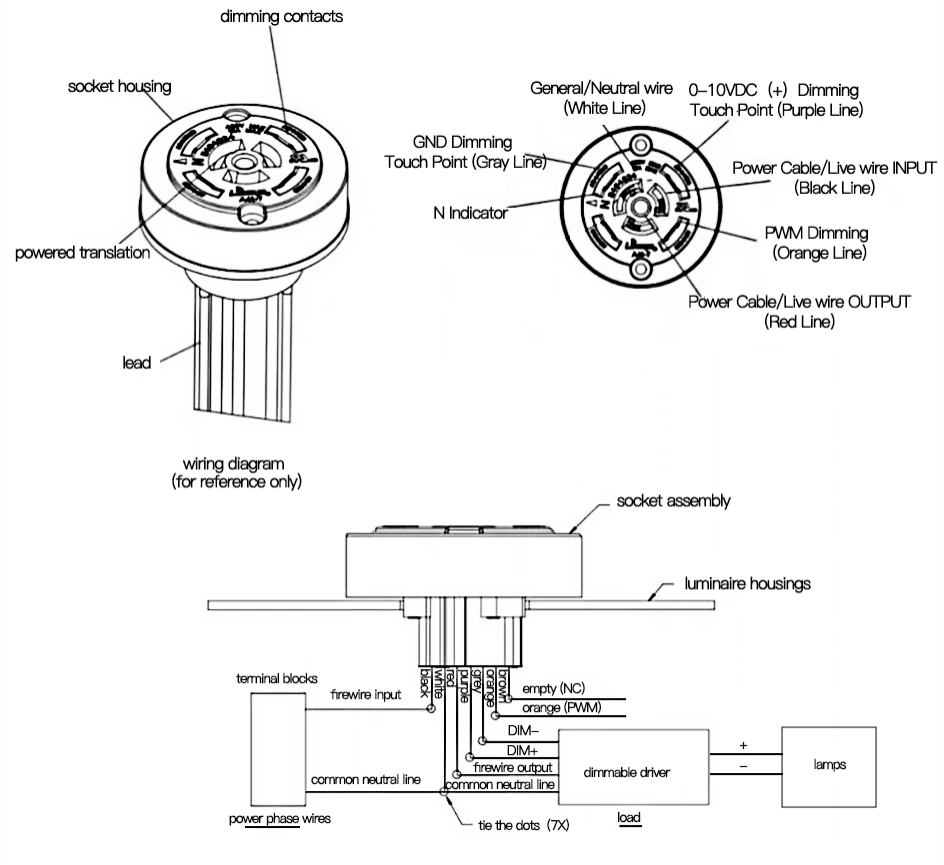

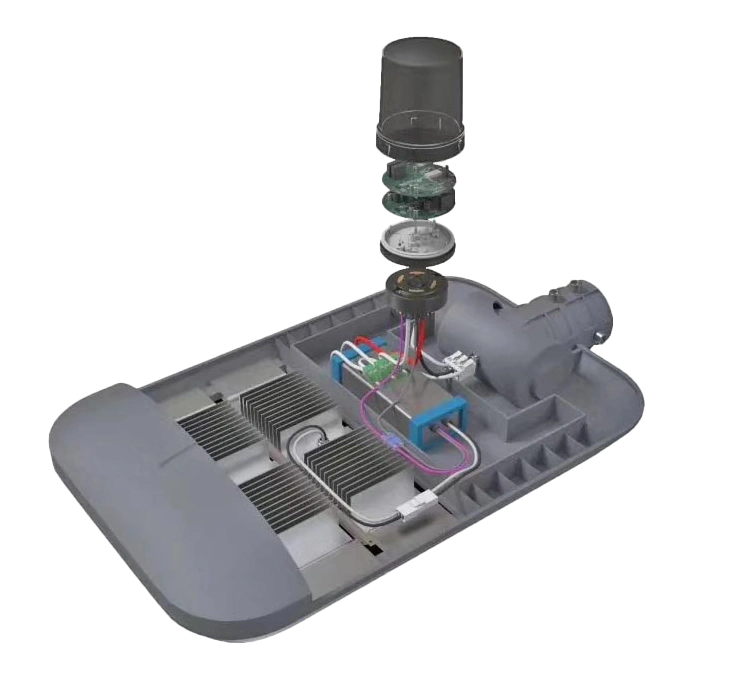

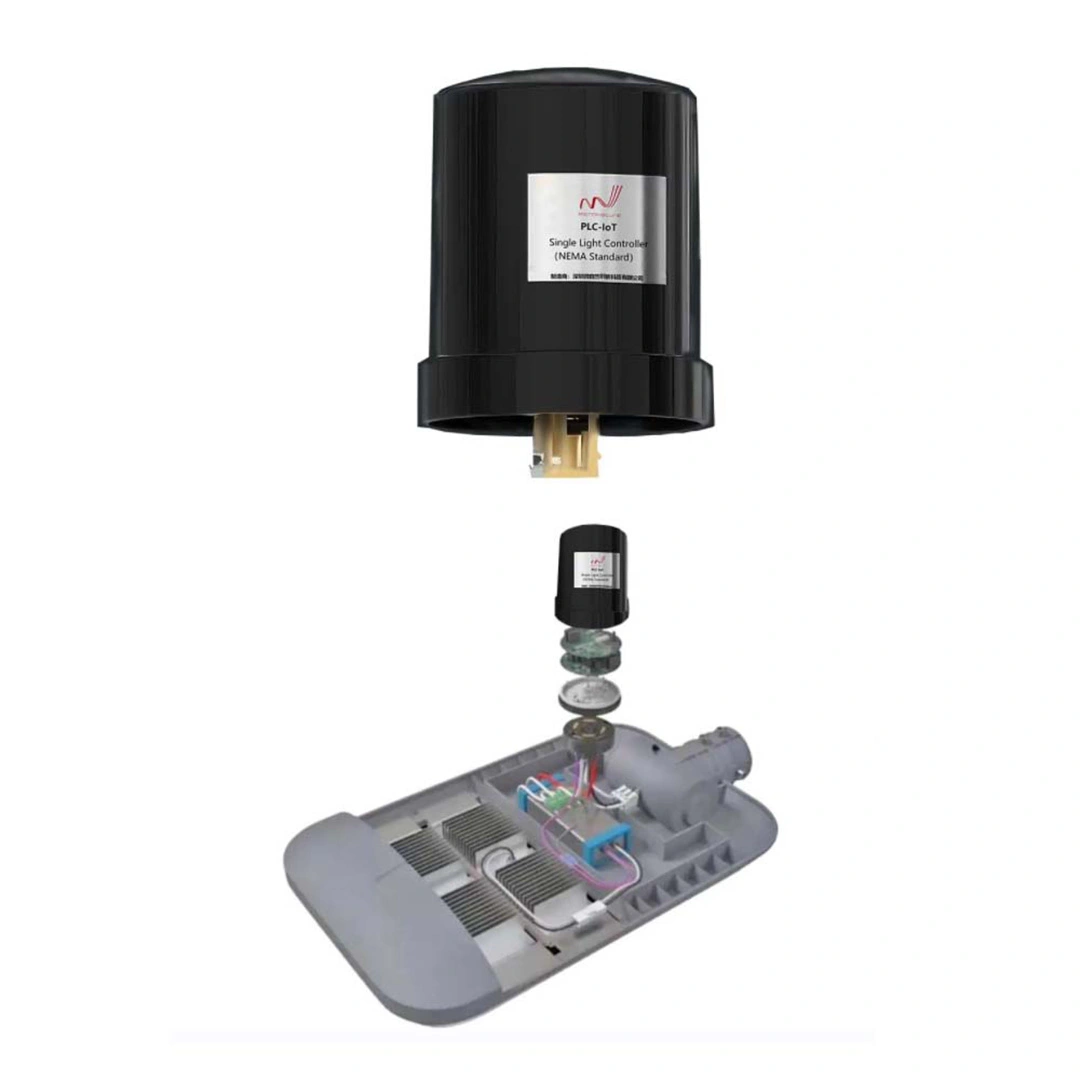

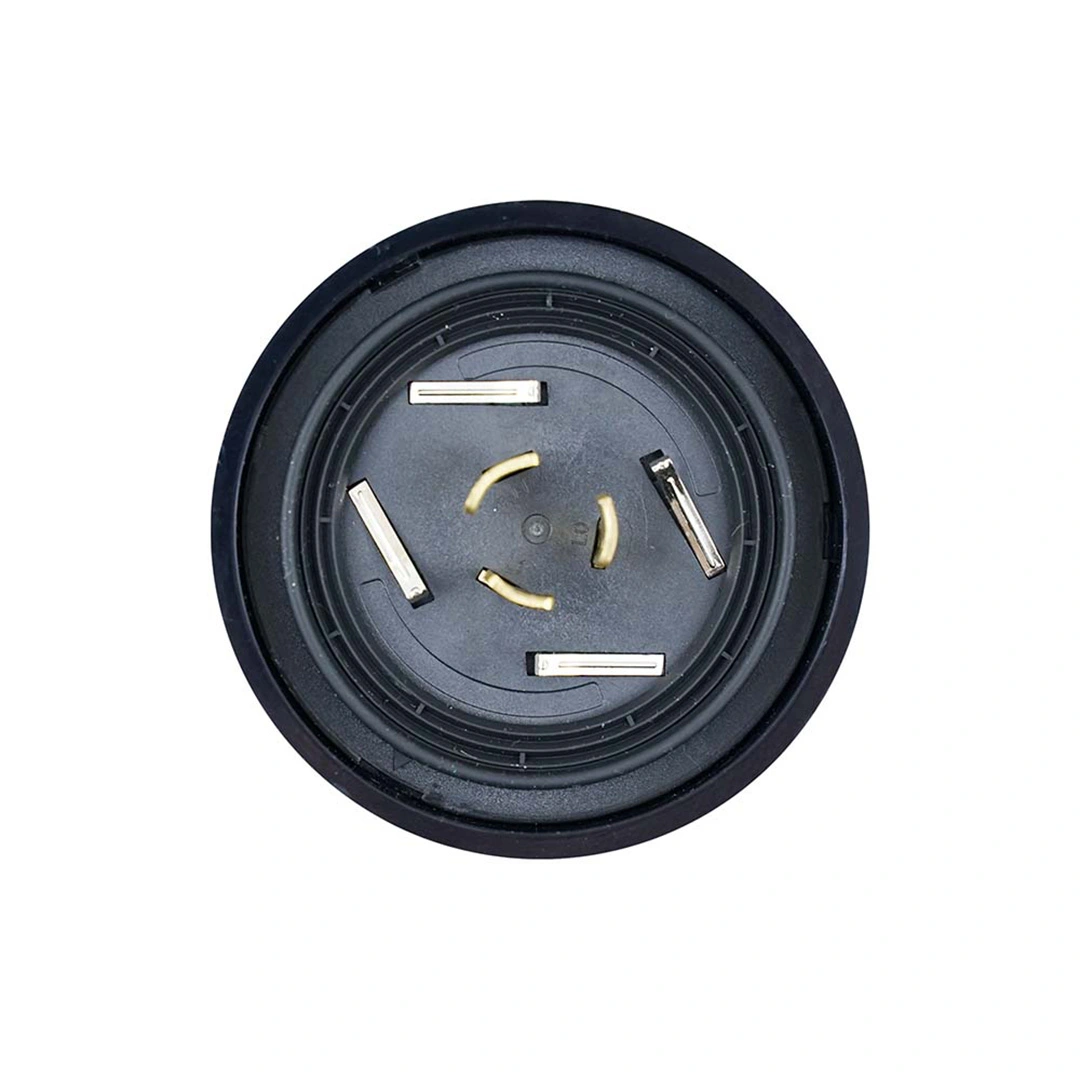

In order to improve the reliability of installation and the convenience of operation and maintenance, the single light controller must have a 7-wire base interface (NEMA interface) that meets the requirements of ANSI C136.41 to achieve reliable electrical and mechanical interconnection with the lamp. The structure example is shown in the figure below:
Transportation & Storage
|
Storage Temperature |
-40℃～+85℃ |
|
Storage Humidity |
Avoid damp and waterlogged environments |
|
Transportation Notes |
Falling from high altitudes and excessive accumulation are strictly prohibited |
