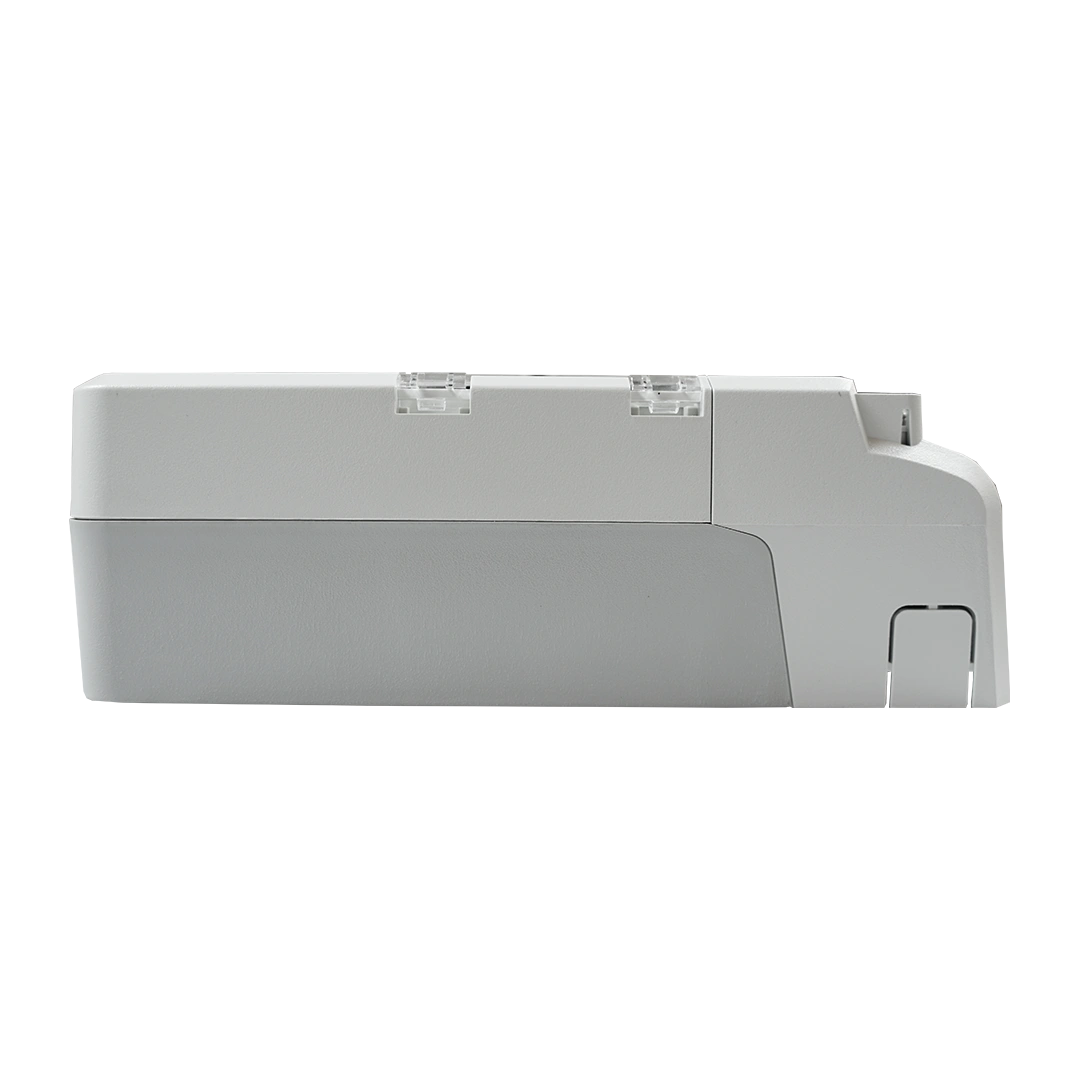

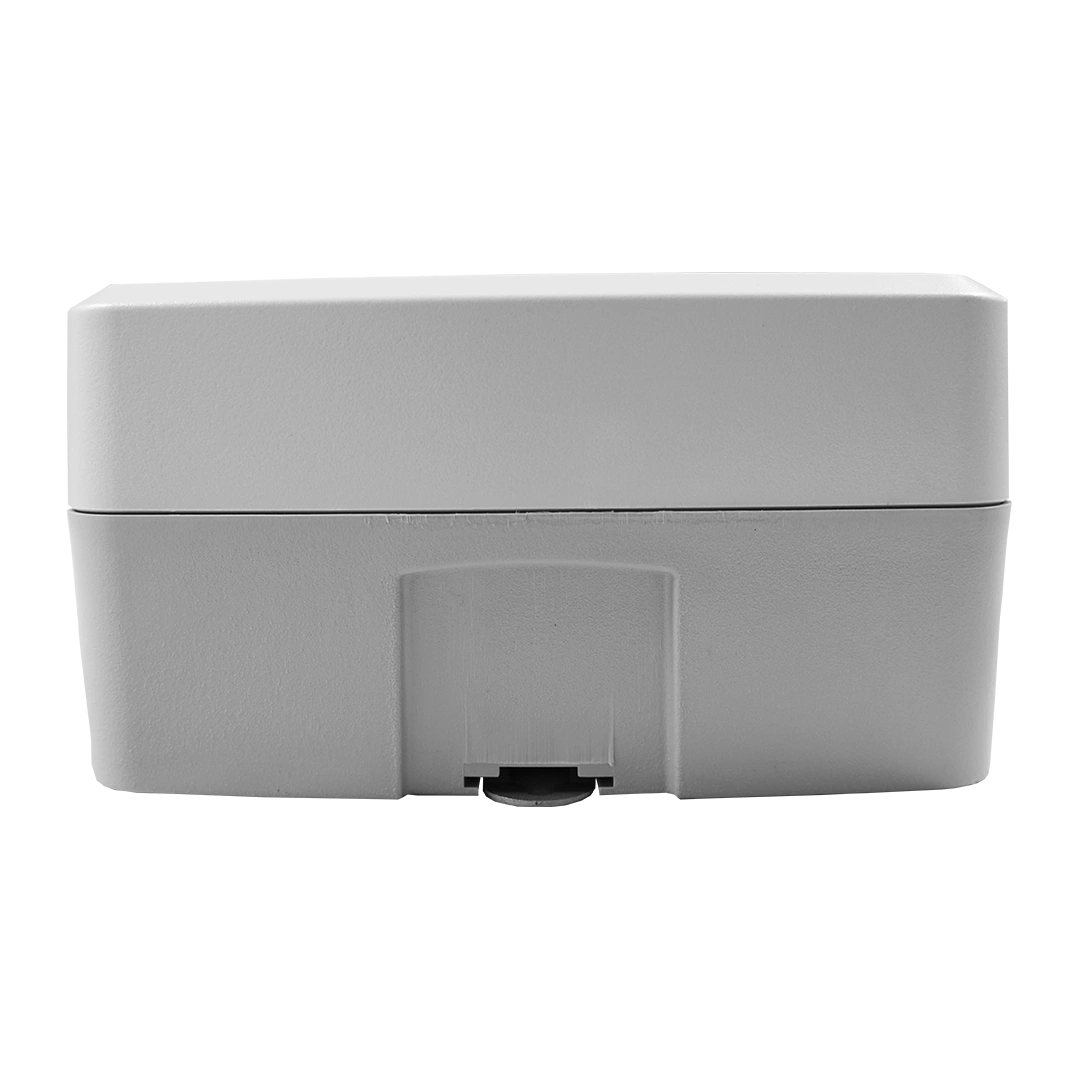

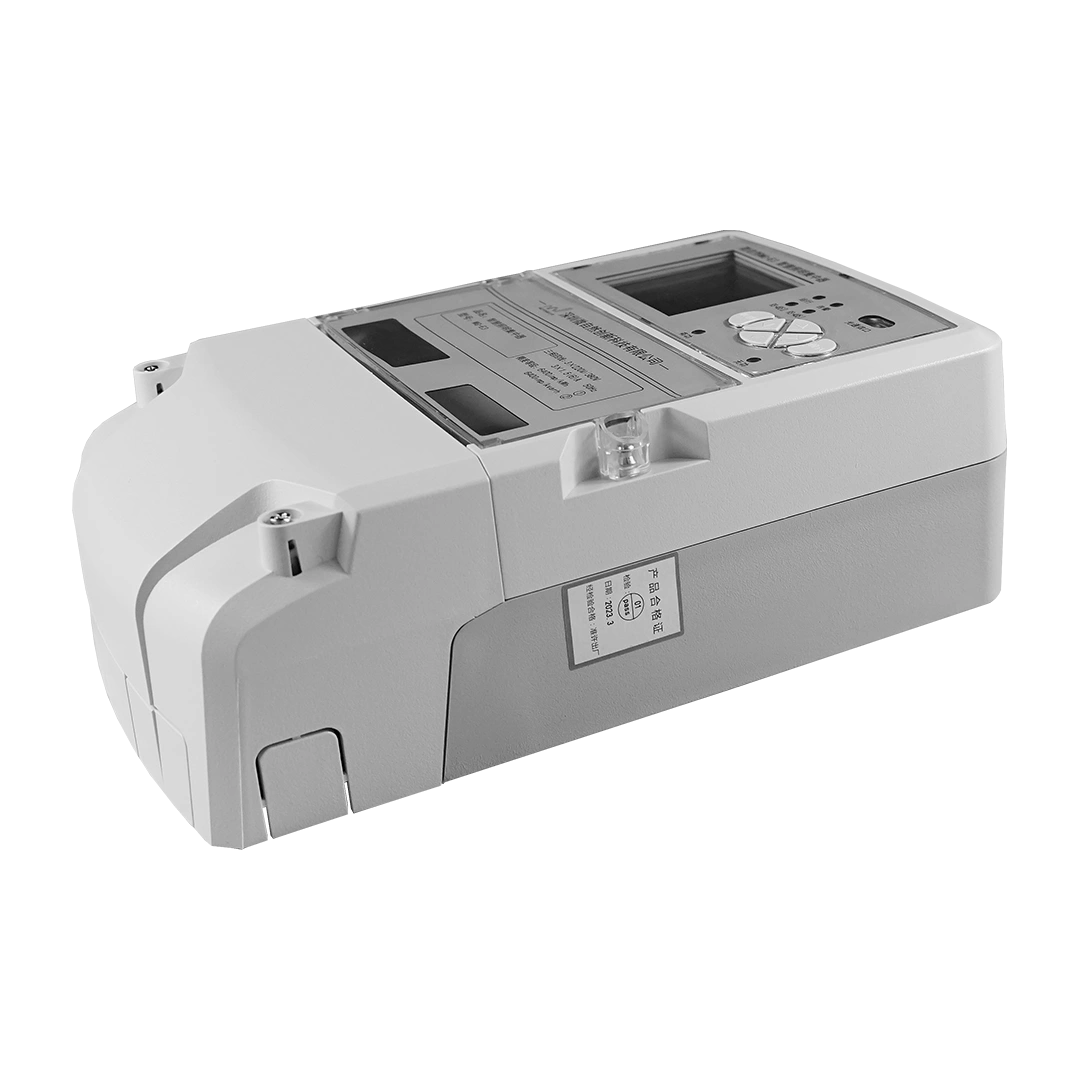

PLC Data Concentrator Unit
Smart Concentrator Gateway with PLC-IoT Communication
Smart Concentrator Gateway adopts the latest generation of PLC-IoT (Power Line Communication + Internet of Things) technology, enabling seamless data transmission through existing power lines. It works with single light controllers or PLC smart drive power supplies as a central communication hub that connects devices to cloud-based big data platforms.
The MG-E3 supports communication management, data transmission, protocol conversion, and data processing, empowering users to remotely monitor, analyze, and control electrical equipment anytime, anywhere.
Complying with the State Grid concentrator standard, this gateway delivers exceptional electromagnetic compatibility (EMC) and resists interference from high-voltage spikes, magnetic fields, static electricity, and lightning surges.
Built for durability, the MG-E3 features a sealed ABS enclosure that is both waterproof and flame-retardant, along with a lightweight, wall-mounted design for easy installation and long-term reliability in demanding industrial and outdoor environments.
Ideal for street lighting, smart city infrastructure, industrial energy systems, and IoT communication networks, the MG-E3 ensures stable connectivity, high safety, and intelligent data management.
Product Advantage
- Utilizes the latest generation of PLC-IoT communication technology with external LD for stronger signals and extended communication range.
- Powered by a fast 32-bit ARM processor and Linux operating system.
- Employs ModBus encryption algorithms to ensure secure communication and prevent data leakage.
- Supports disconnection and reconnection, abnormal recovery, and system self-monitoring to maintain real-time online status and normal system operation.
- One gateway can support up to 499 devices.
- Point-to-point communication distance of up to 2 km.
- Supports Mesh networking technology.
- Allows for remote upgrades.
- Memory capacity: 256MB
- Protection grade: IP52
- Operating temperature: -40℃~+70℃
- Dimensions: 290mm (L) * 175mm (W) * 95mm (H)
Product Parameters
| Voltage and Current Specifications | |||
| Rated Voltage | 3*220V/380V | Rated Current | 3*1.5A |
| Electrical Parameters | |||
| Operating Voltage | 0.7Un-1.3Un | Frequency | 50Hz±5% |
| Voltage Line Power Consumption | ≤15VA | Current Line Power Consumption | ≤0.5VA |
| Climate Conditions | |||
| Operating Temperature | -40℃～70℃ | Operating and Storage Humidity | ≤95% |
| Reliability Index | |||
| MTBF | ≥7.4 104h | Design Life | 15 years |
| Hardware Interface | |||
| Remote Communication Interface | 1 channel, standard 4G | Local Communication Interface | 1 channel, configured on demand |
| Status Quantum Detection | 5 channels | Pulse Output | 3 channels |
| RS485 Interface | 2 channels | RS232 Interface | 1 channel |
| USB Interface | 1 channel | Infrared Interface | 1 channel |

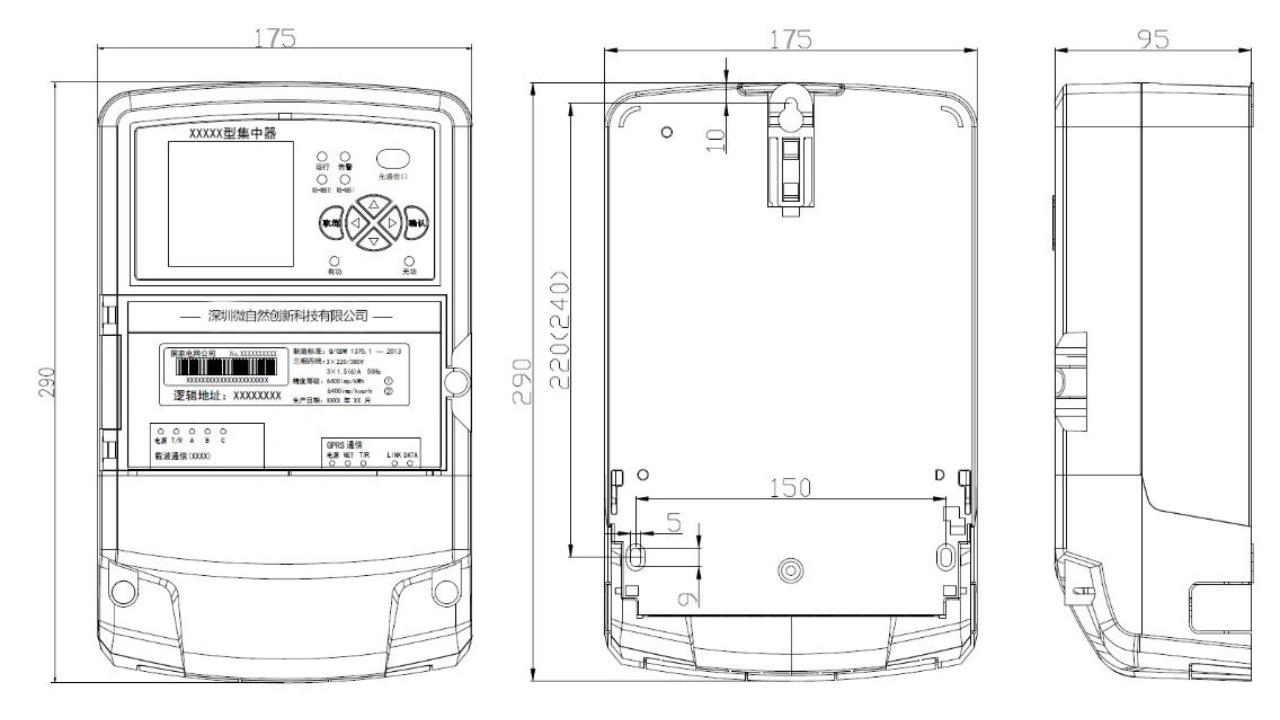

Dimensions

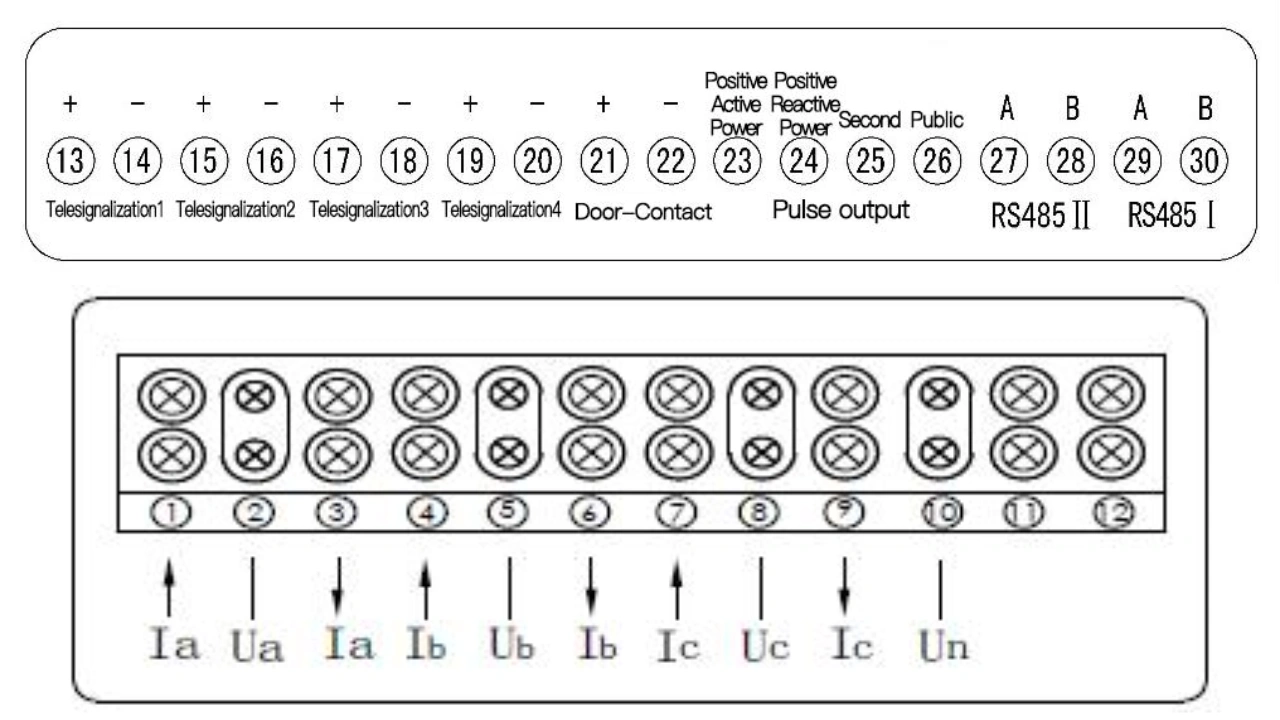

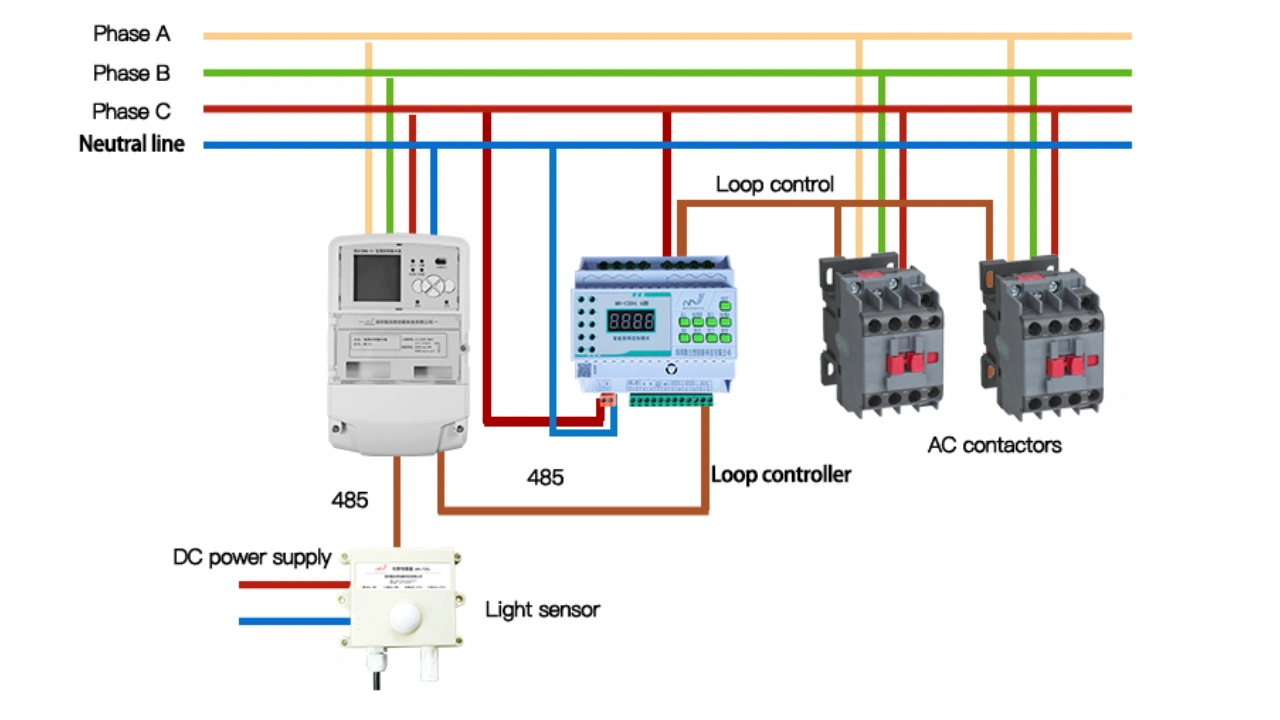

Note: The concentrator supports three-phase electricity, Ua—A phase electricity, Ub—B phase electricity, Uc—C phase electricity, and Un—neutral line. (For single-phase electricity, it is recommended to connect the live wire to Ub and the neutral wire to Un).
Note: Do not connect 'L' (live wire) and 'N' (neutral wire) incorrectly to avoid affecting the normal operation.

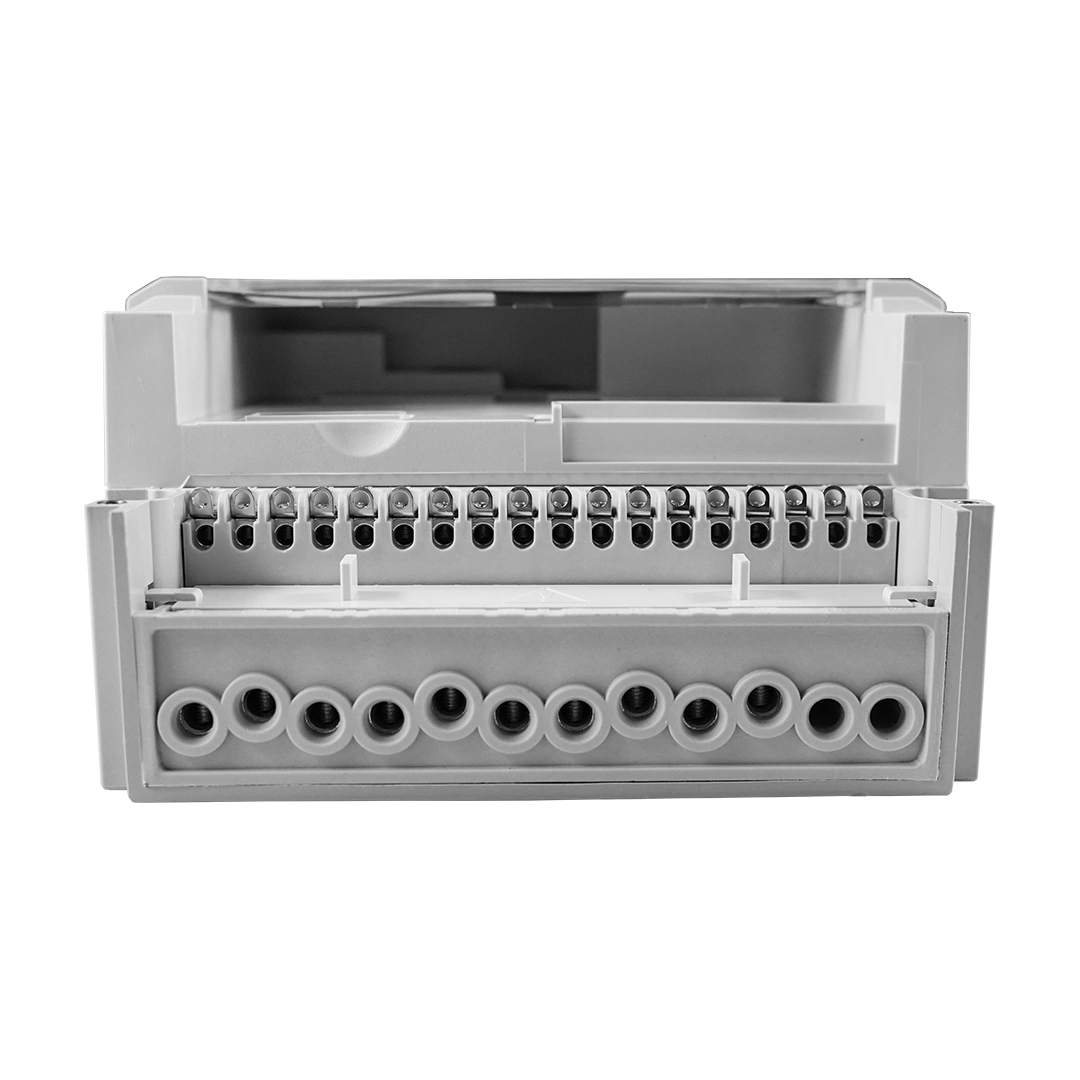

Installation Instructions
Install and fix the terminal in the power distribution cabinet, determine the terminal operating voltage, current, and wiring method according to the terminal type (see the label on the front panel), and connect the wiring of each voltage and current terminal. Open the front panel of the terminal, insert the SIM card with the GPRS service function activated, and insert the rechargeable battery attached to the terminal. After checking the wiring, power on and run.
Operation Button Description

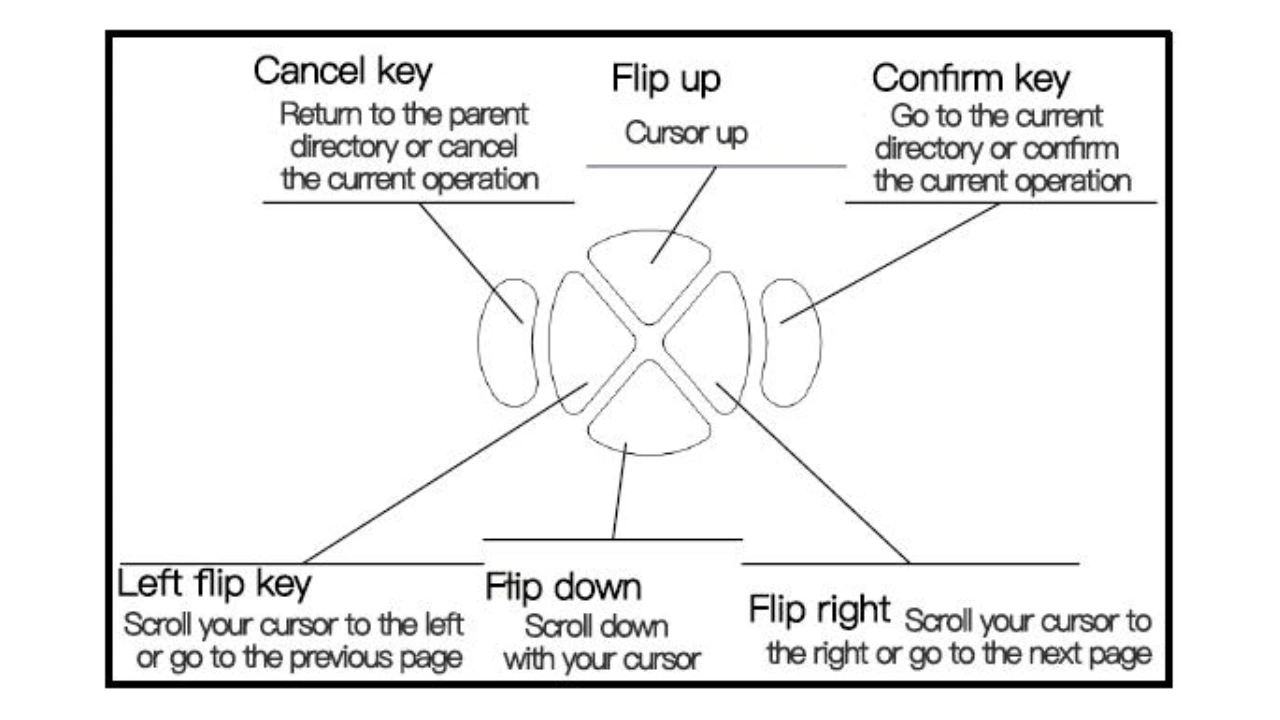

This terminal uses six-button operation. Users can use the USB interface and buttons to configure the gateway and query gateway information. For specific operations, please refer to the "Micronature Inwu Cloud Platform User Manual". The button description is shown in Figure 6.
You Might Also Like
FAQ
1. What is the MG-E3 Smart Concentrator Gateway?
The MG-E3 Smart Concentrator Gateway is an advanced PLC-IoT communication device that collects and transmits data through existing power lines. It connects with single light controllers or PLC smart drive power supplies, enabling cloud-based monitoring and remote control for smart lighting and industrial systems.
