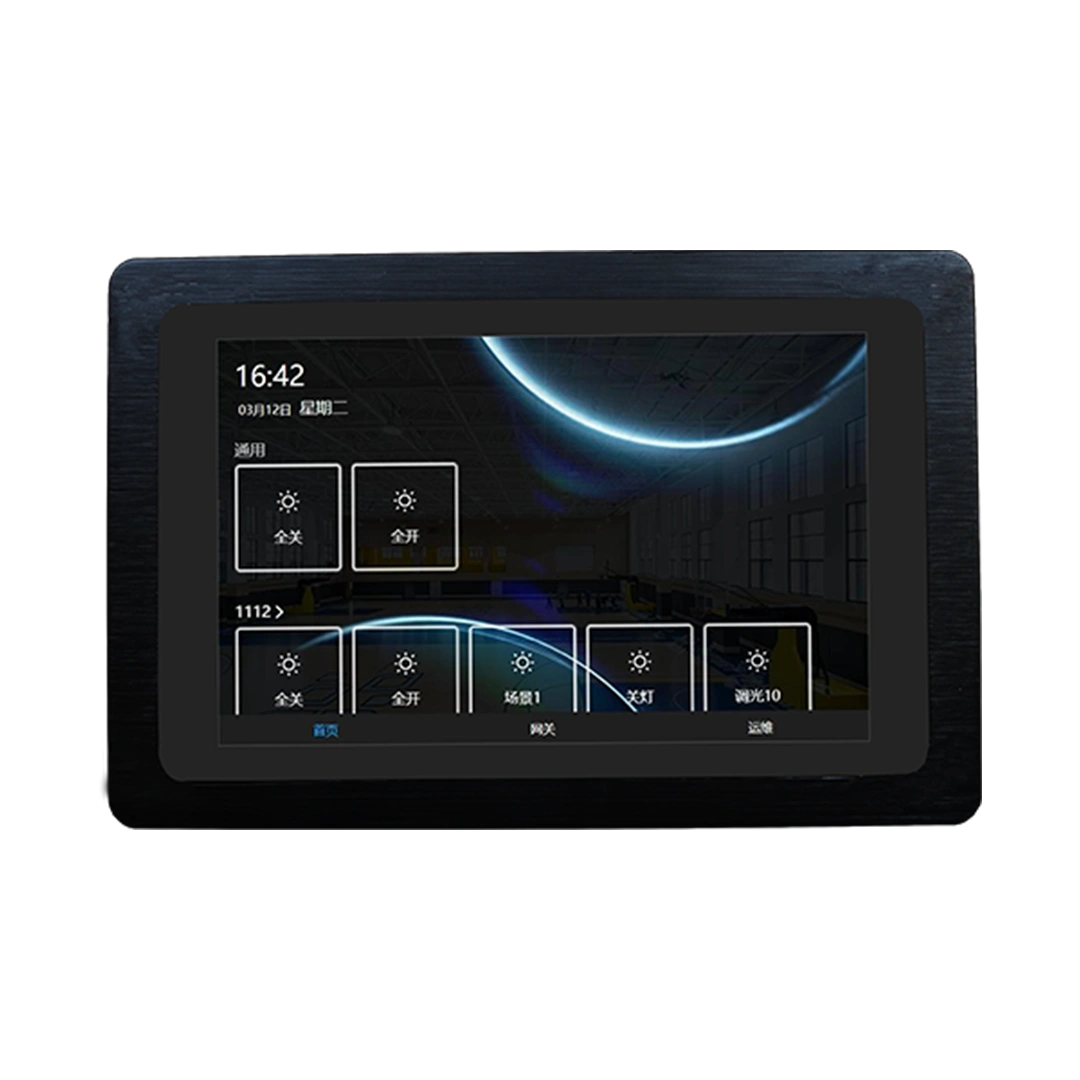

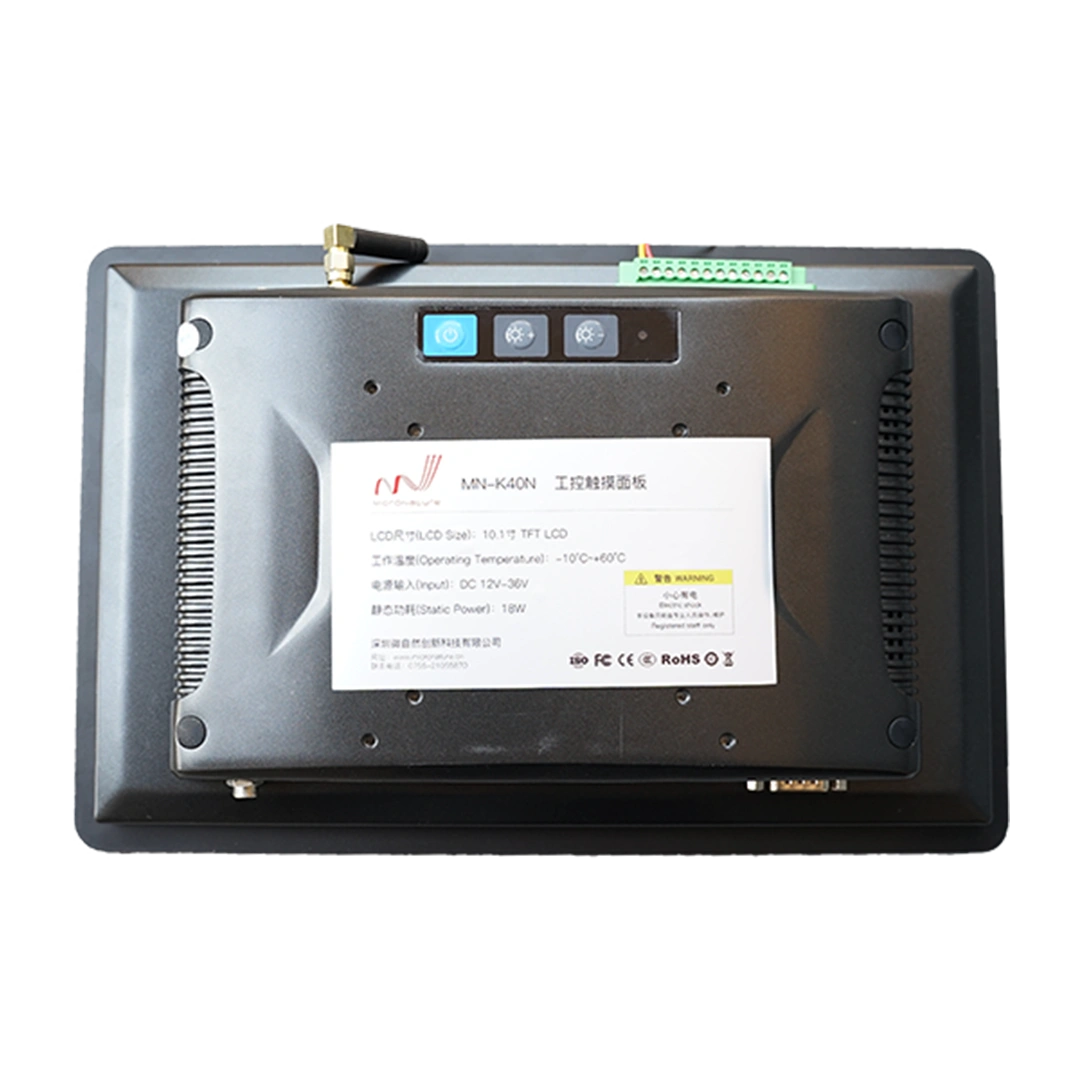

MN-K40N Industrial Smart Panel with Built-in AI NPU
The MN-K40N features an integrated Neural Processing Unit (NPU) delivering 1 TOPS of AI computing power, enabling lightweight AI application development for intelligent control and edge computing. This powerful yet compact device is ideal for industrial automation, machine vision, and smart IoT applications.
With a 3mm ultra-thin front panel, the MN-K40N offers a seamless fit into various industrial cabinets and control consoles, providing a sleek, modern design without visible gaps. Its fanless, fully enclosed architecture ensures IP65-rated protection against dust and water on the front panel, guaranteeing reliable operation in demanding environments.
Engineered for scalability, practicality, and excellent EMC compatibility, the MN-K40N combines robust performance, durability, and AI intelligence—making it the perfect solution for next-generation industrial and commercial systems.

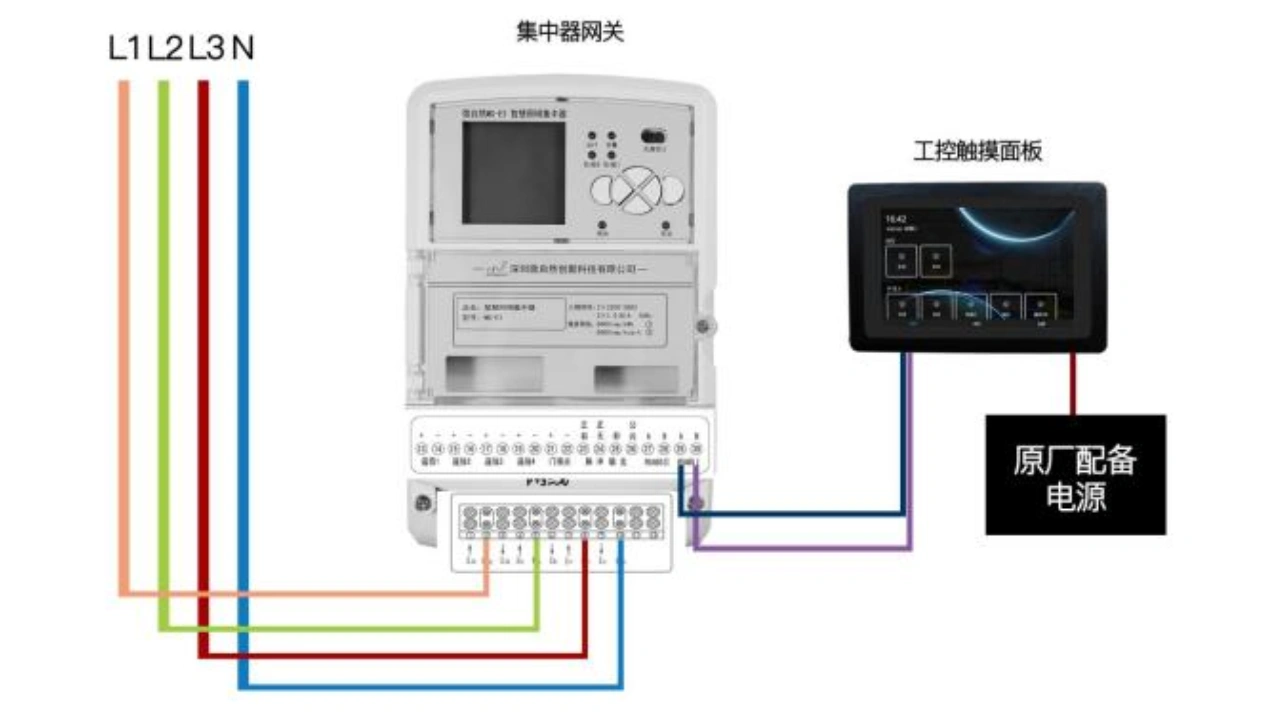

Industrial Control Panel Switch Interface
Note: If used with the gateway, an independent 485 port is required and cannot be shared with other devices.
Product Advantage
- The front frame is only 3mm thick and is designed for embedded installation applications
- High precision die casting aluminum molding, pure plane drawing process design, dustproof and waterproof
- Independent R & D ARM architecture industrial motherboard, a variety of solutions are available
- RK3568 quad-core 64-bit Cortex-A55 core architecture, main frequency up to 2.0GHz
- Built-in independent NPU with 1TOPS AI computing power
- Control the controller to realize intelligent lighting application
Product Parameters
| Industrial terminals | 1*12P Phoenix terminal (power supply/RS232*1/RS485*1/CNA*1/GPIO*3) selected |
| Power interface | 1*DC2.1, support wide voltage 12V-36V power supply |
| USB | 2*USB3.0 |
| TF block | 1*TF card standard interface |
| SIM block | 1* SIM card standard interface (optional) |
| HDMI | 1*HDMI,, supports HDMI data output |
| internet access | 1*LAN, 10M/100M/1000M adaptive Ethernet |
| Audio interface | 1*Audio I/O, support audio input/output, earphone jack: 3.5mm standard interface |
| COM | 1*RS23 |
| reset key | Support (1*UBOOT) |
| Wifi antenna | 1*Wifi antenna |
| earthing rod | 1* Grounding column (GND) |
| LCD size | 10.1 inch TFT LCD |
| resolution ratio | 800*1280 |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| pigment | 16.7M |
| luminance | 300 cd/m2 |
| contrast ratio | 1000:1 |
| Touch type | 10 Point touch projection capacitive touch screen | Single point resistive touch screen | Non-touch |
| light transmittance | ≥88% | ≥78% | ≥92% |
| input pattern | Handwritten or capacitive pen | Fingertip or stylus | / |
| Controller communications | USB | USB | / |
| CPU | RK3568, quad-core 64-bit Cortex-A55 core architecture, main frequency up to 2.0GHz |
| internal storage | 2G LPDDR4 (optional 4G/8G) |
| memory | 32G eMMC (optional 64G/128G) |
| GPU | ARM Mali-G52 2EE |
| NPU | Built-in NPU with 1TOPS AI computing power |
| Wi Fi | support WIFI |
| operating system | Android 12.0、 Linux 5.10 |
| power input | DC 12V-36V |
| quiescent dissipation | 18W |
| Size of appearance | W293.6 mmx H 193.6 mmx D53.5mm |
| Opening dimensions | W276.5 mm x H 176.5mm |
| working temperature | -10°C ~60°C |
| Storage temperature | -20°C ~70°C |
| relative humidity | 95% non-condensable |
| Vibration protection | IEC 60068-2-64， random， 5 ~ 500 Hz， 1 hr/axis |
| Impact protection | IEC 60068-2-27, half sine wave, duration 11ms |
| product certification | CCC/CE/FCC/EMC/CB/ROHS |
| classification of waterproof |
The front panel is IP65 rated |

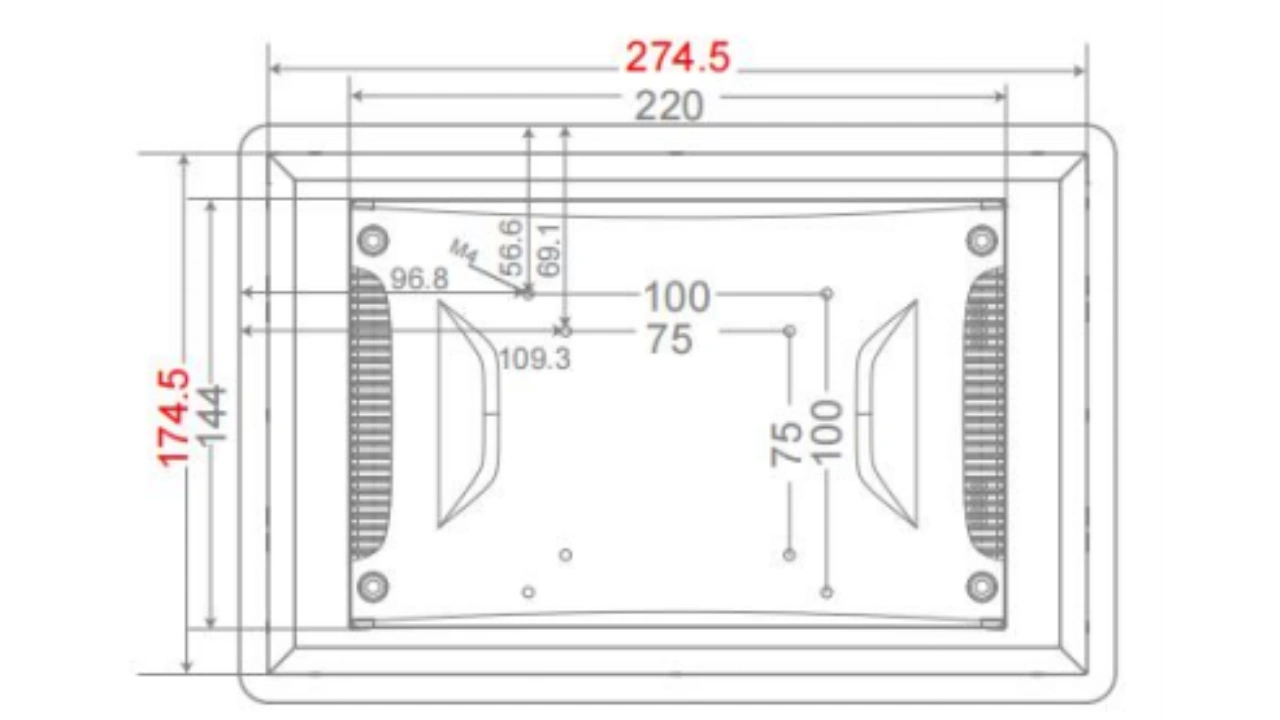

Dimensions
You Might Also Like
FAQ
1. What is the MN-K40N Industrial Smart Panel?
The MN-K40N is a next-generation industrial smart panel with a built-in Neural Processing Unit (NPU) that delivers 1 TOPS of AI computing power. It enables lightweight AI processing for edge computing, automation, and intelligent control systems.
