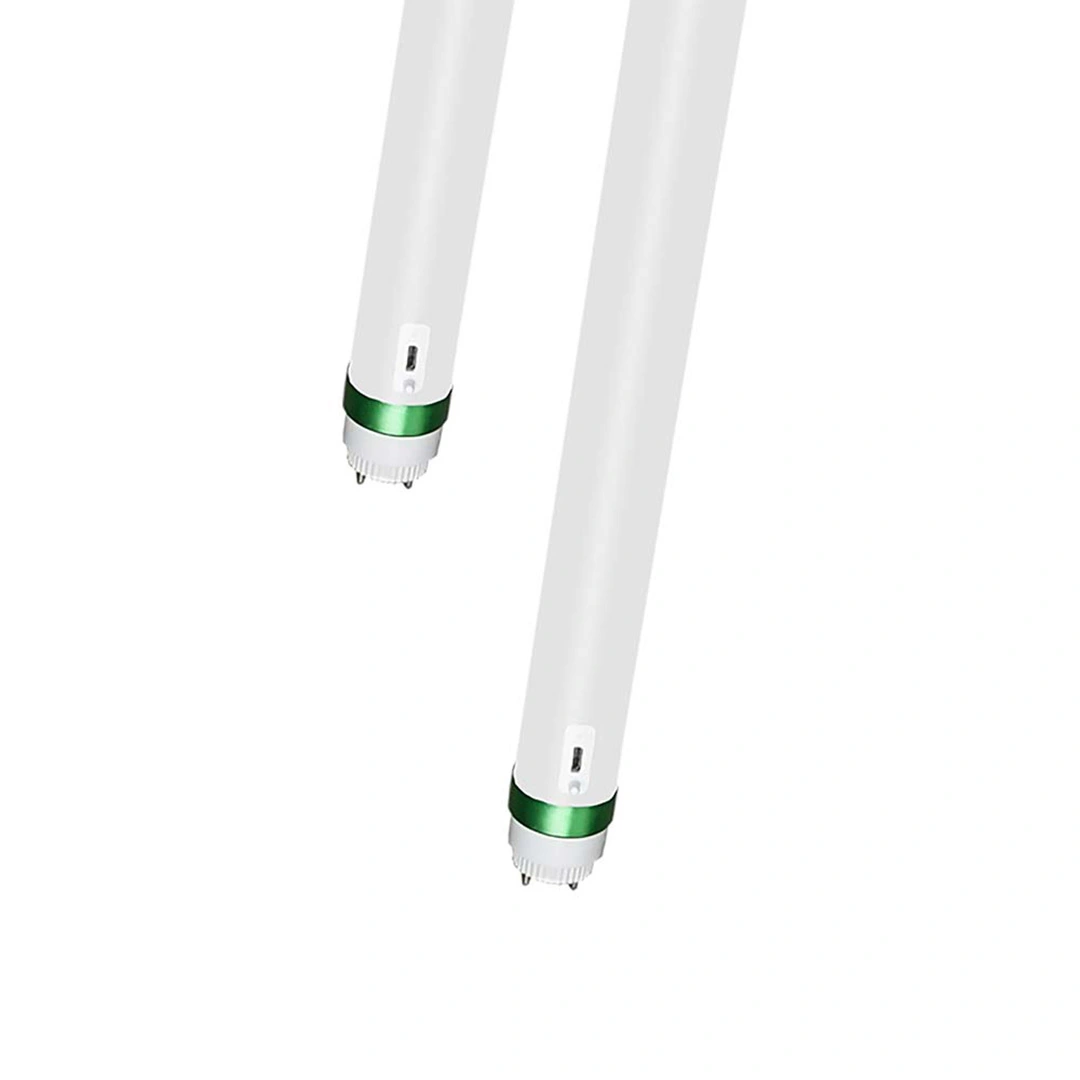

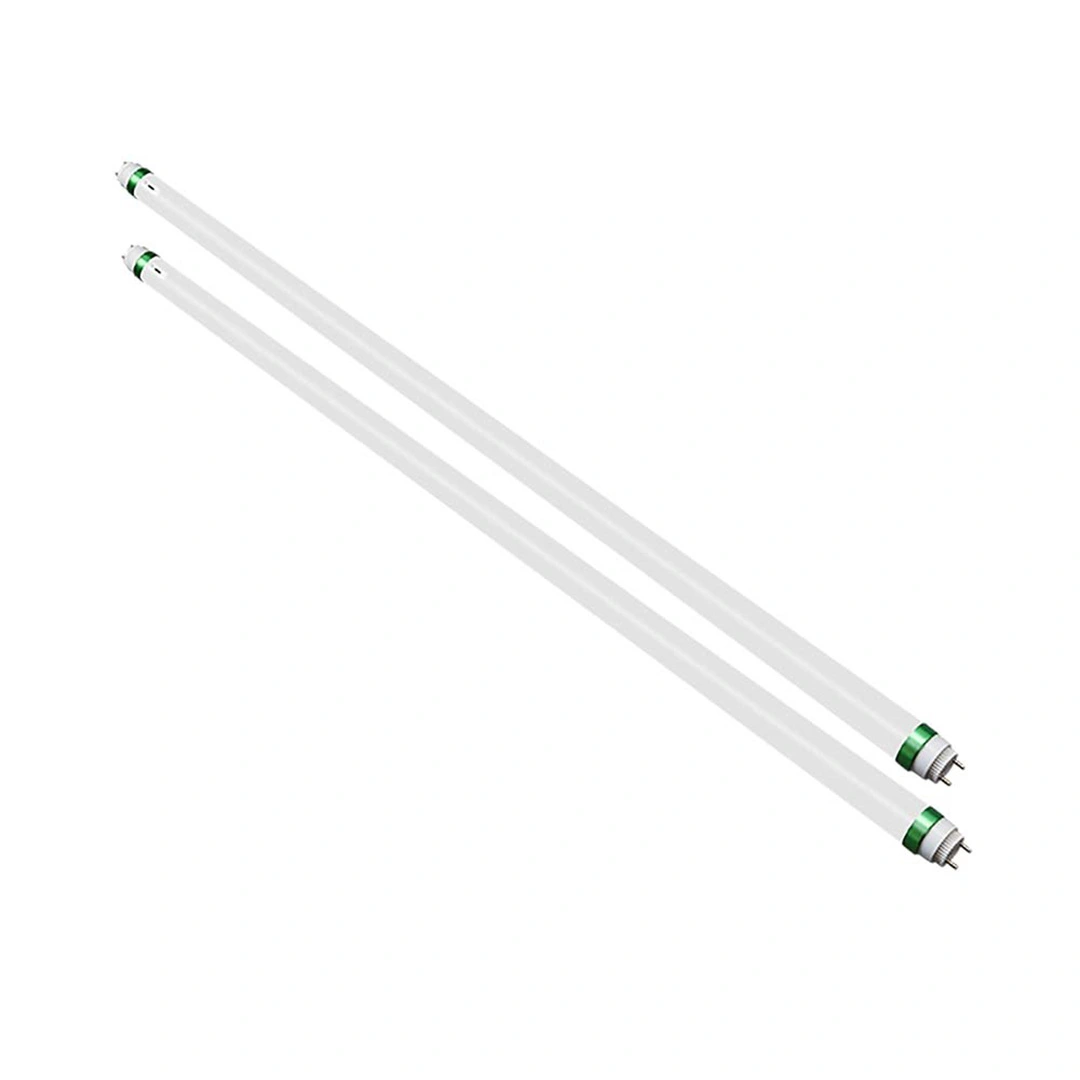

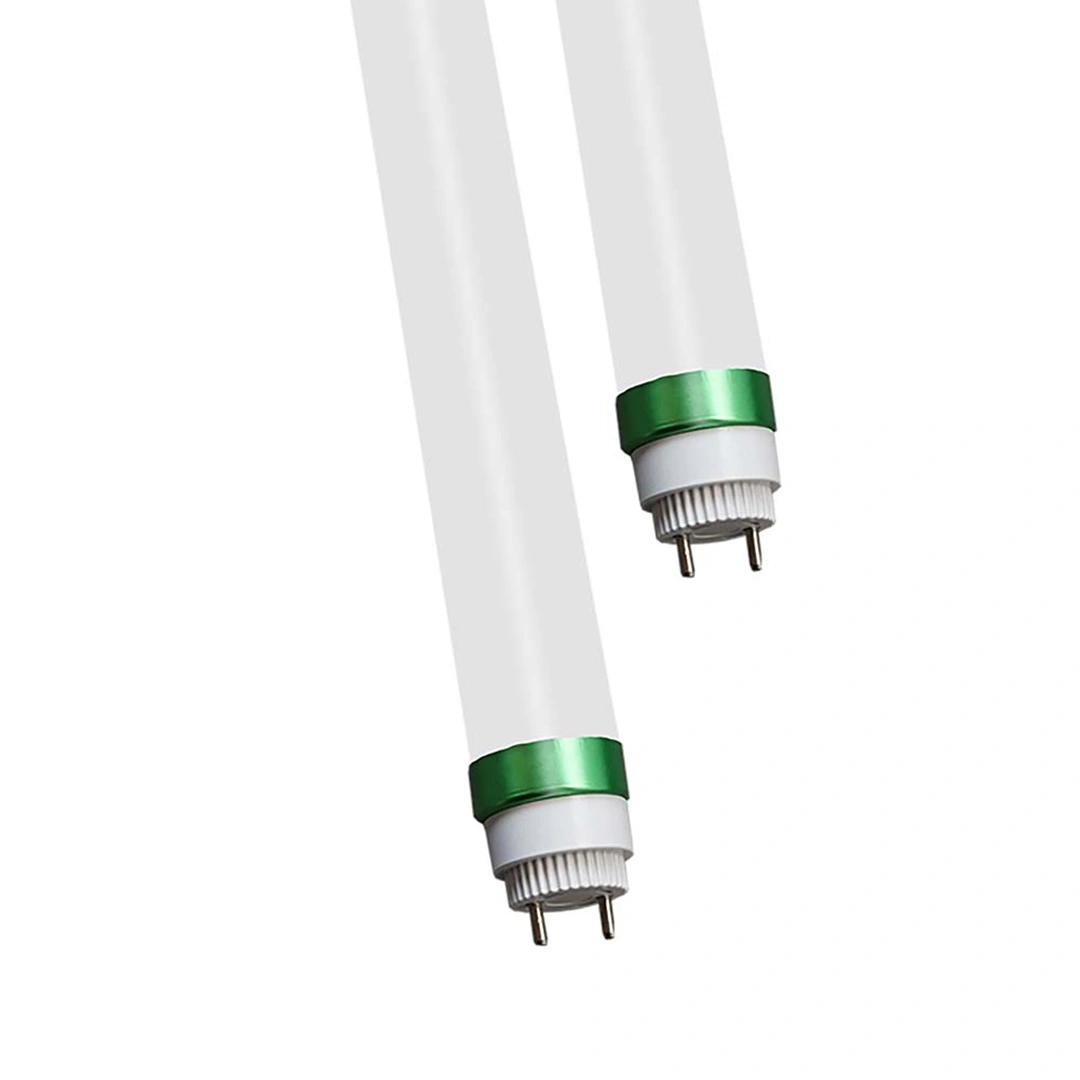

PLC T8 Tube Light
PLC T8 Tube Light with Built-in Microwave Sensor | Smart Energy-Saving LED Tube
The PLC T8 Tube Light integrates Power Line Communication (PLC) technology with a built-in microwave motion sensor, providing a smart and energy-efficient lighting solution for modern environments. Designed for intelligent lighting control, it allows precise motion detection and adjustable brightness (1%–100%), automatically optimizing illumination based on occupancy and activity.

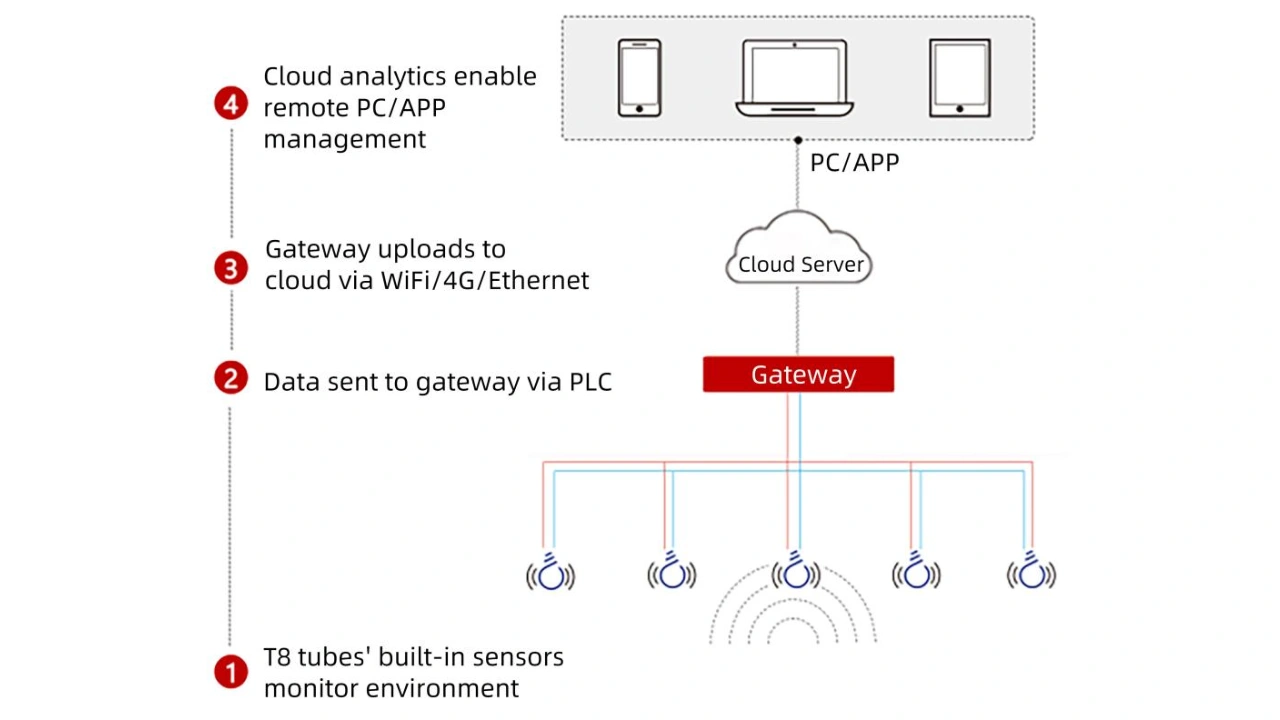

This advanced PLC-enabled LED tube communicates seamlessly through existing power lines—no extra wiring required—making installation simple and cost-effective. It’s ideal for smart buildings, warehouses, offices, parking lots, and industrial facilities, where energy efficiency and intelligent automation are essential.
Product Advantage
- PLC Power Line Communication Technology for reliable connectivity.
- Simple, fast, and safe direct replacement with existing fixtures.
- Radar microwave sensor enables automatic dimming (brightens when vehicles approach, dims when they leave), ensuring high efficiency and energy savings.
- Long lifespan with low lumen degradation, backed by a 5-year warranty, significantly reducing maintenance costs.
- Stable operation in low temperatures (-20°C to +45°C).
- Ideal for: Parking lots, corridors, stairwells, large warehouses, and similar environments.
Product Parameters
| Sensing Type | Detection Range | Full Brightness | Dim Mode | Sensing Timing |
| Microwave | 5-8m | 230mA | 30-50mA | The fixture activates in dim mode (30-50mA) and instantly switches to full brightness (230mA) upon motion detection. After 30±5 seconds without motion, it returns to dim mode. Continuous motion keeps the fixture at full brightness without dimming. |
| 18W±10% | 2-3W |
- Built-in motion sensor (microwave sensor) is installed at one end of the fixture.
- Avoid:
- Obstruction by metal components (must face downward).
- Proximity to magnetic fields (may cause malfunction).
- Nearby moving objects (e.g., fans) to prevent false triggers.
- Recommended: Install fixtures <5m apart for optimal coverage.

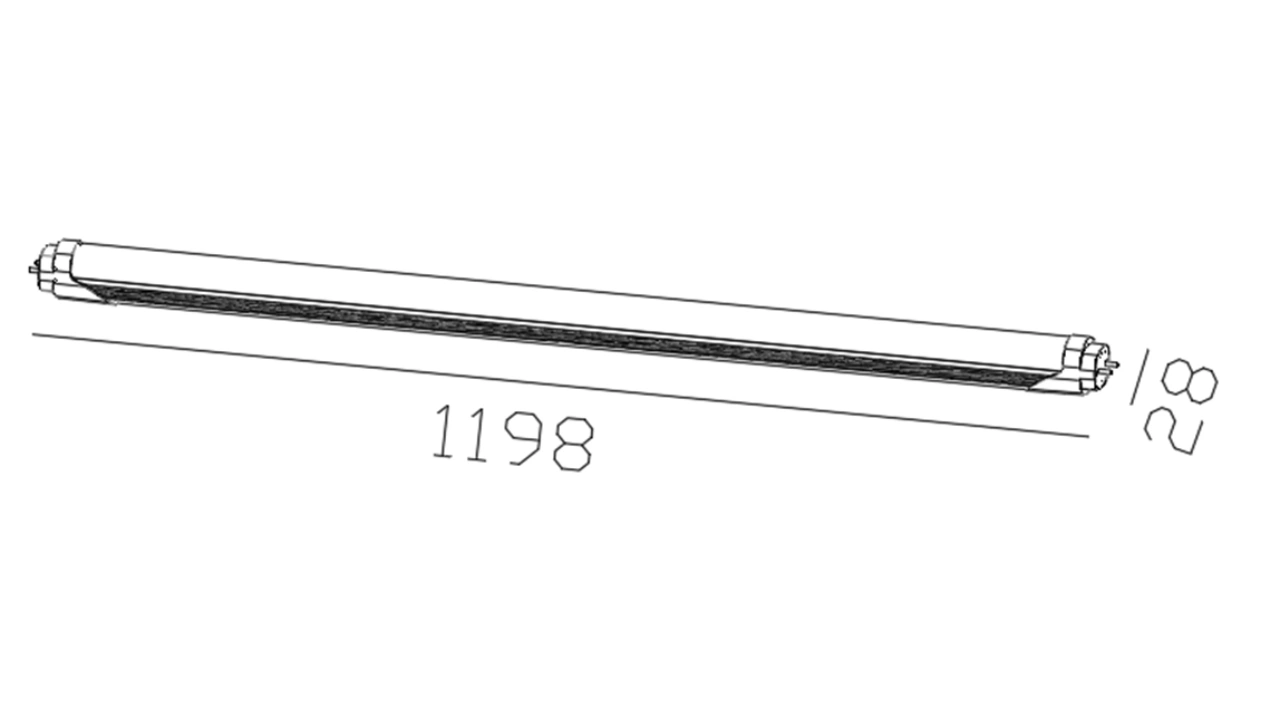

Dimensions

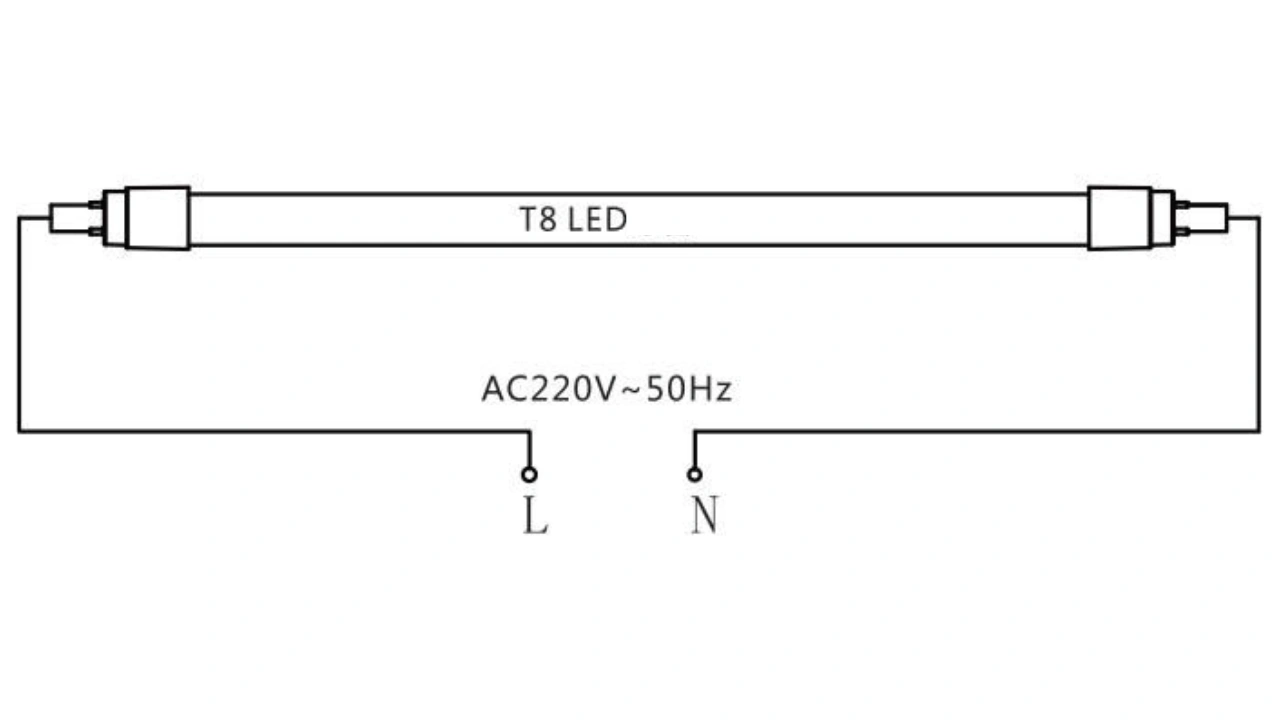

Wiring Method

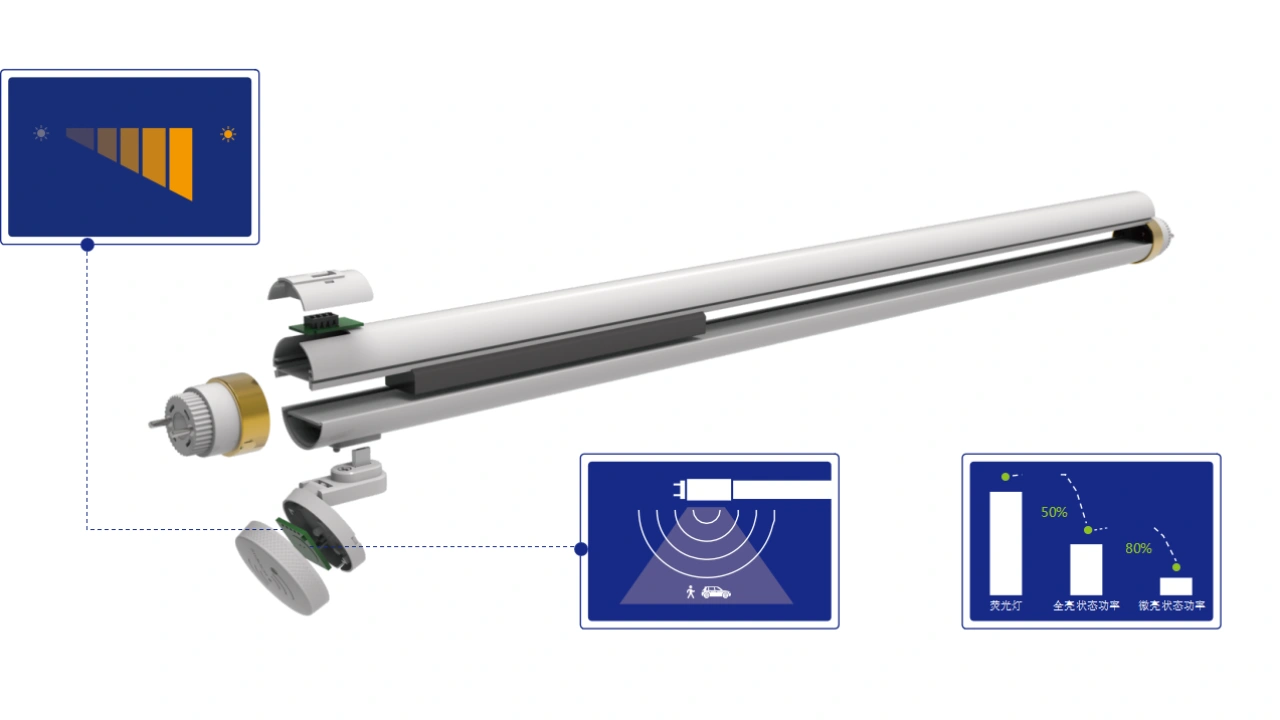

Product Schematic Overview
- Built-in Microwave Sensor for precise motion detection.
- Adjustable Brightness (1%-100%) to optimize lighting based on activity, enhancing user experience while maximizing energy savings.
You Might Also Like
FAQ
1. What is a PLC T8 Tube Light?
The PLC T8 Tube Light is a smart LED tube that uses Power Line Communication (PLC) technology to transmit control signals directly through existing power lines. It enables remote lighting management without additional wiring, making it ideal for smart buildings, offices, and industrial lighting systems.
