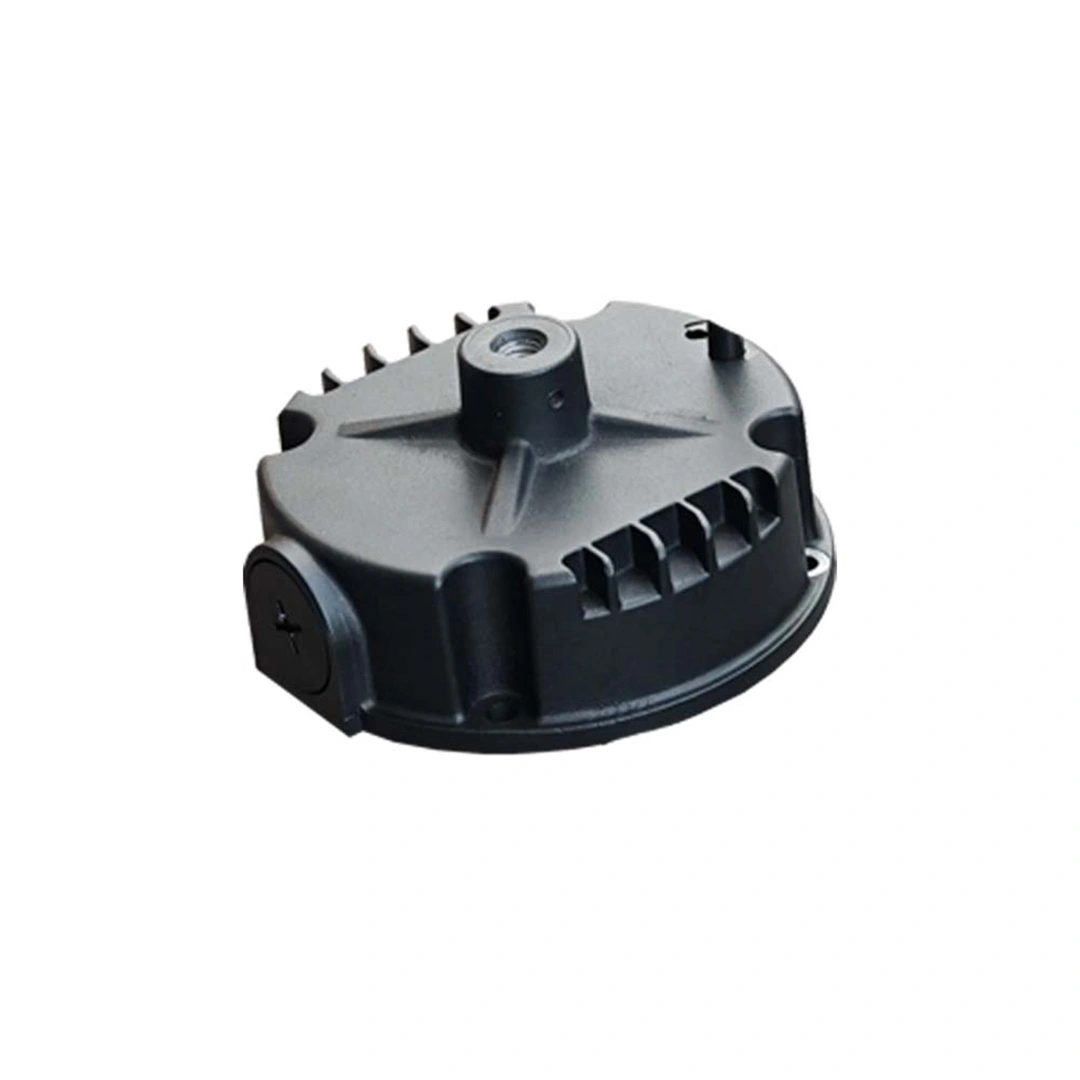

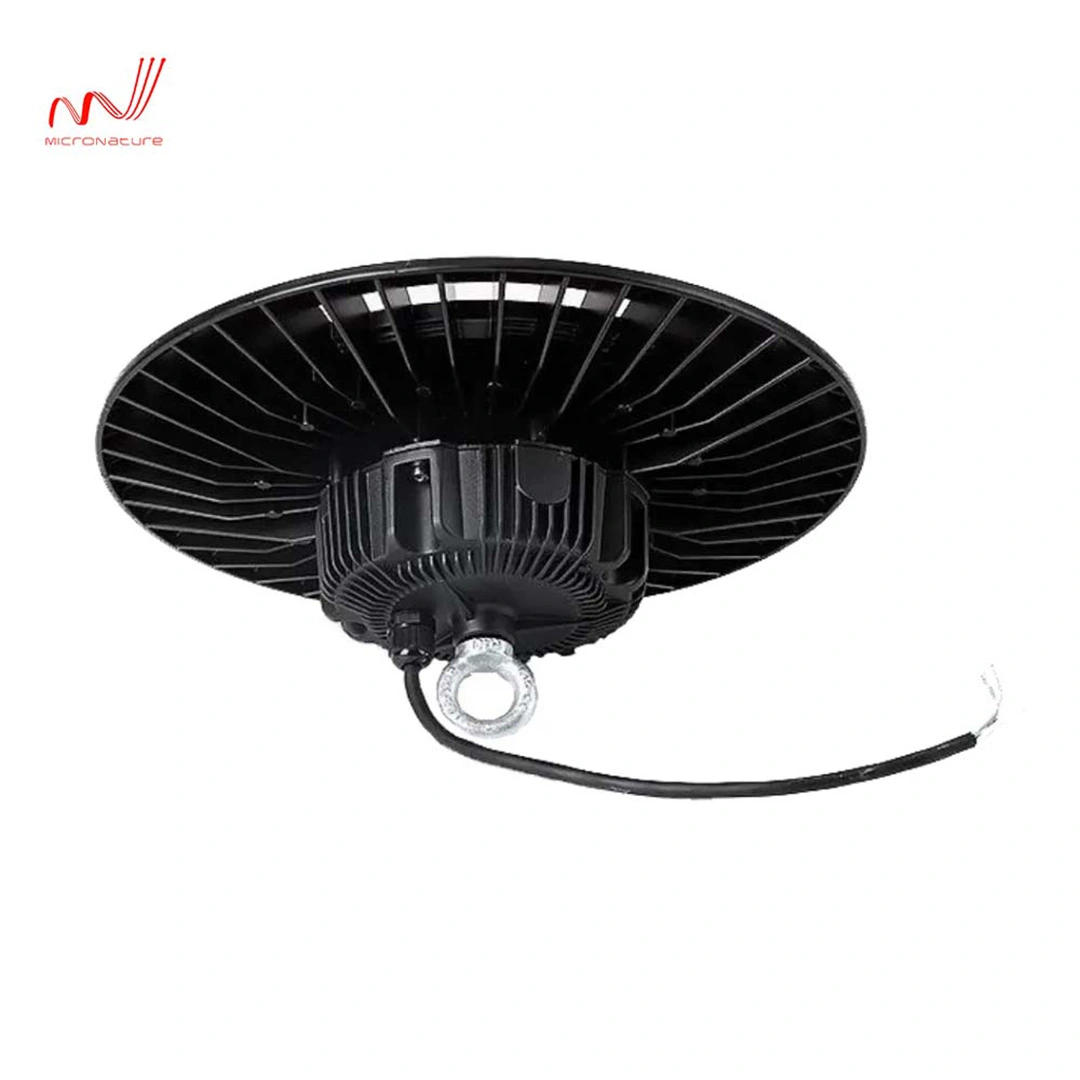

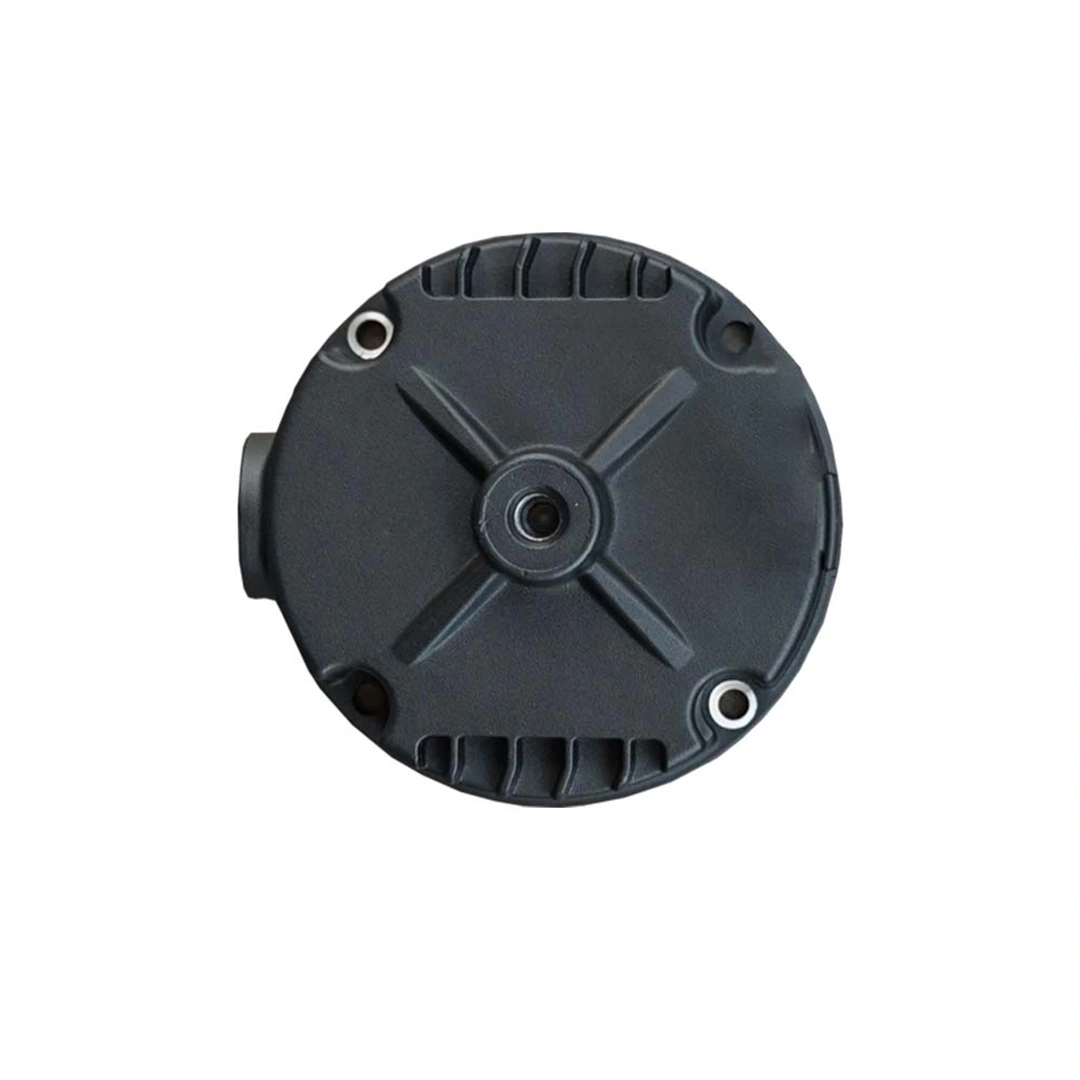

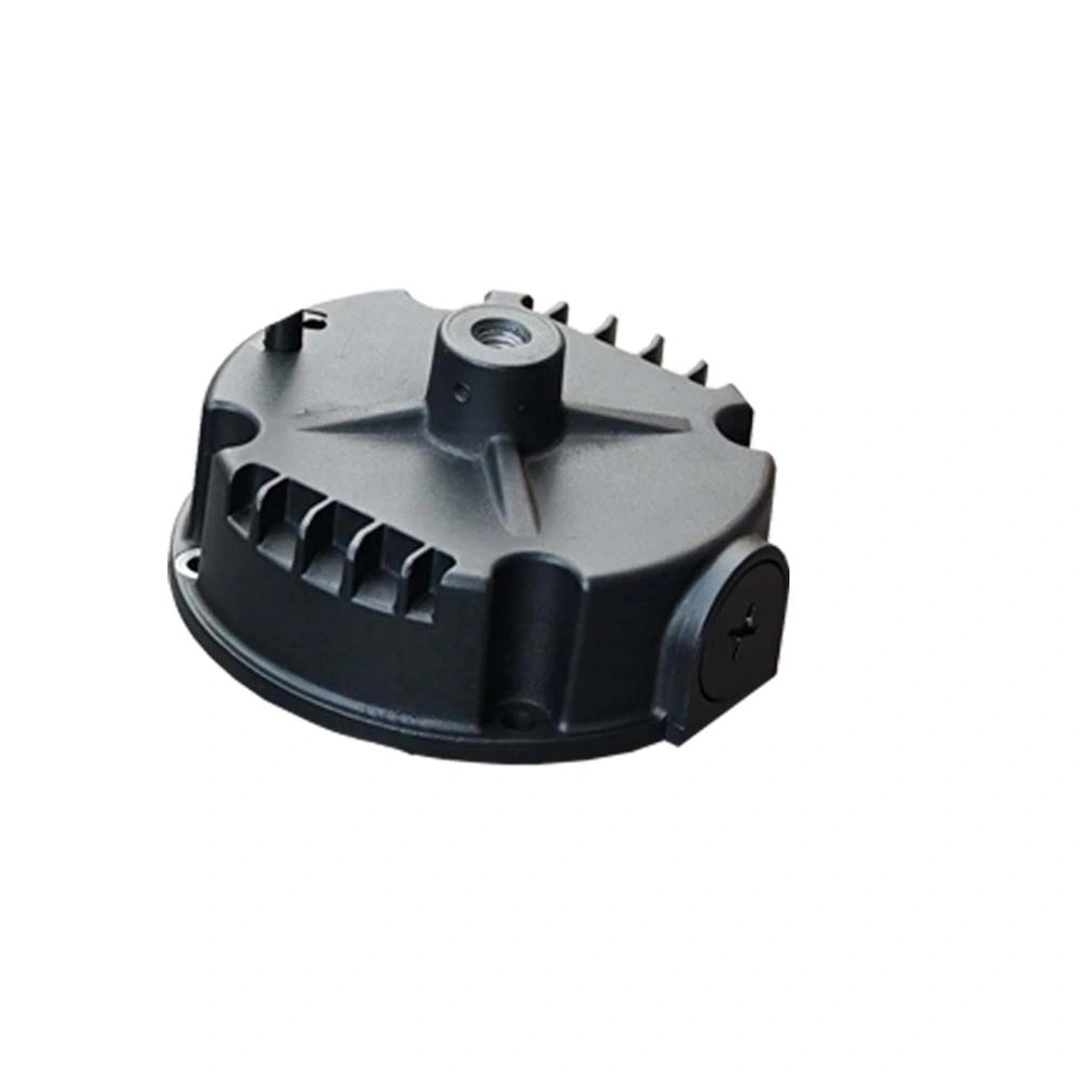

UFO High Bay Light
UFO Smart LED Driver + Lamp | Intelligent Lighting Control
The UFO Smart LED Driver + Lamp combines high-efficiency LED lighting with intelligent control capabilities for modern lighting systems. Users can view and manage the status of all lamps through a central computer, as well as via mobile APP or mini program, offering convenient remote monitoring and control.
Designed for energy-efficient and smart lighting applications, the system supports precise dimming, scheduling, and group control, enabling seamless integration into industrial, commercial, and outdoor lighting networks. Each lamp can operate autonomously or under centralized management, ensuring reliable operation even if one device or zone experiences a fault.
Product Advantage
- Built-in power carrier communication chip.
- Remote control, remote dimming.
- 1%-100% arbitrary dimming output.
- The default light is on when powered on.
- Under-voltage/over-voltage/over-temperature/short circuit protection.
- Certification: UL, CUL.
- Certification complies with: PSE, CQC, FCC, CE, ROHS.
Product Parameters
| Parameter | Min | Typical | Max | Note |
| Rated Input Voltage Range | 100Vac | 100-277Vac | 305Vac | |
| Input Voltage Range | 90V | 305V | ||
| Input Frequency Range | 47Hz | 50/60Hz | 63Hz | |
| Max Input Current | 2.1A | 120Vac, full load | ||
| Max Input Power | 248W | 120Vac, full load | ||
| Max Surge Current Peak（ 120Vac） | 60A | Cold start | ||
| Max Surge Current Peak（ 230Vac） | 80A | Cold start | ||
| Max Surge Current Peak（ 270Vac） | 100A | Cold start | ||
| No-load Power Consumption | 0.4W | 230Vac/60Hz, no load | ||
| Power Factor | 0.962 | 0.978 | 230Vac/60Hz, full load | |
| 0.930 | 0.999 | 100-277Vac/60Hz, 80-100% full load | ||
| Total Harmonic Distortion | 5.6% | 6.5% | 230Vac/60Hz, full load | |
| 4.0% | 9% | 100-277Vac/60Hz, 70-100% full load |
| Parameter | Min | Typical | Max | Note |
| Output Load Voltage Range | 160Vdc | 260Vdc | ||
| Rated Output Voltage | 200Vdc | 260Vdc | Within the rated output voltage, the max output power satisfies Po=Vo*Io =240W | |
| Rated Output Current | 0.9A | |||
| Current Regulation Range (ADC) | 0.84A | 1.2A | ||
| Max No-load Input Voltage | 320V | |||
| Efficiency@120Vac | 93.77% | 93.85% | Output 0.9A | |
| Efficiency@230Vac | 95.39% | 95.73% | Output 0.9A | |
| Efficiency@277Vac | 95.54% | 96.20% | Output 0.9A | |
| Current Accuracy | -5% | +5% | ||
| Output Current Ripple (PK-AV) | 5% | 10% | Full load | |
| Starting Current Overshoot | 10% | Full load | ||
| Boot Time | 0.38S | 108V full load | ||
| 0.19S | 277V full load | |||
| Linear Adjustment Rate | -2% | +2% | Full load | |
| Load Adjustment Rate | -2% | +2% | ||
| Temperature Coefficient | 0.03%/℃ | +0.03/℃ | Shell temperature : 0℃ ~90℃ | |
| Over Temperature Protection | TC>110℃, power drops by about 35% | |||
| Short Circuit Protection | 0.7W | Long-term short circuit without damage, hiccup mode |
| Parameter | Value | Note | |
| Lifespan | Shell Temperature ≤75℃ | ≥50,000hours | 80% load 120Vac |
| Mean Time Between Failures (MTBF) Estimate | 2025,00hours | ||
| Weight | 940g | ||
| Size | ￠ 127（ 113） *H62mm | ||
| Lightning Strike Criteria | L-N =6KV,LN-E =6KV | ||
| Protection Level | IP65 | ||
Note:
- All performance parameters are typical values measured at 25°C with LED load, unless otherwise noted.
- Test conditions: 230Vac input, full load.
- The performance of the LED driver can be guaranteed within the recommended operating voltage range. The performance of the LED driver needs to be tested with the whole lamp within the output voltage range.
| Parameter | Min | Typical | Max | Note |
| Operating Temperature (Tcase) | -40℃ | 25℃ | +90℃ | |
| Storage Temperature | -40℃ | 25℃ | +90℃ | |
| Operating Humidity | 10%RH | 95%RH | ||
| Storage Humidity | 5%RH | 95%RH | ||
| Altitude | -65m | 4000m |
| Safety Test Projects | Technical Indicator | Note | |
| Insulation Requirement | UL Insulation Requirement | TUV Insulation Requirement | |
| Input to Housing | 1600Vac | 1500Vac | Basic insulation |
| Ground Resistance | ≤0.1Ω | 25A/1min | |
| Leakage Current | ≤0.75mA | 277Vac | |
Note:
- The power supply complies with relevant EMC standards. As part of the terminal equipment system, the power supply needs to be reconfirmed in conjunction with the entire system.
- During the withstand voltage test, please short-circuit LN, the positive and negative output lines, and the positive and negative dimming lines.
- The built-in lightning arrester must be disconnected during the CCC withstand voltage test. According to Section 10.2 of IEC 60598-1:2014, the discharge tube can be disconnected for testing if "built-in lightning arrester" is marked on the nameplate.

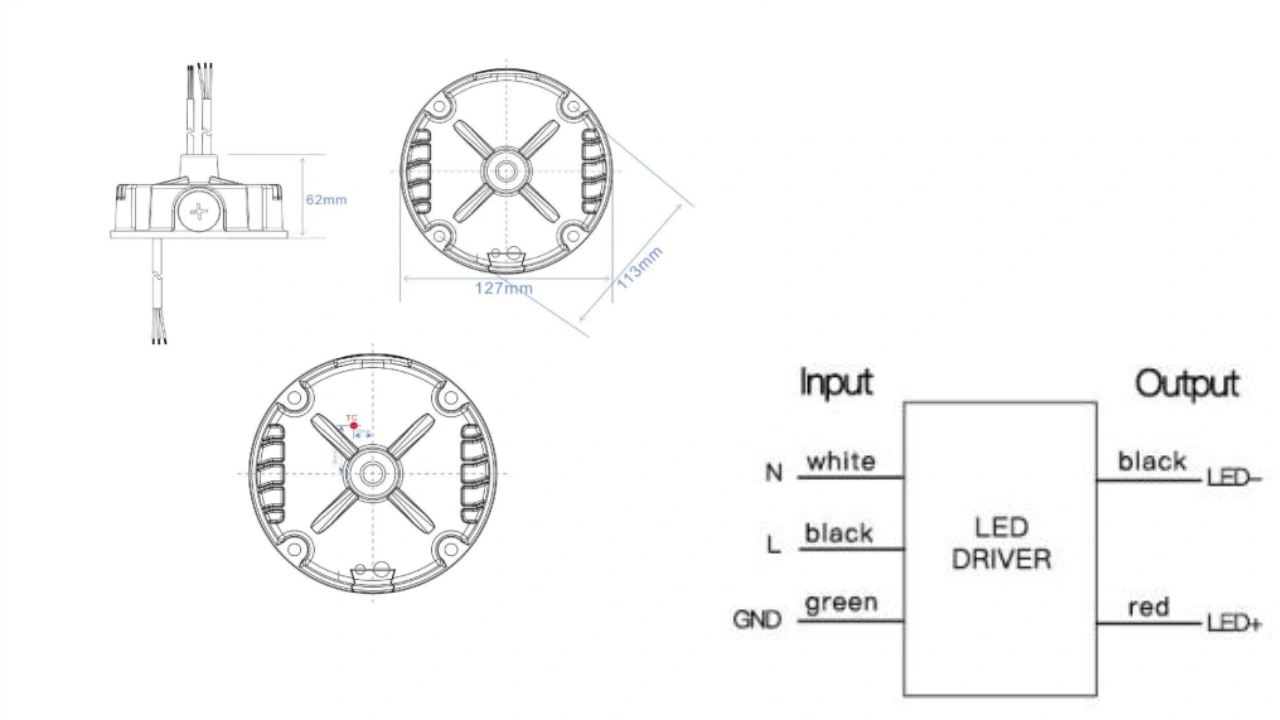

Dimensions
- AC input line (exposed length 300±10mm)
Outer diameter 7.8mm, inner diameter 2.8mm, N white, L black, G green
- DC output line (exposed length 200±10mm)
Outer diameter 7.6mm, inner diameter 2.8mm, LED+ red, LED- black
Characteristic Curve

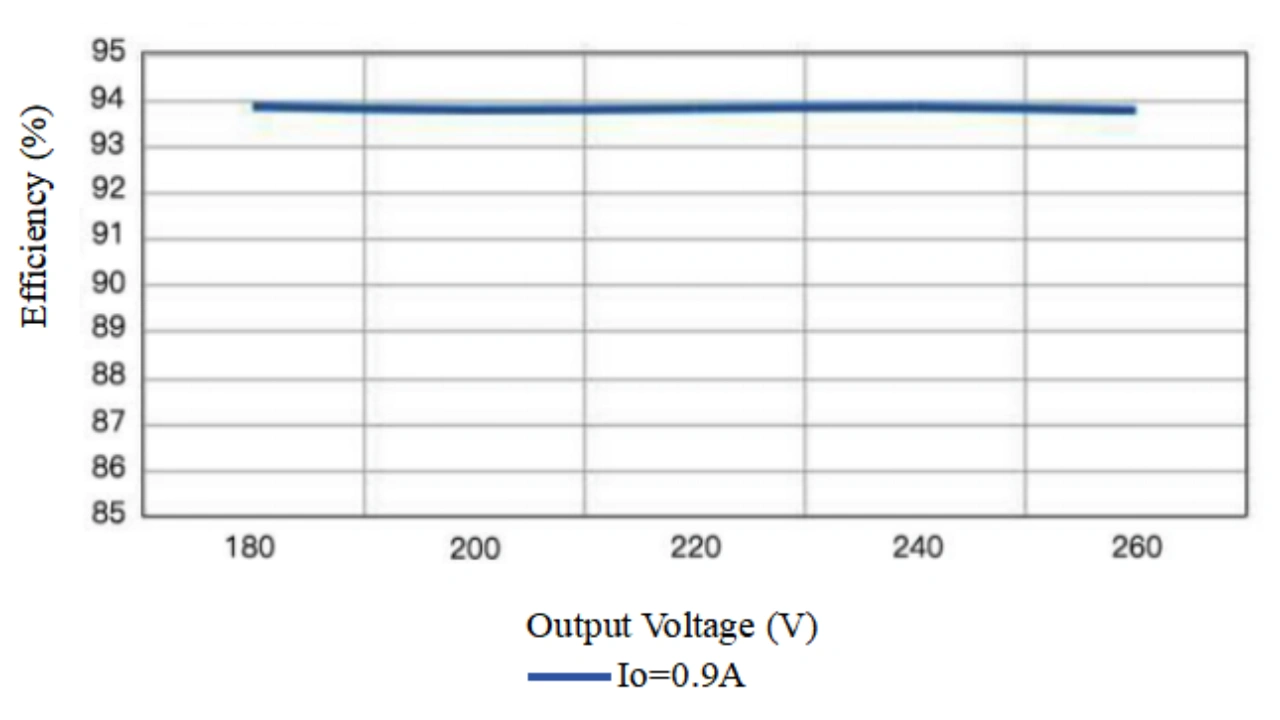

Efficiency Vs. Output voltage (Vin=120Vac)

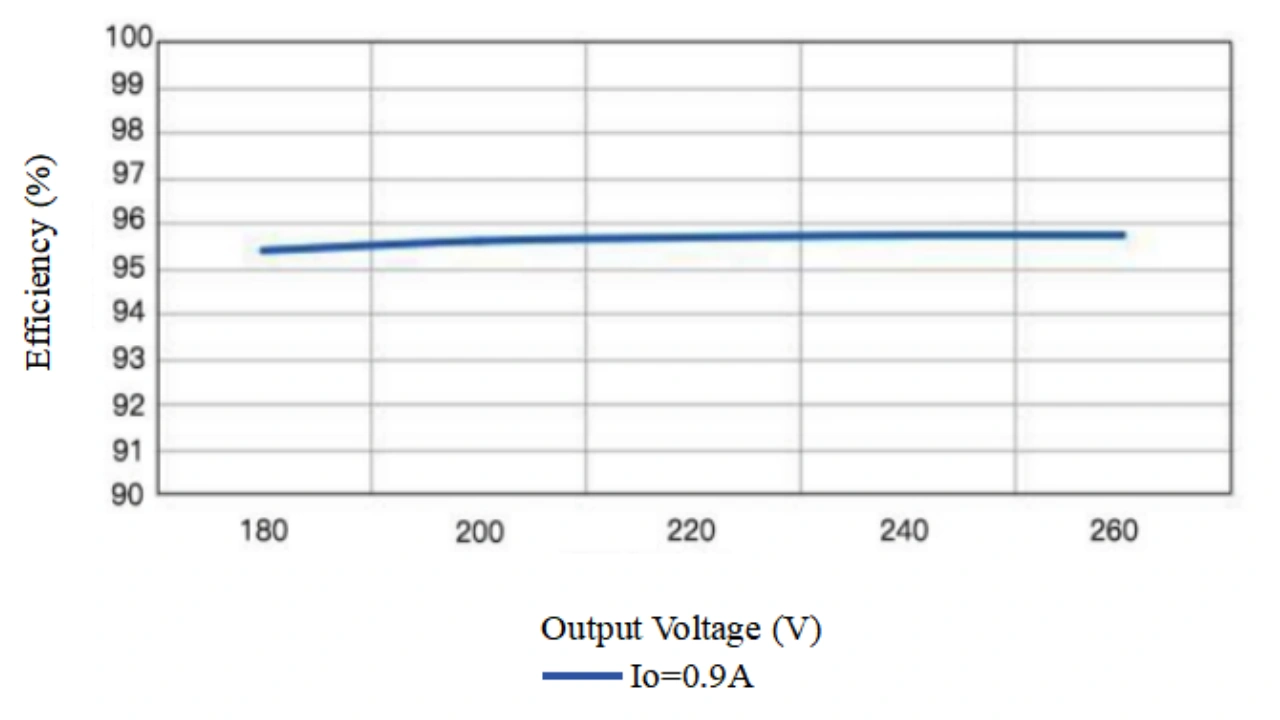

Efficiency Vs. Output voltage (Vin=230Vac)

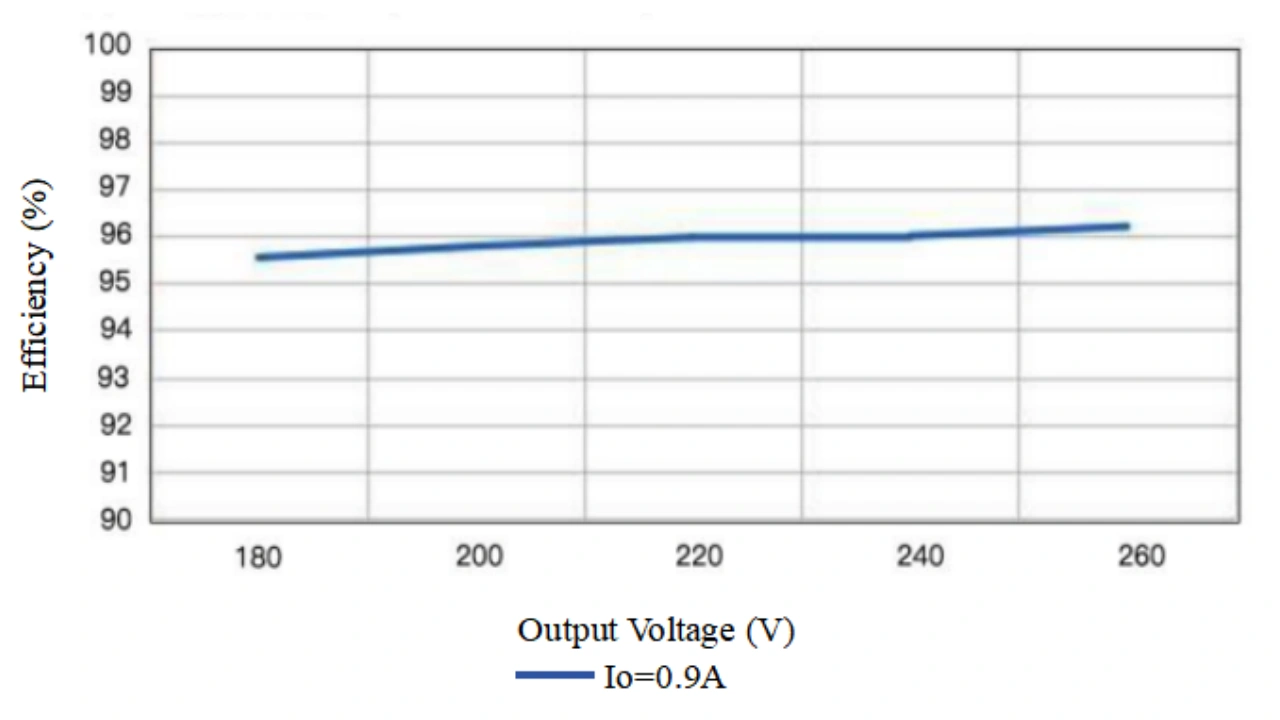

Efficiency Vs. Output voltage (Vin=277Vac)

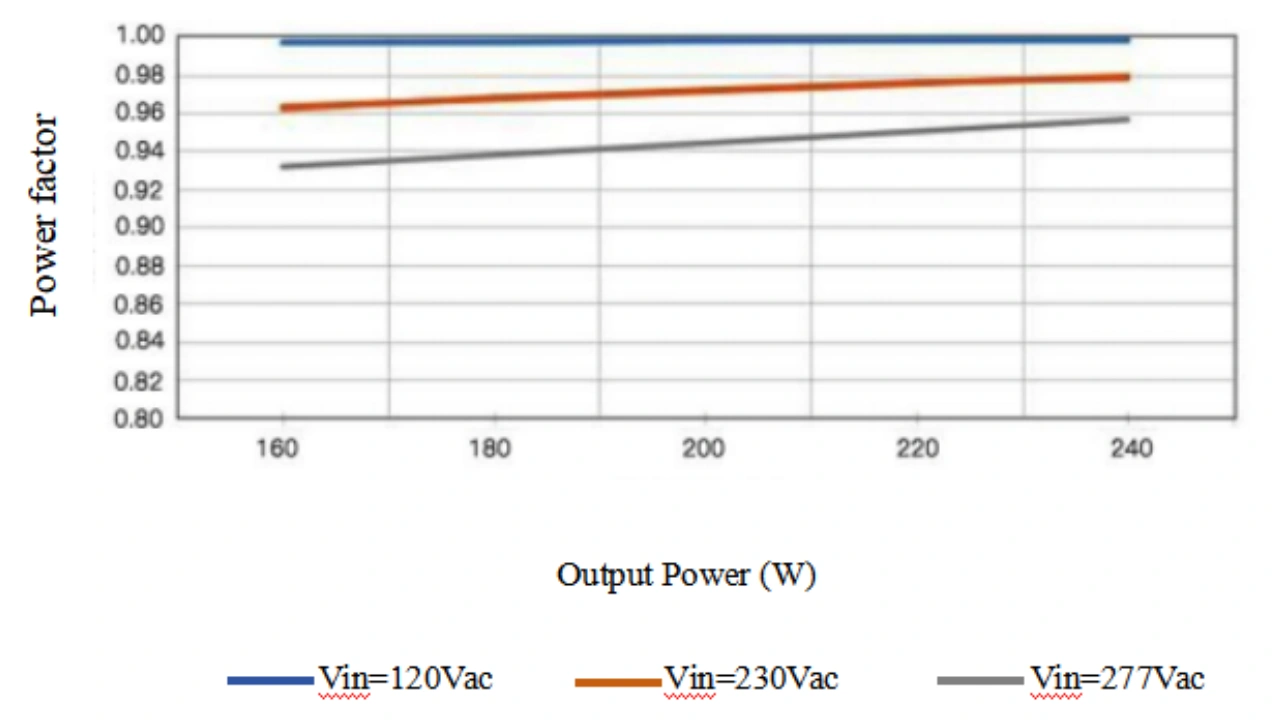

Power factor Vs. Output power

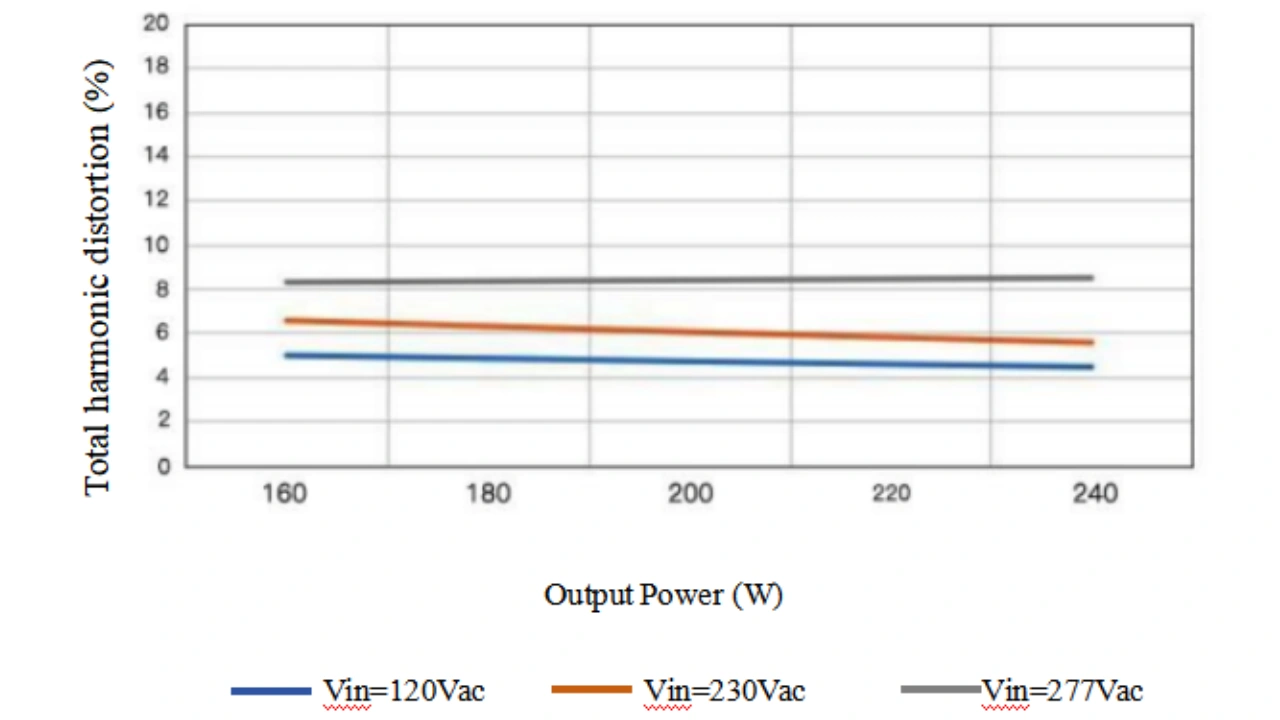

Total harmonic distortion vs. Output power

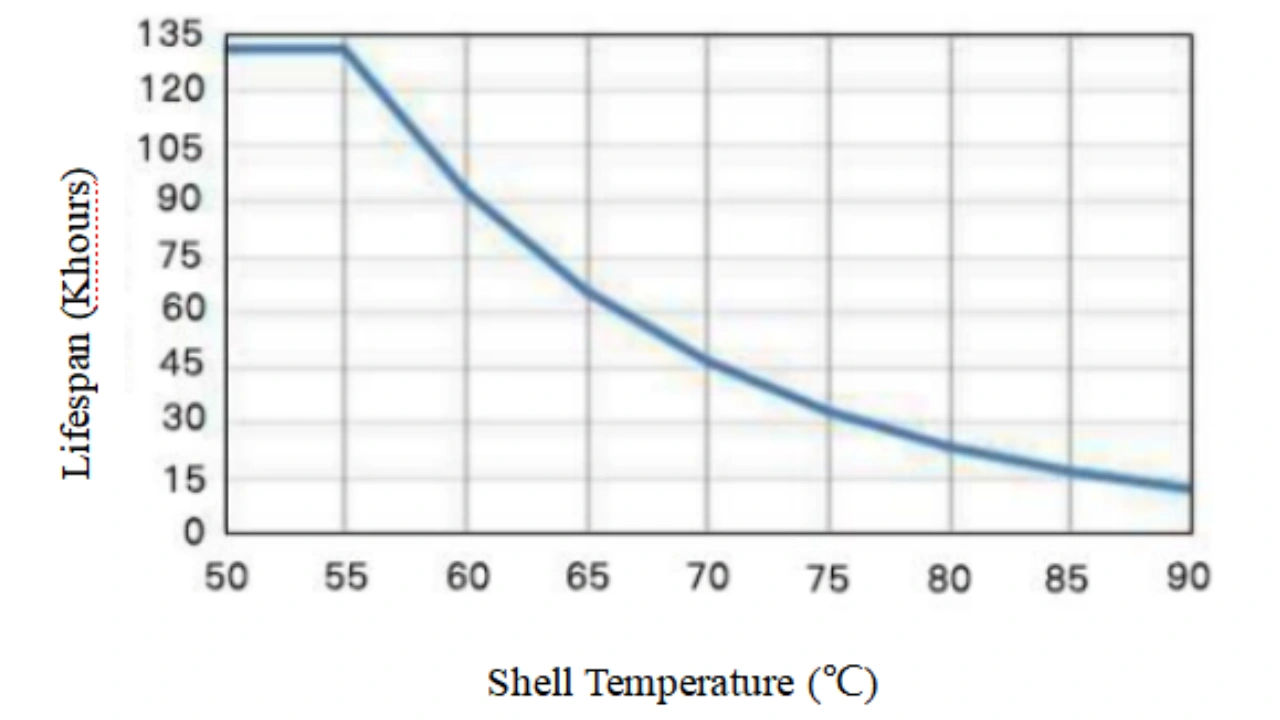

Lifespan vs. Shell temperature
You Might Also Like
FAQ
1. What is the UFO Smart LED Driver + Lamp used for?
The UFO Smart LED Driver + Lamp is designed for industrial, commercial, and smart city lighting applications, providing high-efficiency LED illumination with intelligent control features for modern lighting systems.
