As urban areas continue moving toward intelligent infrastructure, PLC (Power Line Communication) street lighting systems have become a core technology for municipalities and lighting integrators seeking reliability, efficiency, and seamless remote control. By transmitting data over existing power lines, PLC eliminates the need for additional communication cables or wireless deployment, making it one of the most stable and cost-effective solutions for modern street lighting networks.
1. What Is a PLC Street Lighting System?
A PLC street lighting system uses the AC power grid as the medium to transmit control and monitoring data between a central gateway and distributed luminaires. Since electricity lines already exist at every pole, PLC communication allows cities to upgrade traditional street lights into intelligent, bi-directional, remotely manageable lighting nodes without changing power infrastructure.
This communication method is known for being:
- Stable and not affected by weather
- Highly resistant to RF interference
- Long-distance and wide-coverage ready
- Suitable for both retrofit and new installations

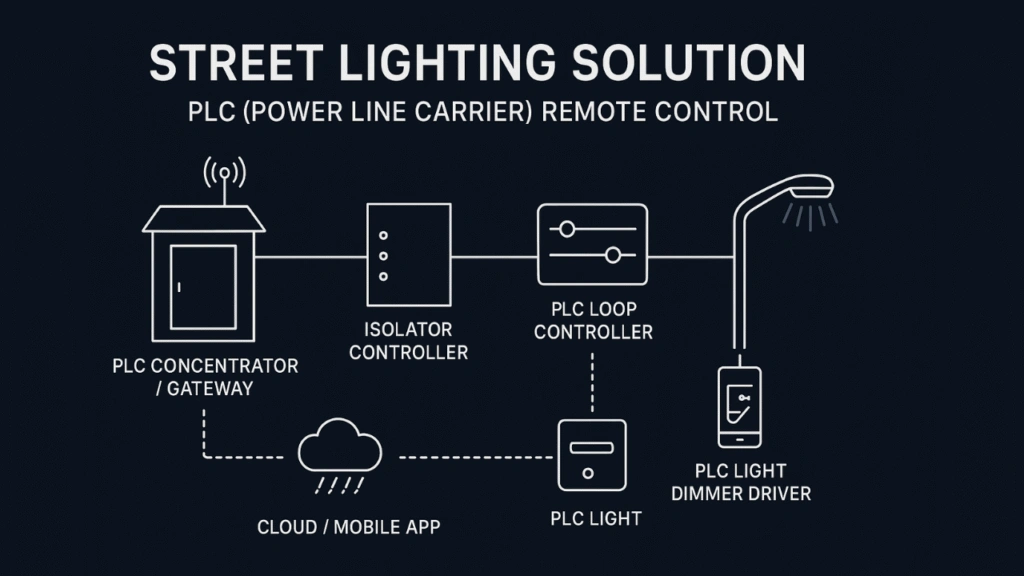

2. Complete System Architecture
A modern PLC street lighting network typically includes the following components:
2.1 PLC Concentrator / Gateway
- Installed in distribution boxes or control cabinets
- Collects and sends commands to all lighting controllers
- Connects to cloud platforms via 4G/5G/Ethernet
- Supports batch control, scheduling, dimming and alarm reporting
The gateway is the “brain” of the PLC lighting system.
2.2 PLC Isolator Controller
- Isolates high-voltage segments
- Strengthens communication quality in complex networks
- Provides branch-level switching and protection
- Ensures stable data transmission even on long power lines
This device is essential for large installations such as highways or industrial parks.
2.3 PLC Loop Controller
- Controls and monitors lighting circuits in loops or zones
- Supports dimming strategies (0–100%)
- Detects current, voltage, leakage, overload, and power consumption
- Automatically reports faults to the cloud platform
Loop controllers help achieve accurate zone management.
2.4 PLC Light Dimmer Driver
Each luminaire is equipped with a PLC dimmer driver or built-in PLC module.
Functions include:
- Individual lamp ON/OFF switching
- Stepless dimming (1%–100%)
- Energy consumption reporting
- Real-time status feedback
- Driver fault alarm, surge record, power analysis
This ensures every lamp becomes an intelligent IoT node.
2.5 Cloud Management Platform & Mobile App
- Remote control of each light
- Real-time monitoring of operation and faults
- Customizable dimming schedules and energy policies
- GIS map visualization for easy maintenance
- Data analytics for energy saving and life cycle prediction
PLC integrates perfectly into smart-city platforms with API/SDK support.
3. How the PLC Lighting System Works
- The central gateway sends a command (such as turning lights ON, dimming to 50%, or running diagnostics).
- The signal is transmitted through the power lines to isolators, loop controllers, and lamp controllers.
- Each PLC driver or module receives the command and performs actions instantly.
- Status data (power, temperature, faults, energy usage) is sent back through the same power line to the gateway.
- The gateway uploads all data to the cloud platform for remote management.
This closed-loop communication ensures every lamp remains manageable, traceable, and maintainable.
4. Key Advantages of PLC Street Lighting
4.1 No New Communication Wires
Utilizes existing AC power lines → significantly reduces installation cost and time.
4.2 High Stability and Interference Resistance
Unlike wireless signals affected by weather or obstacles, PLC communication remains stable under:
- Heavy rain
- Urban interference
- Long-distance transmission
4.3 Long-Distance Coverage
PLC can reach up to several kilometers through transformers with isolators and gateways.
4.4 Reliable Data Reporting
Each lamp provides real-time data:
- Power consumption
- Voltage/current
- Driver failures
- Sensor inputs
- Historical performance
4.5 Flexible Remote Control
- Individual or group dimming
- Scheduled lighting
- Emergency lighting
- Adaptive brightness based on traffic or weather
4.6 Ideal for Retrofitting
Old street lights can be upgraded simply by replacing the driver or adding a PLC module.
5. Typical Applications
PLC street lighting is widely used in:
- Urban streets and highways
- Industrial parks
- University and corporate campuses
- Bridges and tunnels
- Smart parking areas
- Ports and logistics zones
- Residential communities
- Energy-efficient renovation projects
Its reliability also makes PLC suitable for harsh or wet environments.
6. Why Choose PLC for Smart Street Lighting?
Compared with wireless solutions such as LoRa, Zigbee, or NB-IoT, PLC offers:
| Feature | PLC | Wireless |
|---|---|---|
| Communication Stability | ★★★★★ | ★★★ |
| Infrastructure Required | None (uses AC line) | Need signal coverage |
| Real-Time Response | Fast | Medium |
| Upgrade Cost | Low | Medium/High |
| Interference Impact | Very low | Medium/High |
This makes PLC extremely valuable for city-wide lighting projects requiring accuracy and high reliability.
7. Conclusion
A PLC street lighting solution provides a robust, scalable, and cost-effective communication network for smart cities. With a full ecosystem of PLC gateways, isolator controllers, loop controllers, dimmer drivers, and cloud management platforms, municipalities can achieve complete lighting automation, energy optimization, and intelligent fault management.
Whether upgrading traditional systems or deploying new smart lighting infrastructure, PLC technology remains one of the most dependable choices for long-term urban development.
