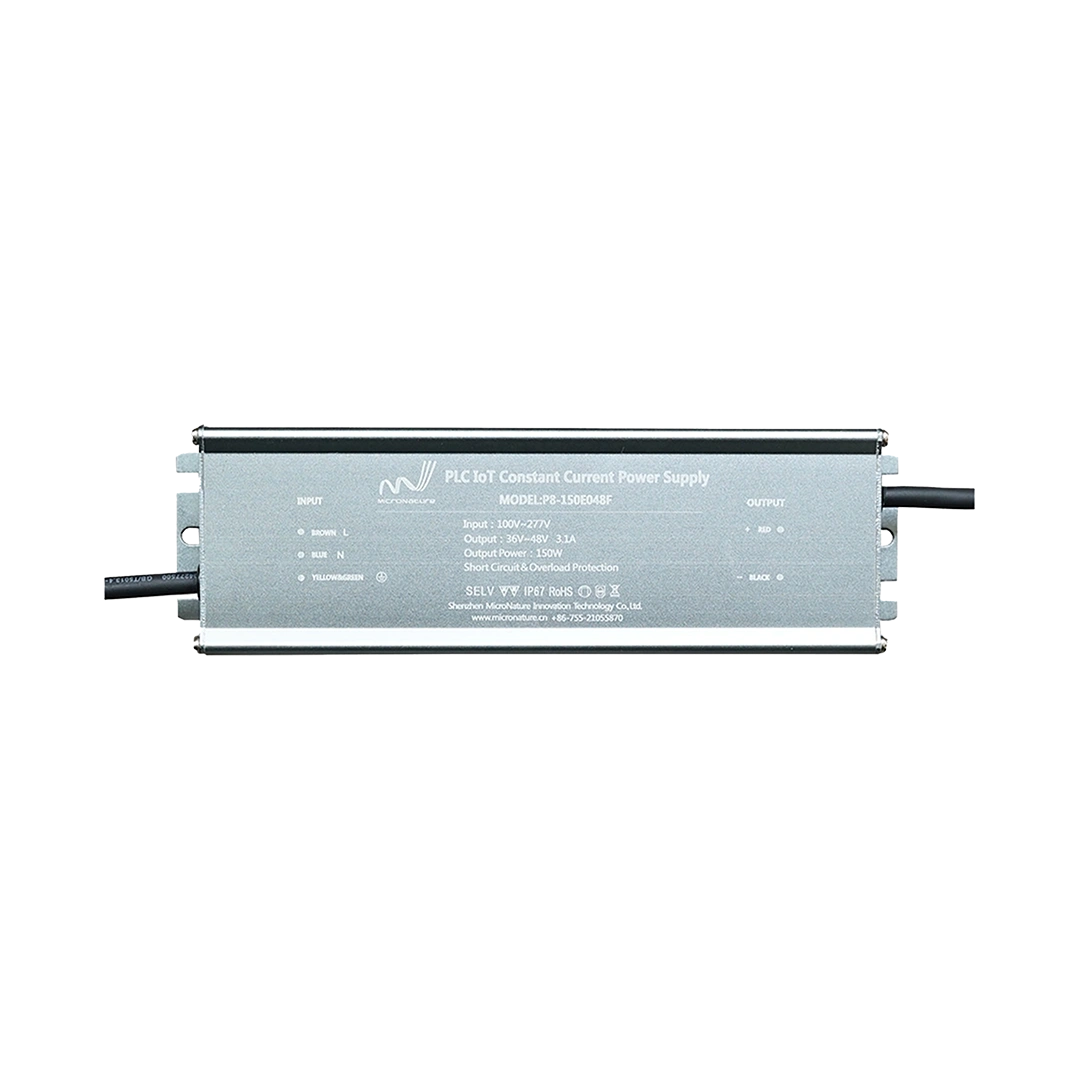

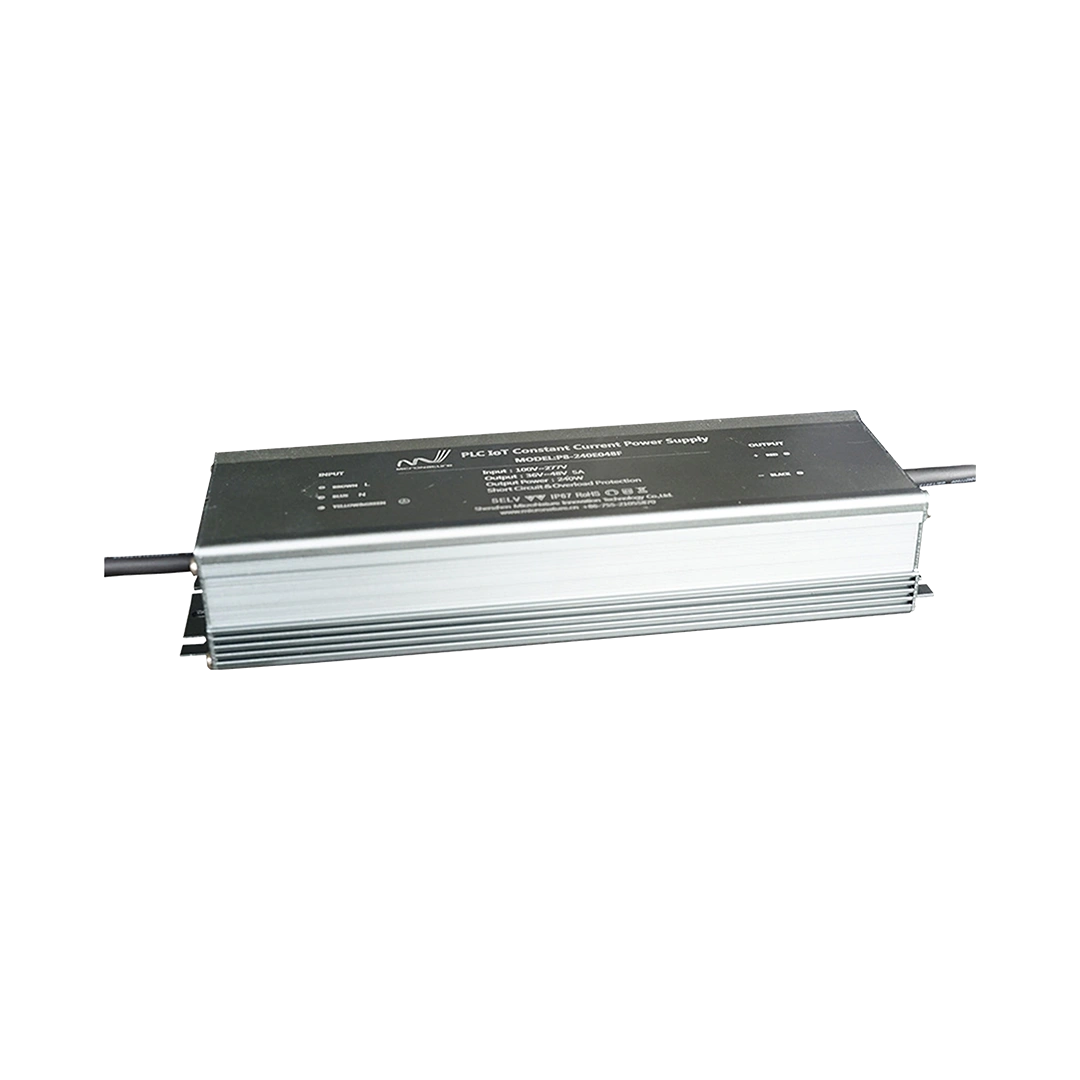

AC Led Dimmable Driver
Intelligent AC/DC Dimming Power Supply with PLC-IoT Cloud Control
The AC/DC Intelligent Dimming Power Supply is an advanced lighting control solution that combines PLC-IoT (Power Line Carrier Internet of Things) communication technology with a powerful SaaS cloud management platform. This innovative design enables fast networking without extra wiring, ensuring a long communication range, high stability, and easy system maintenance.
By integrating big data collection, real-time uploading, and intelligent analysis, the system supports remote monitoring, management, and maintenance of lighting and electrical equipment through the cloud. This smart power supply solution helps businesses improve energy efficiency, reduce electricity costs, and minimize manual maintenance.
Ideal for smart lighting, industrial automation, building management, and IoT-based energy control systems, this product brings high efficiency, intelligence, and cost-effective performance to modern power management.
Product Advantage
- Integrated single-lamp controller and drive power supply, compact structure, easy to install.
- Latest PLC-IoT communication technology, no additional wiring required.
- Adopts constant current output mode.
- Integrates high-precision power metering functions, capable of monitoring input voltage, current, power factor, input power, active power and power consumption, and uploading to the platform.
- Comprehensive protection features including input undervoltage, output overvoltage, output short-circuit and over-temperature protection.
- Based on SaaS cloud platform, it realizes the functions of GIS map management, remote real-time control, real-time data collection, big data statistical analysis, strategy timing control and failure warning.
- P8-240E048F
- P8-200E048F
- P8-150E048F
- P8-120E048F
- P8-100E048F
- P8-50E048F
- P8-30E048F
- P8-20E048F
Parameter
Value
Unit
Operating Temperature
-40~+60
℃
Operating Humidity
20~90RH
/
Storage
-40~+85/10-95%RH
℃
Temperature Coefficient
±0.03%/℃(0~55℃)
℃
Seismic Capacity
10~500Hz, 2G 10 min/cycle, X, Y, Z lines every 60 minutes
/
Protection Level
IP67
/
Parameter
Value
Unit
Output Current
5000
mA
Constant Current Accuracy
±5
%
Output Voltage
36~48
V
Output Power
240
W
No-Load Voltage
58
V
Parameter
Value
Unit
Input Voltage
100~277
V
100
110
120
150
180
200
220
230
240
265
277
V
Input Current
2.736
2.511
2.341
1.806
1.527
1.341
1.213
1.190
1.153
1.052
0.979
A
Frequency
47~63
Hz
Power Factor
＞0.95
/
Efficiency
≥88% (92% typical)
/
Parameter
Value
Unit
Operating Temperature
-40~+60
℃
Operating Humidity
20~90RH
/
Storage
-40~+85/10-95%RH
℃
Temperature Coefficient
±0.03%/℃(0~55℃)
℃
Seismic Capacity
10~500Hz, 2G 10 min/cycle, X, Y, Z lines every 60 minutes
/
Protection Level
IP67
/
Parameter
Value
Unit
Output Current
4160
mA
Constant Current Accuracy
±5
%
Output Voltage
36~48
V
Output Power
200
W
No-Load Voltage
58
V
Parameter
Value
Unit
Input Voltage
100~277
V
100
110
120
150
180
200
220
230
240
265
277
V
Input Current
2.394
2.099
1.897
1.506
1.236
1.111
0.995
0.955
0.923
0.843
0.812
A
Frequency
47~63
Hz
Power Factor
＞0.95
/
Efficiency
≥88% (92% typical)
/
Parameter
Value
Unit
Operating Temperature
-40~+60
℃
Operating Humidity
20~90RH
/
Storage
-40~+85/10-95%RH
℃
Temperature Coefficient
±0.03%/℃(0~55℃)
℃
Seismic Capacity
10~500Hz, 2G 10 min/cycle, X, Y, Z lines every 60 minutes
/
Protection Level
IP67
/
Parameter
Value
Unit
Output Current
3100
mA
Constant Current Accuracy
±5
%
Output Voltage
36~48
V
Output Power
150
W
No-Load Voltage
58
V
Parameter
Value
Unit
Input Voltage
100~277
V
100
110
120
150
180
200
220
230
240
265
277
V
Input Current
1.663
1.506
1.375
1.097
0.913
0.825
0.754
0.723
0.696
0.636
0.605
A
Frequency
47~63
Hz
Power Factor
＞0.95
/
Efficiency
≥88% (92% typical)
/
Parameter
Value
Unit
Operating Temperature
-40~+60
℃
Operating Humidity
20~90RH
/
Storage
-40~+85/10-95%RH
℃
Temperature Coefficient
±0.03%/℃(0~55℃)
℃
Seismic Capacity
10~500Hz, 2G 10 min/cycle, X, Y, Z lines every 60 minutes
/
Protection Level
IP67
/
Parameter
Value
Unit
Output Current
2500
mA
Constant Current Accuracy
±5
%
Output Voltage
36~48
V
Output Power
120
W
No-Load Voltage
58
V
Parameter
Value
Unit
Input Voltage
100~277
V
100
110
120
150
180
200
220
230
240
265
277
V
Input Current
1.343
1.218
1.112
0.886
0.744
0.672
0.612
0.588
0.567
0.519
0.503
A
Frequency
47~63
Hz
Power Factor
＞0.95
/
Efficiency
≥88% (92% typical)
/
Parameter
Value
Unit
Operating Temperature
-40~+60
℃
Operating Humidity
20~90RH
/
Storage
-40~+85/10-95%RH
℃
Temperature Coefficient
±0.03%/℃(0~55℃)
℃
Seismic Capacity
10~500Hz, 2G 10 min/cycle, X, Y, Z lines every 60 minutes
/
Protection Level
IP67
/
Parameter
Value
Unit
Output Current
2080
mA
Constant Current Accuracy
±5
%
Output Voltage
36~48
V
Output Power
100
W
No-Load Voltage
58
V
Parameter
Value
Unit
Input Voltage
100~277
V
100
110
120
150
180
200
220
230
240
265
277
V
Input Current
1.023
1.036
0.952
0.757
0.629
0.567
0.519
0.498
0.478
0.439
0.419
A
Frequency
47~63
Hz
Power Factor
＞0.95
/
Efficiency
≥88% (92% typical)
/
Parameter
Value
Unit
Operating Temperature
-40~+60
℃
Operating Humidity
20~90RH
/
Storage
-40~+85/10-95%RH
℃
Temperature Coefficient
±0.03%/℃(0~55℃)
℃
Seismic Capacity
10~500Hz, 2G 10 min/cycle, X, Y, Z lines every 60 minutes
/
Protection Level
IP67
/
Parameter
Value
Unit
Output Current
1190
mA
Constant Current Accuracy
±5
%
Output Voltage
27~42
V
Output Power
50
W
No-Load Voltage
52
V
Parameter
Value
Unit
Input Voltage
100~277
V
100
110
120
150
180
200
220
230
240
265
277
V
Input Current
0.464
0.471
0.471
0.388
0.322
0.292
0.27
0.259
0.248
0.227
0.218
A
Frequency
47~63
Hz
Power Factor
＞0.95
/
Efficiency
≥83% (85% typical)
/
Parameter
Value
Unit
Operating Temperature
-40~+60
℃
Operating Humidity
20~90RH
/
Storage
-40~+85/10-95%RH
℃
Temperature Coefficient
±0.03%/℃(0~55℃)
℃
Seismic Capacity
10~500Hz, 2G 10 min/cycle, X, Y, Z lines every 60 minutes
/
Protection Level
IP67
/
Parameter
Value
Unit
Output Current
710
mA
Constant Current Accuracy
±5
%
Output Voltage
27~42
V
Output Power
30
W
No-Load Voltage
52
V
Parameter
Value
Unit
Input Voltage
100~277
V
100
110
120
150
180
200
220
230
240
265
277
V
Input Current
0.348
0.314
0.286
0.229
0.192
0.174
0.159
0.152
0.146
0.133
0.129
A
Frequency
47~63
Hz
Power Factor
＞0.95
/
Efficiency
≥83% (85% typical)
/
Parameter
Value
Unit
Operating Temperature
-40~+60
℃
Operating Humidity
20~90RH
/
Storage
-40~+85/10-95%RH
℃
Temperature Coefficient
±0.03%/℃(0~55℃)
℃
Seismic Capacity
10~500Hz, 2G 10 min/cycle, X, Y, Z lines every 60 minutes
/
Protection Level
IP67
/
Parameter
Value
Unit
Output Current
476
mA
Constant Current Accuracy
±5
%
Output Voltage
27~42
V
Output Power
20
W
No-Load Voltage
52
V
Parameter
Value
Unit
Input Voltage
100~277
V
100
110
120
150
180
200
220
230
240
265
277
V
Input Current
0.238
0.218
0.201
0.161
0.135
0.122
0.112
0.108
0.104
0.097
0.093
A
Frequency
47~63
Hz
Power Factor
＞0.95
/
Efficiency
≥80% (82% typical)
/

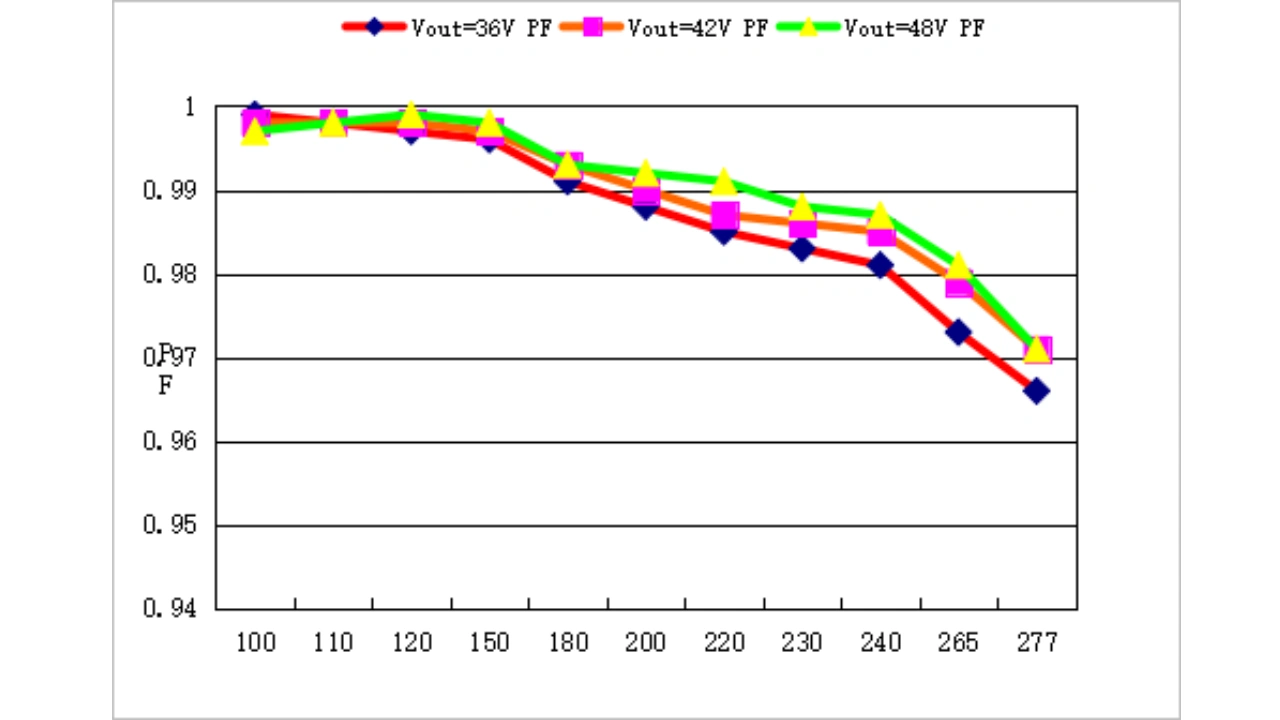

Power Factor Characteristics

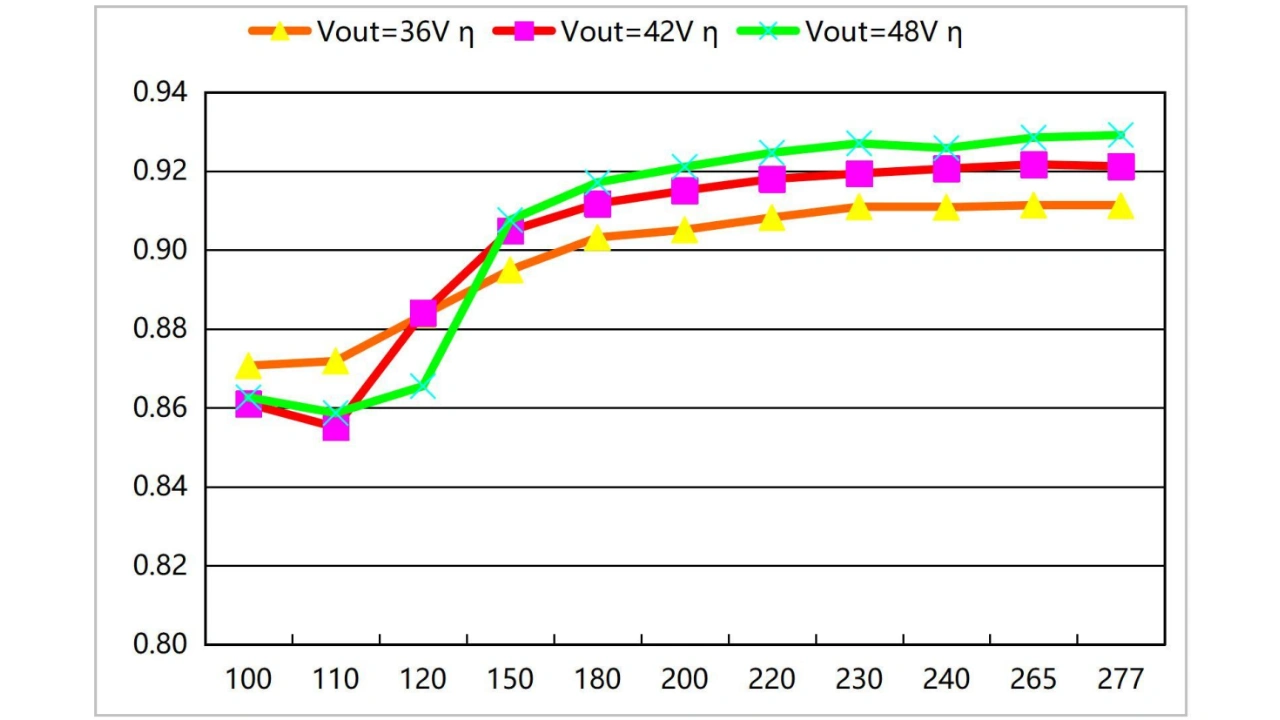

Efficiency & Load
Product Protective Characteristics
| Parameter | Value | Unit |
| Protection Type | Short circuit protection/over voltage protection | / |
| Max Input Voltage | ＜277 | Vac |

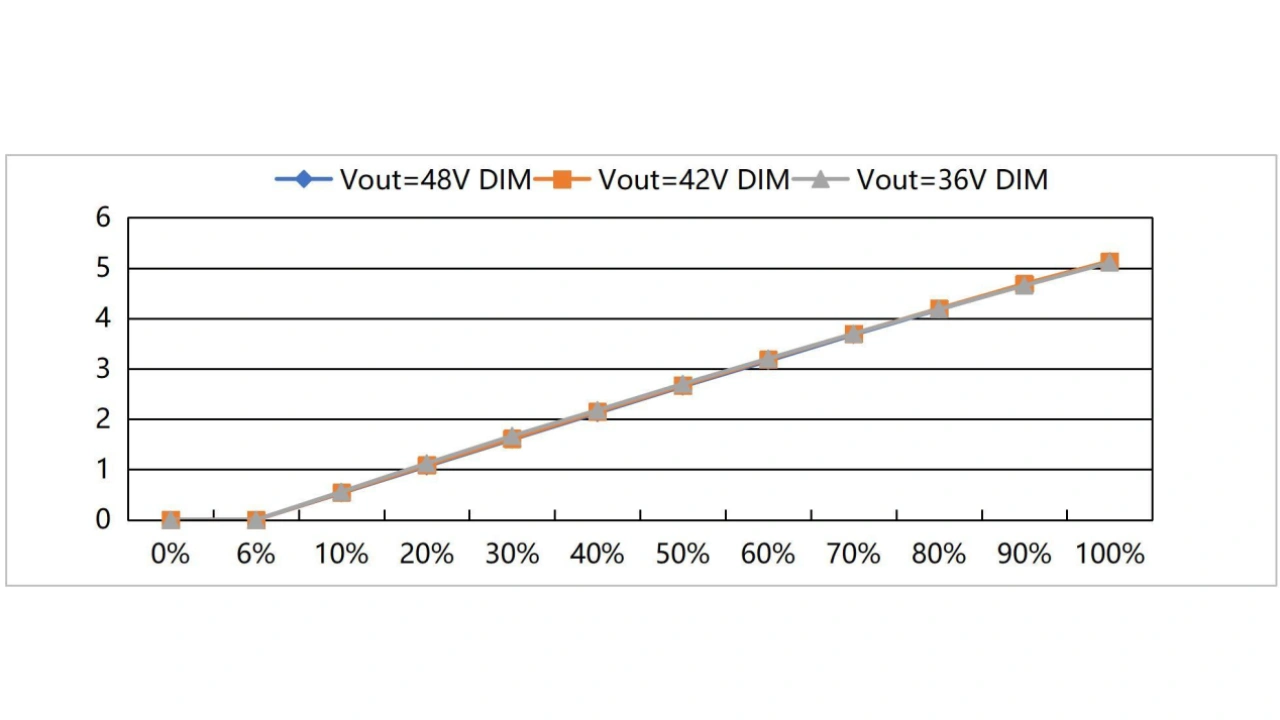

Dimming Curve
Input and Output Wire Definition
| Parameter | Value | Note |
| External Dimension | 255.5(L)*76(W)*45(H) | / |
| Three-core Input Cable | 3-core rubber cable H05RN-F 60245IEC57(YZW) 3×0.75mm² |
Brown (L), Blue (N), Yellow-Green (G) |
| Two-core Output Cable | 2-core rubber cable H05RN-F 60245IEC57(YZW) 2×0.75mm² |
Red (V+), Black (V-) |

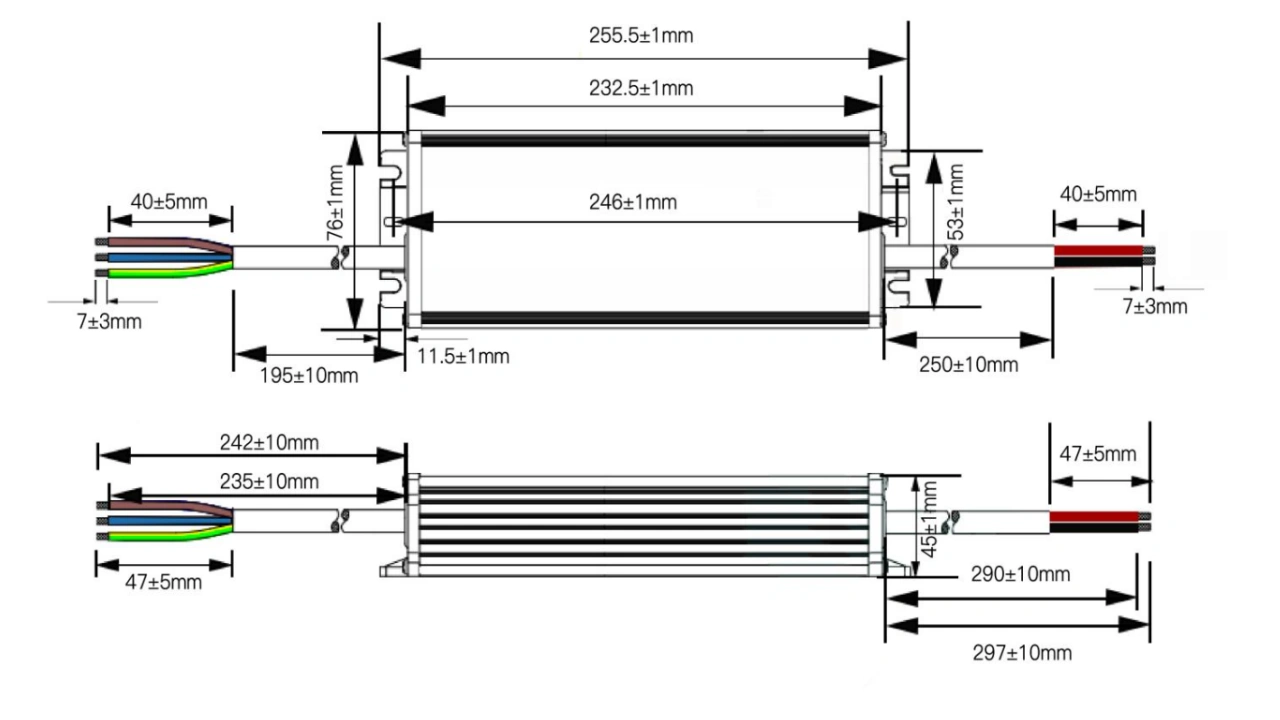

External Dimension
You Might Also Like
FAQ
1. What is a PLC-IoT intelligent dimming power supply?
This power supply combines Power Line Carrier (PLC) communication with IoT and SaaS cloud technology, allowing lighting and electrical devices to communicate directly through existing power lines. It enables remote monitoring, dimming control, and data management without the need for additional communication cables.
